Sony CPD-E530 - 5-2. Picture Tube

NOTE: The components identied by shading and
!
mark are critical for safety.
Replace only with part number specied.
NOTE: Les composants identies per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specie.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]

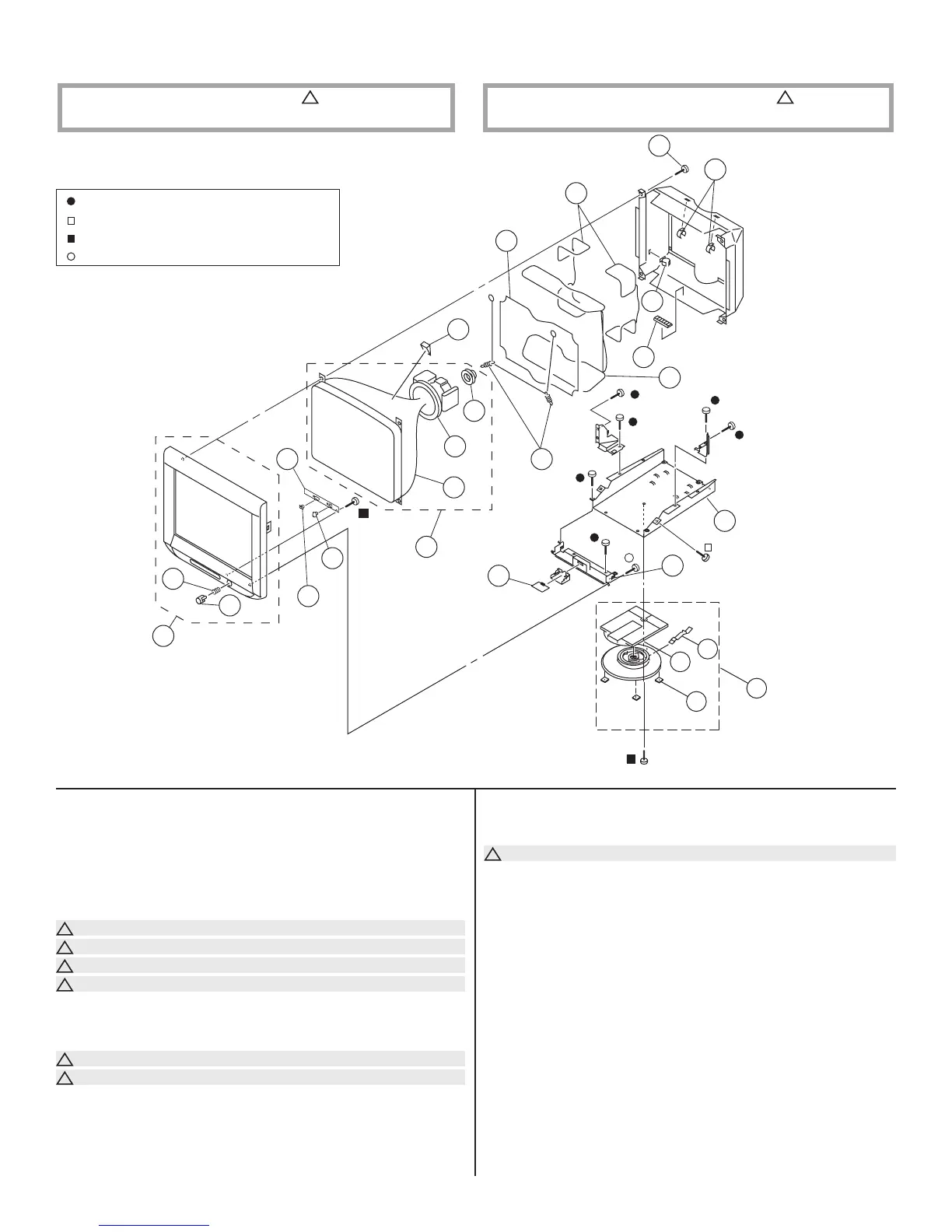

5-2. PICTURE TUBE
51 X-4041-371-1 BEZEL ASSY (52-53)
52 4-081-096-01 SPRING, COMPRESSION
53 4-080-942-01 BUTTON, POWER (21)
54 4-080-246-01 BUTTON, INPUT SELECTION
55 4-080-249-02 JOY STICK
* 56 A-1372-926-A H1 BOARD, MOUNTED
!
57 8-734-046-06 ITC ASSY 21TKD-R2 (58-60)
!
58 8-738-848-05 CRT 21TKD(B COAT)
!
59 8-451-519-11 DY Y21TKN-M
!
60 1-452-923-51 NECK ASSEMBLY
61 2-162-100-31 SPACER, DY
62 4-061-573-11 SPRING, TENSION
!
63 1-419-130-21 COIL, LANDING CORRECTION
!
64 1-419-129-21 COIL, LANDING CORRECTION
65 4-365-808-01 SCREW (5), TAPPING
66 4-041-021-21 HOLDER, DEGAUSS COIL
67 4-071-175-01 HOLDER, DGC
68 4-062-670-01 SPACER, CRT
!
69 1-419-838-11 COIL, DEGAUSSING
70 X-4038-783-1 CHASSIS ASSY, BASE
71 X-4038-604-3 SUPPORT ASSY, CRT SHIELD
72 X-4039-382-1 BASE ASSY, STAND (73-75)
73 4-080-252-03 STOPPER
74 4-080-256-31 SLIDER
* 75 4-060-533-01 CUSHION
76 8-610-158-71 SENSOR, MAGNETIC MIU-221D
51
52
54
55
53
56
57
61
63
69
76
68
67
65
60
59
58
62
64
66
70
71
72
75
73
74
7-685-881-09 SCREW +BVTT 4X8 (S)
4-389-025-01 SCREW (M4) (EXT TOOTH WASHER)
7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT(B)
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
— 34 —
CPD-E530
