Sony CPD-E530 - Section 1: Disassembly; 1-1. Cabinet Removal

— 8 —
CPD-E530
SECTION 1: DISASSEMBLY

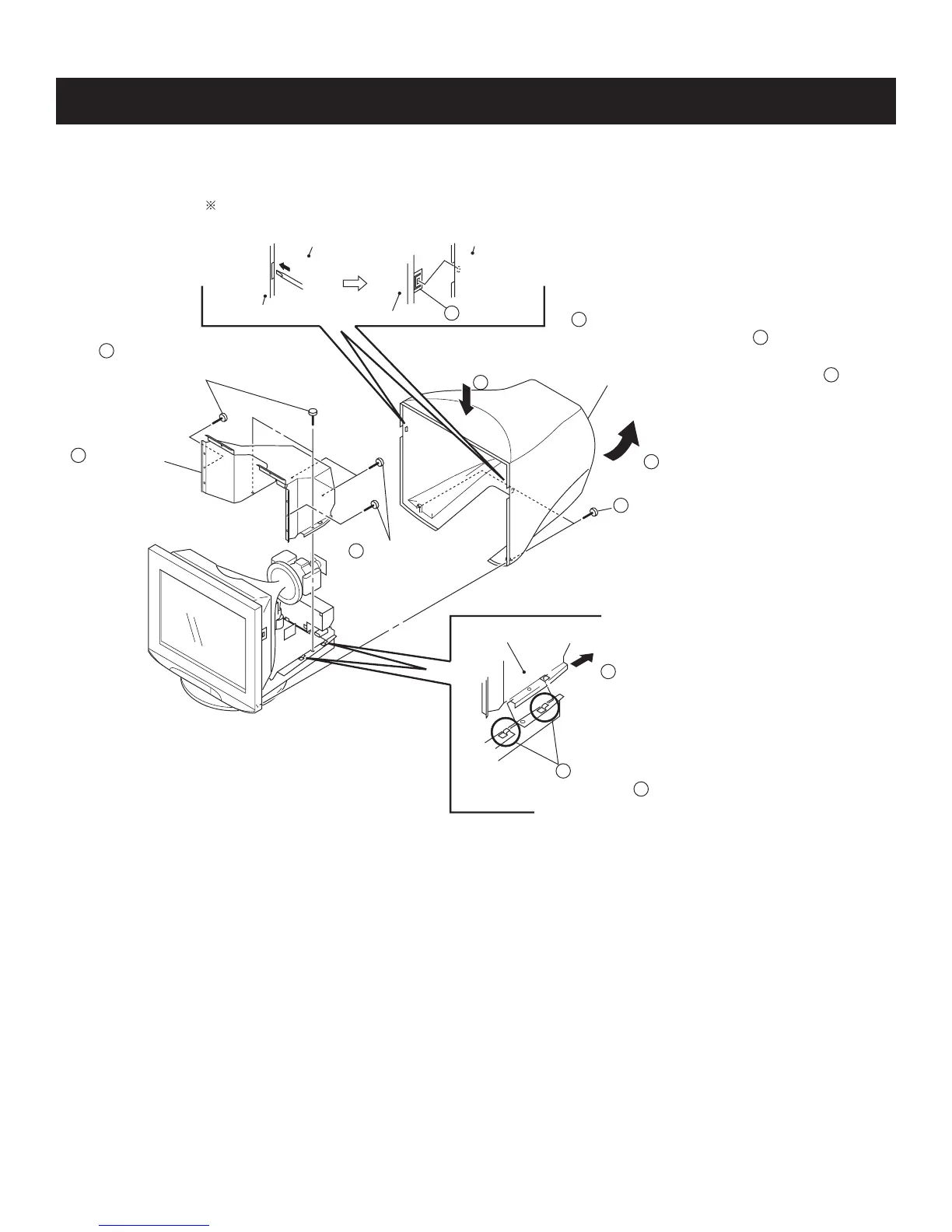

1-1. CABINET REMOVAL
1
Two screws
(+BVTP 4 x 16)
6
Slide the EMI shield in the direction
of arrow and remove four claws.
7
EMI shield
4
Three screws
(+BVTT 4 x 8)
5
Three screws
(+BVTT 4 x 8)
2
Two claws
Bezel assembly
Bezel assembly
EMI shield
Cabinet
Cabinet
Push in the tip of a screwdriver
about 10mm to unlock the claw.
B
A
C
3
Push the upper side of the cabinet
in the direction of arrow , disconnect claws
,
then remove the cabinet
lifting it up in the direction of arrow
.
B
A
C
