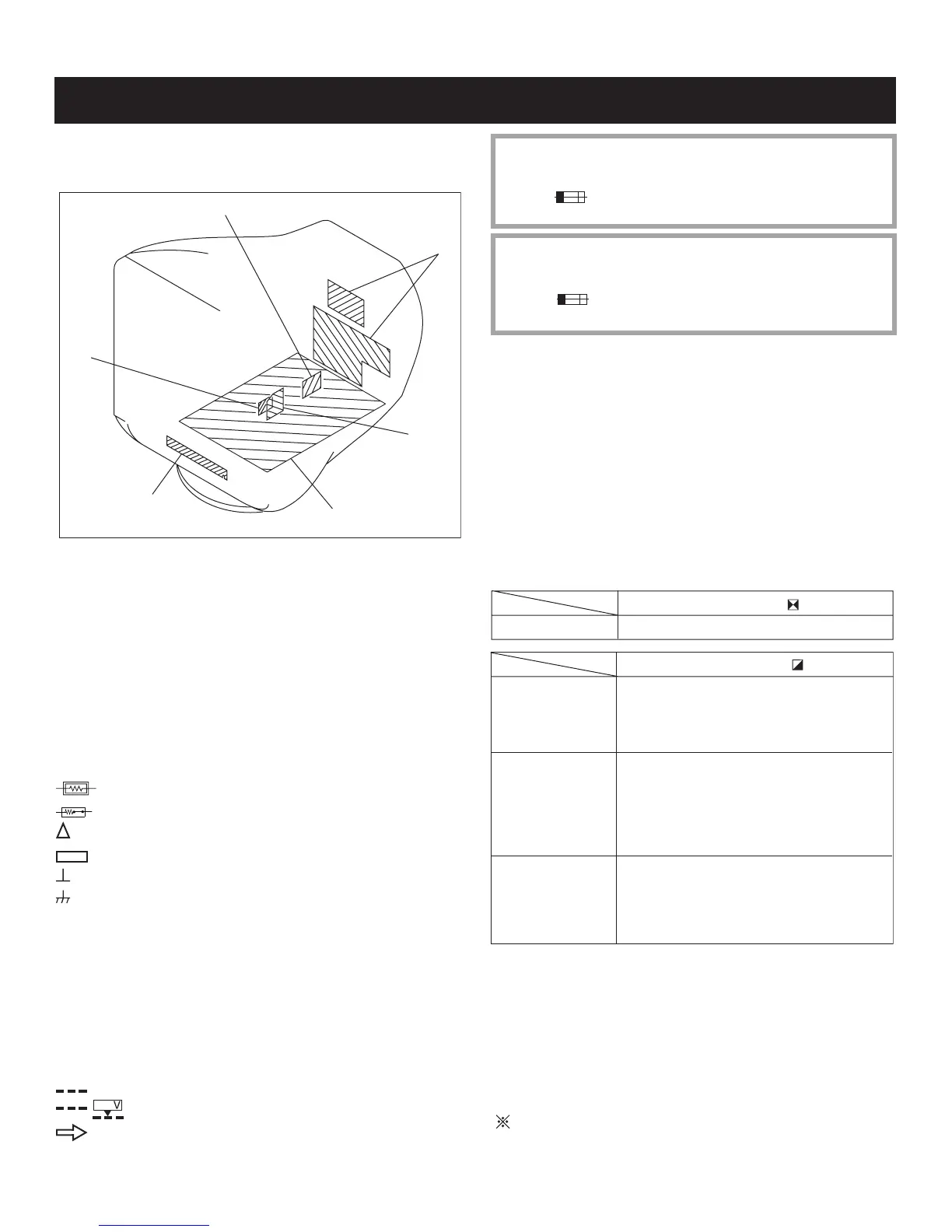

Sony CPD-E530 - Section 4: Diagrams; 4-1. Circuit Boards Location

— 19 —
CPD-E530
RESISTOR
: RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW NONFLAMMABLE WIREWOUND
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
: ADJUSTMENT RESISTOR
COIL
: LF-8L MICRO INDUCTOR
The components identied by shading and ! symbol are critical for safety. Replace
only with part number specied.
The symbol indicates a fast operating fuse and is displayed on the component
side of the board. Replace only with fuse of the same rating as marked.
Les composants identies per un trame et une marque ! sont critiques pour la
securite. Ne les remplacer que par une piece portant le numero specie.
Le symbole indique une fusible a action rapide. Doit etre remplace par une
fusible de meme yaleur, comme maque.
CAPACITOR
: TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
REFERENCE INFORMATION
SECTION 4: DIAGRAMS
4-1. CIRCUIT BOARDS LOCATION
D
H1
A1
L2
DA
N
4-2. PRINTED WIRING BOARD AND
SCHEMATIC DIAGRAM INFORMATION
All capacitors are in µF unless otherwise noted. pF : µµF 50WV or less
are not indicated except for electrolytics and tantalums.
All electrolytics are in 50V unless otherwise specied.
All resistors are in ohms. kΩ=1000Ω, MΩ=1000kΩ
Indication of resistance, which does not have one for rating electrical
power, is as follows: Pitch : 5mm
Rating electrical power :
1
/
4
W
1
/
4
W in resistance,
1
/
10
W and
1
/
8
W in chip resistance.
: nonammable resistor.
: fusible resistor.
: internal component.
: panel designation and adjustment for repair.
: earth ground
: earth-chassis
All variable and adjustable resistors have characteristic curve B, unless
otherwise noted.
Readings are taken with a color-bar signal input.
Readings are taken with a 10MΩ digital multimeter.
Voltages are DC with respect to ground unless otherwise noted.
Voltage variations may be noted due to normal production tolerances.
All voltages are in V.
S : Measurement impossibillity.
: B+line.
: B-line (Actual measured value may be different).
: signal path (RF).
Circled numbers are waveform references.
The components identied by X in this basic schematic diagram
have been carefully factory-selected for each set in order to satisfy
regulations regarding X-ray radiation. Should replacement be necessary,
replace only with the value originally used.
When replacing components identied by Y , make the necessary
adjustments as indicated. If the results do not meet the specied value,
change the component identied by X and repeat the adjustment until
the specied value is achieved.
(Refer to Section 2: Safety Releated Adjustments.)
When replacing the parts listed in the table below, it is important to
perform the related adjustments.
Part Replaced ( )
HV ADJ
RV901
Part Replaced ( )
D Board C925, IC901, R901, R902, R905,
R924, R925, R926, RV901,
T901 (FBT),
• Mounted D Board
HV Regulator
Circuit Check
D Board
C920, C923, D911, D912, R903,
R917, R918, R919, R920, R923,
T901 (FBT)
• Mounted D Board
N Board
IC1001, RB1001
• Mounted N Board
N Board
IC1001, RB1001
• Mounted N Board
HV HOLD
DOWN
Circuit Check
D Board
C930, D917, R921, R932, R933,
R935, T901 (FBT)
• Mounted D Board
Beam Current
Protector
Circuit Check
