4
CX-BK1
SECTION 1
SERVICING NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electro-
static break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emis-
sion, observe from more than 30 cm away from the objective lens.
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
Carry out the “S curve check” in “CD section adjustment” and
check that the S curve waveforms is output three times.

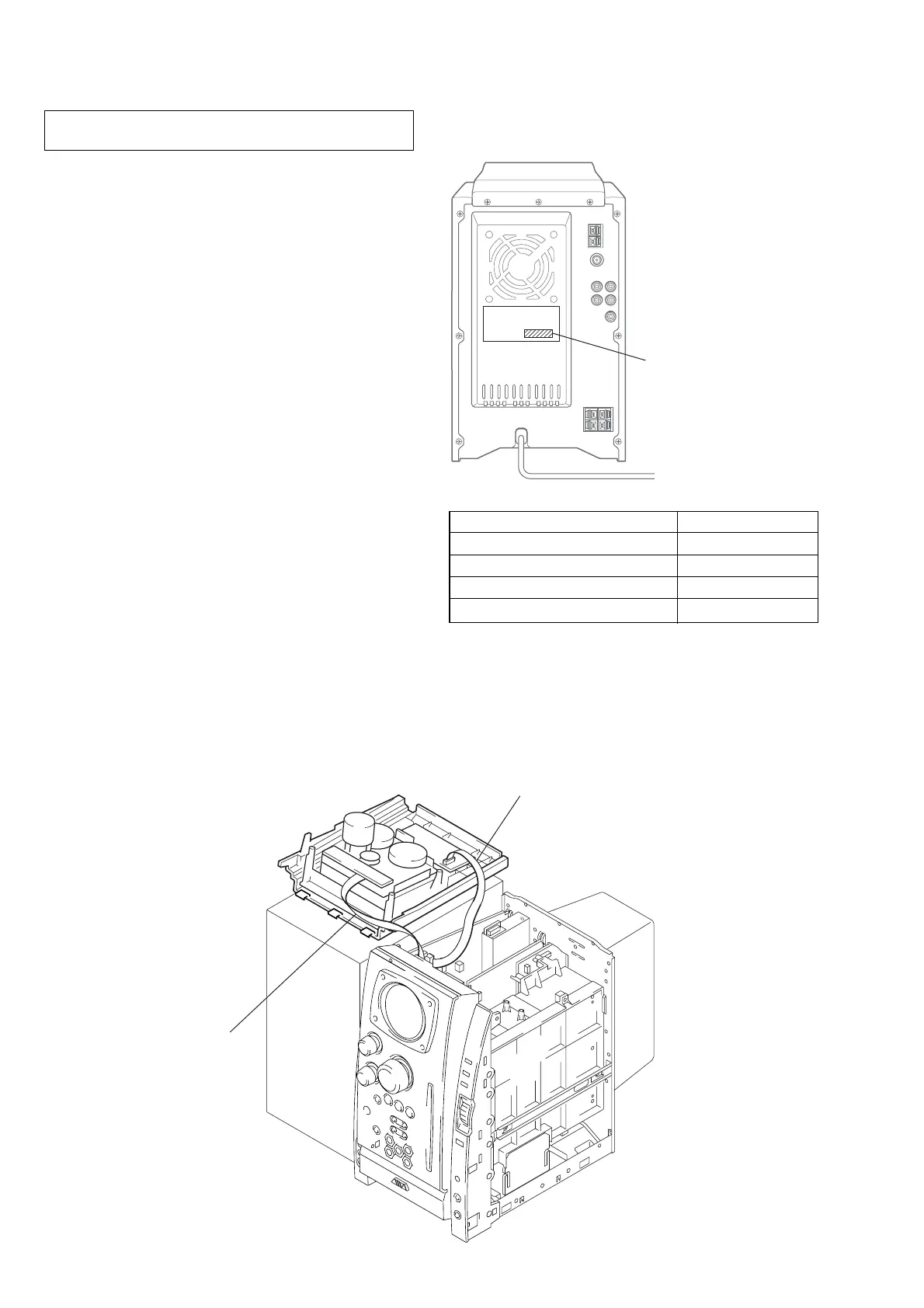

• MODEL IDENTIFICATION
– Rear Cover –
MODEL PART No.
US model 4-245-039-0
[]
Chilean and Peruvian models 4-245-039-1
[]
AEP and UK models 4-245-039-2
[]
Mexican model 4-245-039-3
[]
PART No.
SERVICE POSITION
– Tape mechanism deck (except US) –
Connect the wire (flat type) (8 core)
to the main board (CN903) and
the mechanism deck.
Connect the wire (flat type) (11 core)
to the deck board (CN008) and the main board (CN009).
To Next Page
