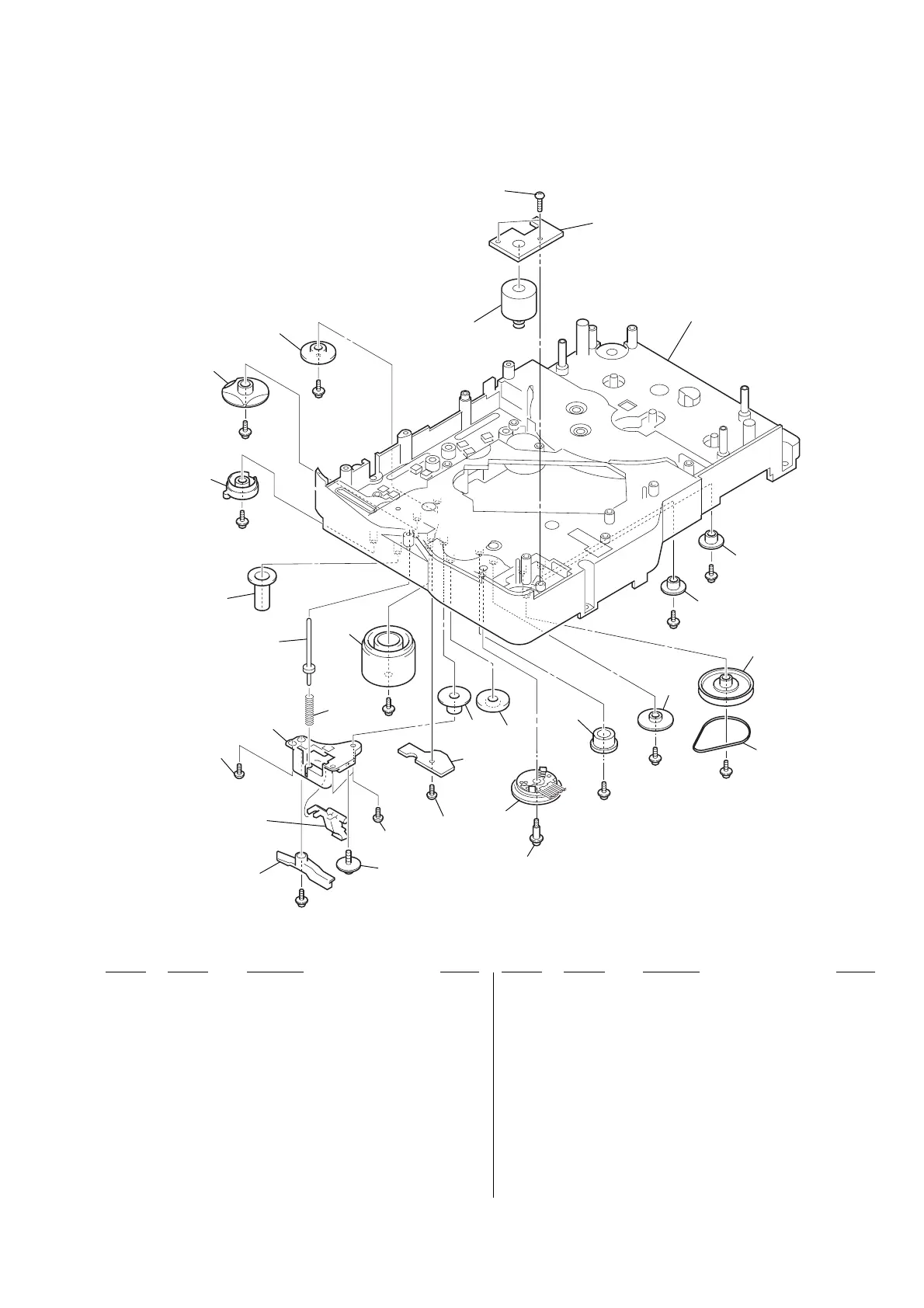

9-13. CD MECHANISM DECK SECTION-6 (CDM69BV-30CBD64NS)
758
759
763
775
751
769
770
764
754
765
753
#4
#4
#4
#4
not
supplied
not supplied
M771
757
762
772
760
752
763
763
771
763
766
767
761
#4
#4
S771
#4
#4
755
#4
755
#4
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
751 4-239-693-02 CAM (GEAR)
752 1-686-723-12 SENSOR BOARD
753 4-239-696-01 GEAR (EJECT LOCK)
754 4-239-695-02 CAM (EJECT LOCK)
755 4-240-019-01 GEAR (MODE 5)
757 4-243-682-01 GEAR (MODE C)
758 4-239-683-01 PULLEY (MODE DECELERATION)
759 4-243-702-01 BELT (MODE V)
760 4-243-683-01 GEAR (MODE D)
761 4-239-618-01 SCREW (+PWH,2X6), STEP TAPPING
762 4-243-681-01 GEAR (MODE B)
763 4-951-620-01 SCREW (2.6X8), +BVTP
764 4-239-692-02 CAM (BU U/D)
765 4-239-694-01 GEAR (MODE CAM)
766 4-241-731-01 SHUTTER (A), LEVER
767 4-241-732-01 SHUTTER (B), LEVER
769 4-241-734-01 SHAFT (SHUTTER)
770 4-241-735-01 SPRING (SHUTTER), COMPRESSION
771 4-685-672-01 SCREW (DIA. 12), FLOATING
772 4-243-680-01 GEAR (MODE A)
775 1-686-724-12 MODE MOTOR BOARD
M771 A-4735-953-A MOTOR ASSY (MODE)
S771 1-477-300-11 ENCODER, ROTARY (MODE)
#4 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
