79
CX-BK1
SECTION 9
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
•Tape deck is not loaded in US model.
The shape of the top panel shown in “EX-
PLODED VIEWS” is different from the ac-
tual shape.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color

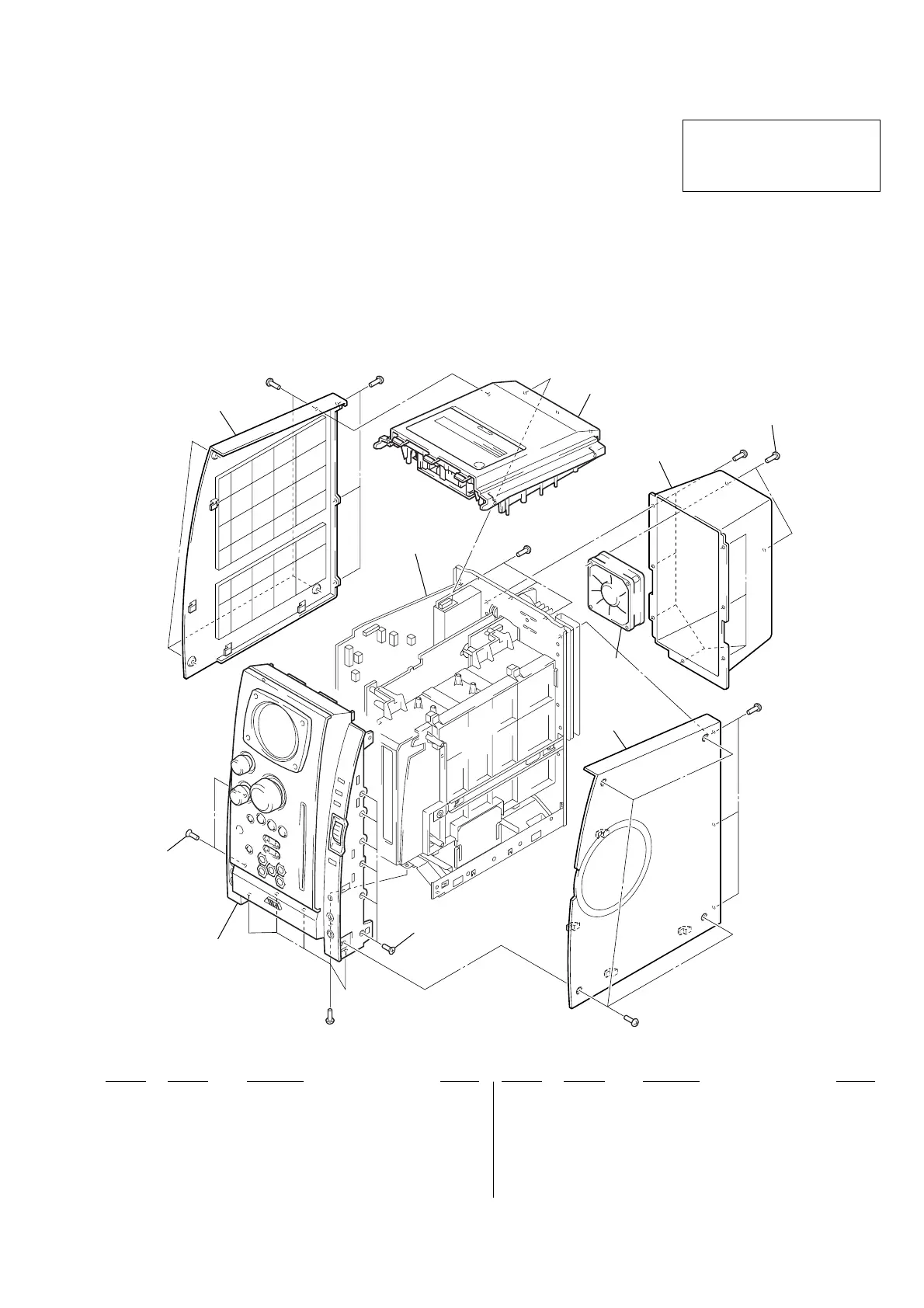

9-1. PANEL SECTION
•Abbreviation
E51 : Chilean and Peruvian models
MX : Mexican model
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-245-038-01 PANEL, RIGHT (US)
1 4-245-038-11 PANEL, RIGHT (AEP, UK, E51, MX)
2 4-242-531-01 QT2+3-10 TYPE2 IT-3
3 4-245-073-01 PANEL (LEFT) (US)
3 4-245-073-11 PANEL (LEFT) (AEP, UK, E51, MX)
4 4-245-039-01 COVER, REAR (US)
4 4-245-039-11 COVER, REAR (E51)
4 4-245-039-21 COVER, REAR (AEP, UK)
4 4-245-039-31 COVER, REAR (MX)
5 4-951-620-01 SCREW (2.6X8), +BVTP
M301 1-763-072-11 FAN, DC
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
2
2
1
3
4
5
top panel block
chassis block-1
#1
#1
#1
#1
#1
#1
#1
M301
front panel block-1
To Next Page
