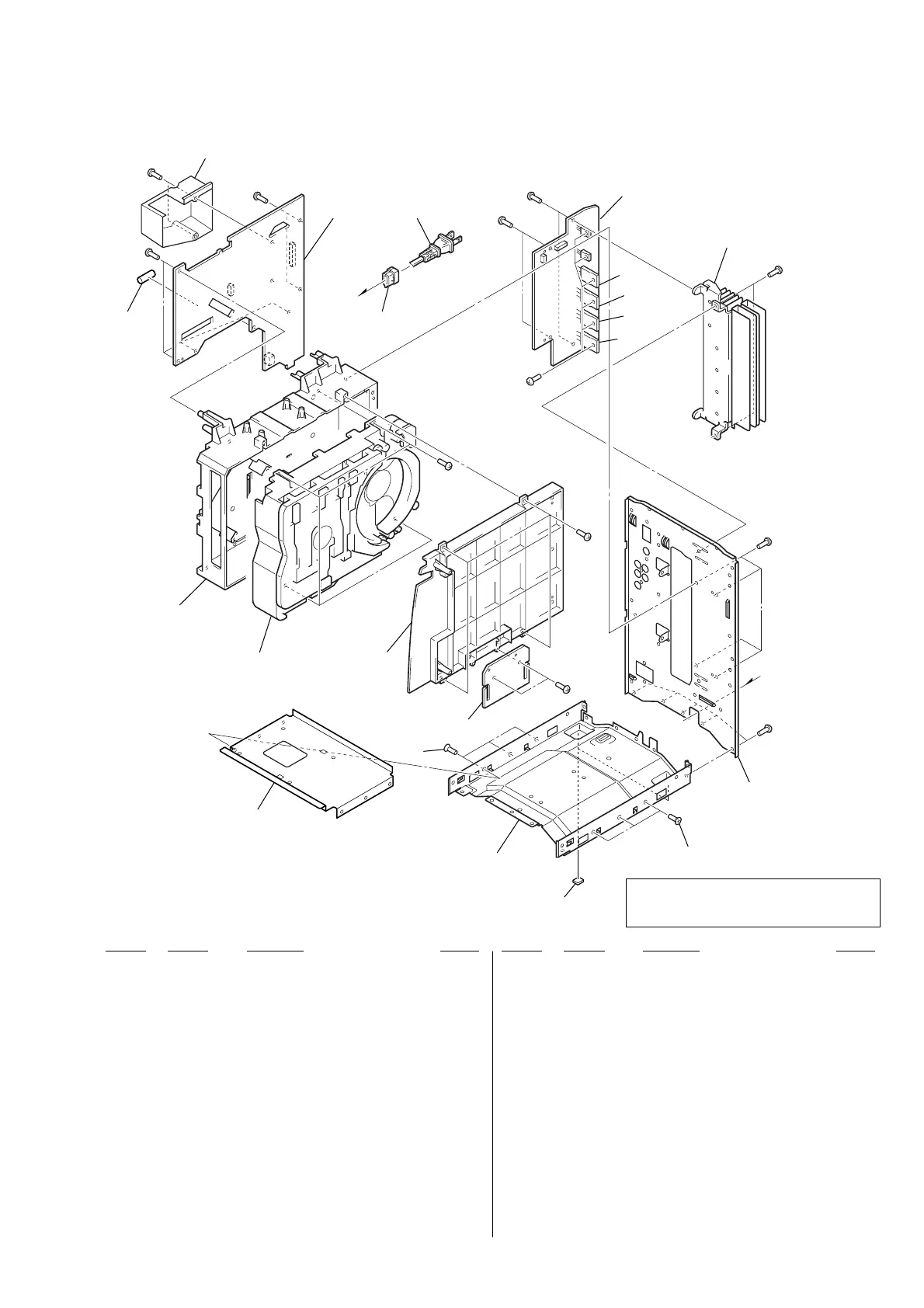

9-7. CHASSIS BLOCK-2
305
305
304
302
301
303
306
not supplied
not supplied
not supplied
not supplied
F001
not supplied
not supplied
not supplied
Q534
Q532
Q533
Q531
not supplied
(CD support board)
#1
#1
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
CD mechanism deck section-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 A-4733-391-A ACDC BOARD, COMPLETE (US)
301 A-4733-418-A ACDC BOARD, COMPLETE (E51)
301 A-4733-430-A ACDC BOARD, COMPLETE (MX)
301 A-4733-432-A ACDC BOARD, COMPLETE (AEP, UK)
* 302 3-703-244-00 BUSHING (2104), CORD (US, AEP, UK, E51)
302 3-703-571-11 BUSHING (S) (4516), CORD (MX)
0303 1-777-071-83 CORD, POWER (AEP, UK, E51)
0303 1-783-532-11 CORD, POWER (US)
0303 1-827-226-11 CORD, POWER (MX)
304 A-4733-393-A AMP BOARD, COMPLETE (US)
304 A-4733-415-A AMP BOARD, COMPLETE (E51, MX)
304 A-4733-434-A AMP BOARD, COMPLETE (AEP, UK)
305 4-242-530-01 QT2+3-8 W/O SLOT
306 4-242-091-01 CUSHION
0F001 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (5A/125V) (US)
0F001 1-533-472-11 FUSE, GLASS TUBE (DIA. 5) (5A/250V)
(E51, MX)
Q531 6-550-291-01 TRANSISTOR FN1016 (AEP, UK)
Q531 6-550-320-01 TRANSISTOR 2SD2562 (E51, MX)
Q531 8-729-020-52 TRANSISTOR 2SD2439-OPY (US)
Q532 6-550-291-01 TRANSISTOR FN1016 (AEP, UK)
Q532 6-550-320-01 TRANSISTOR 2SD2562 (E51, MX)
Q532 8-729-020-52 TRANSISTOR 2SD2439-OPY (US)
Q533 6-550-292-01 TRANSISTOR FP1016 (AEP, UK)
Q533 6-550-319-01 TRANSISTOR 2SB1649 (E51, MX)
Q533 8-729-020-48 TRANSISTOR 2SB1588-OPY (US)
Q534 6-550-292-01 TRANSISTOR FP1016 (AEP, UK)
Q534 6-550-319-01 TRANSISTOR 2SB1649 (E51, MX)
Q534 8-729-020-48 TRANSISTOR 2SB1588-OPY (US)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
