Note: Follow the disassembly procedure in the numerical order given.

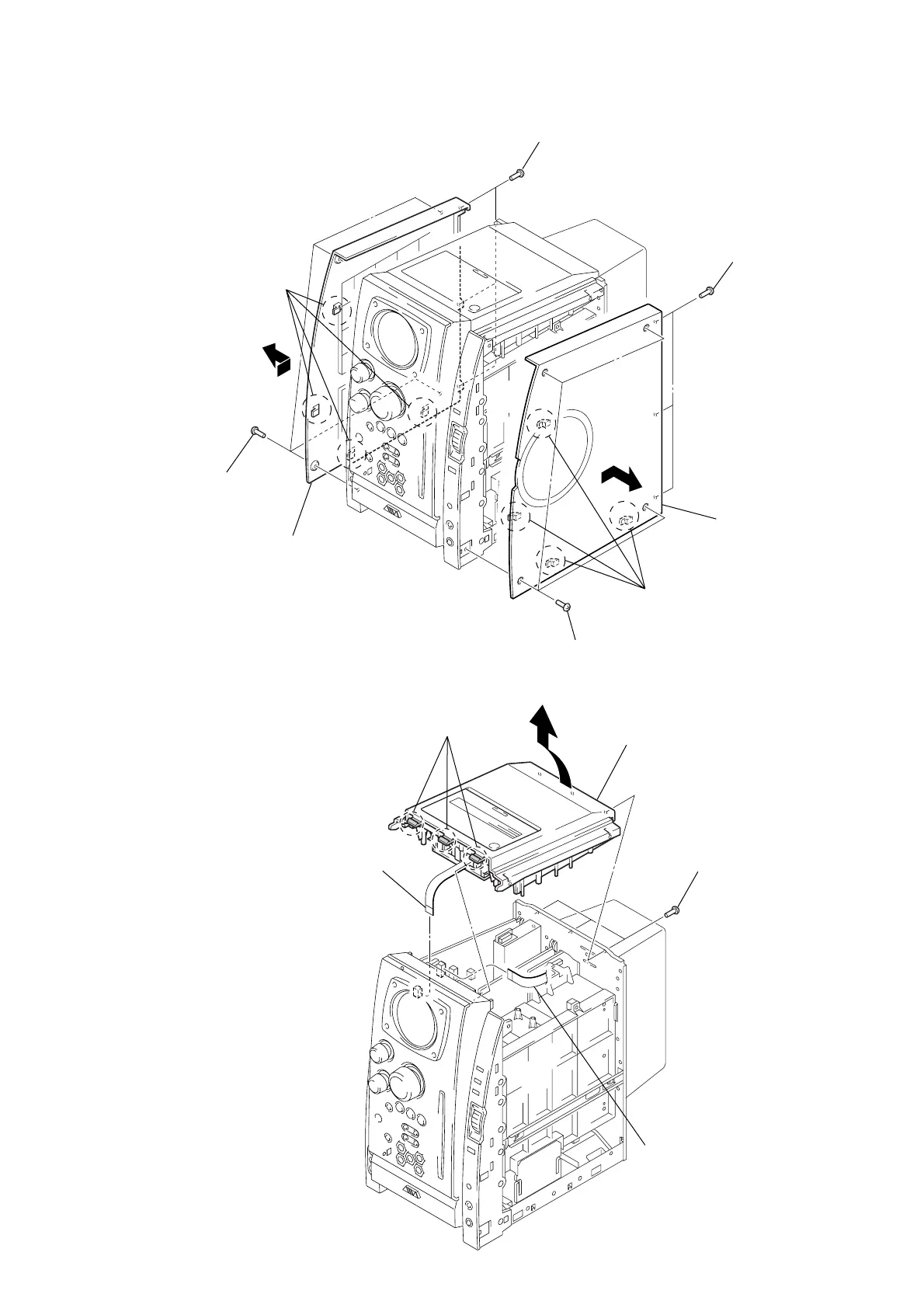

3-2. PANEL
3-3. TOP PANEL BLOCK
1
three screws
(BVTP3
×
10)
6
three screws
(BVTP3
×
10)
7
four screws
(BVTP3
×
10)
2
four screws
(BVTP3
×
10)
5
panel (left)
3
four claws
8
four claws
4
9
0
right panel
1
three screws
(BVTP3
×
10)
2
three claws
4
wire (flat type) (8core)
(CN903)
3
6
top panel block
5
wire (flat type) (11core
(CN009)
•
Tape deck is not loaded in US model.
The shape of the top panel shown in
“DISASSEMBLY” is different from the
actual shape.
•
Tape deck is not loaded in US model.
The shape of the top panel shown
in “DISASSEMBLY” is different from
the actual shape.
To Next Page
