Sony CX-BK1 - Chassis Block-1

84
CX-BK1

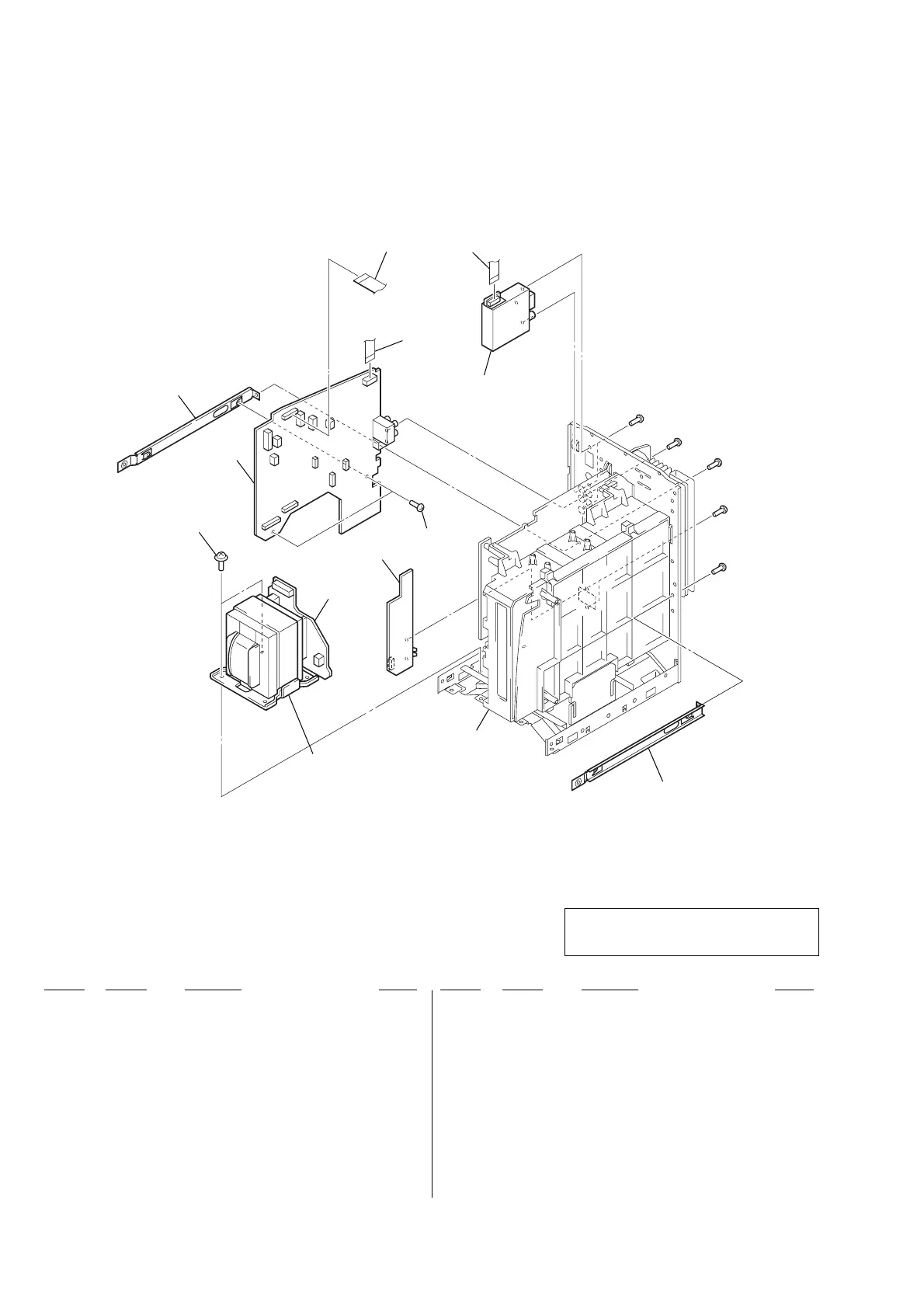

9-6. CHASSIS BLOCK-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 1-688-417-11 PT BOARD (US, AEP, UK)
251 1-688-421-11 PT BOARD (E51, MX)
252 4-242-527-01 S-SCREW, ITC+4-8 R
253 A-4733-389-A MAIN BOARD, COMPLETE (US)
253 A-4733-423-A MAIN BOARD, COMPLETE (E51, MX)
253 A-4733-440-A MAIN BOARD, COMPLETE (AEP, UK)
254 1-765-334-11 WIRE (FLAT TYPE) (17 CORE)
255 1-769-943-11 WIRE (FLAT TYPE) (11 CORE) (US, E51, MX)
255 1-773-007-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
256 1-688-419-11 SPEAKER BOARD
257 1-693-625-11 TUNER (FM/AM) (US)
257 1-693-626-11 TUNER (FM/AM) (AEP, UK)
257 1-693-628-11 TUNER (FM/AM) (E51, MX)
258 1-769-944-11 WIRE (FLAT TYPE) (11 CORE)
259 4-242-519-01 BVT2+3-6 W/O SLOT
0PT001 1-439-796-11 TRANSFORMER, POWER (MX)
0PT002 1-439-795-11 TRANSFORMER, POWER (E51)
0PT003 1-439-794-11 TRANSFORMER, POWER (US)
0PT003 1-439-797-11 TRANSFORMER, POWER (AEP, UK)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#7 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
255
254
258
253
252
256
259
251
257
not supplied
not supplied
chassis block-2
PT001 (MX)
PT002 (E51)
PT003 (US, AEP, UK)
#7
#1
#1
#1
#1
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
