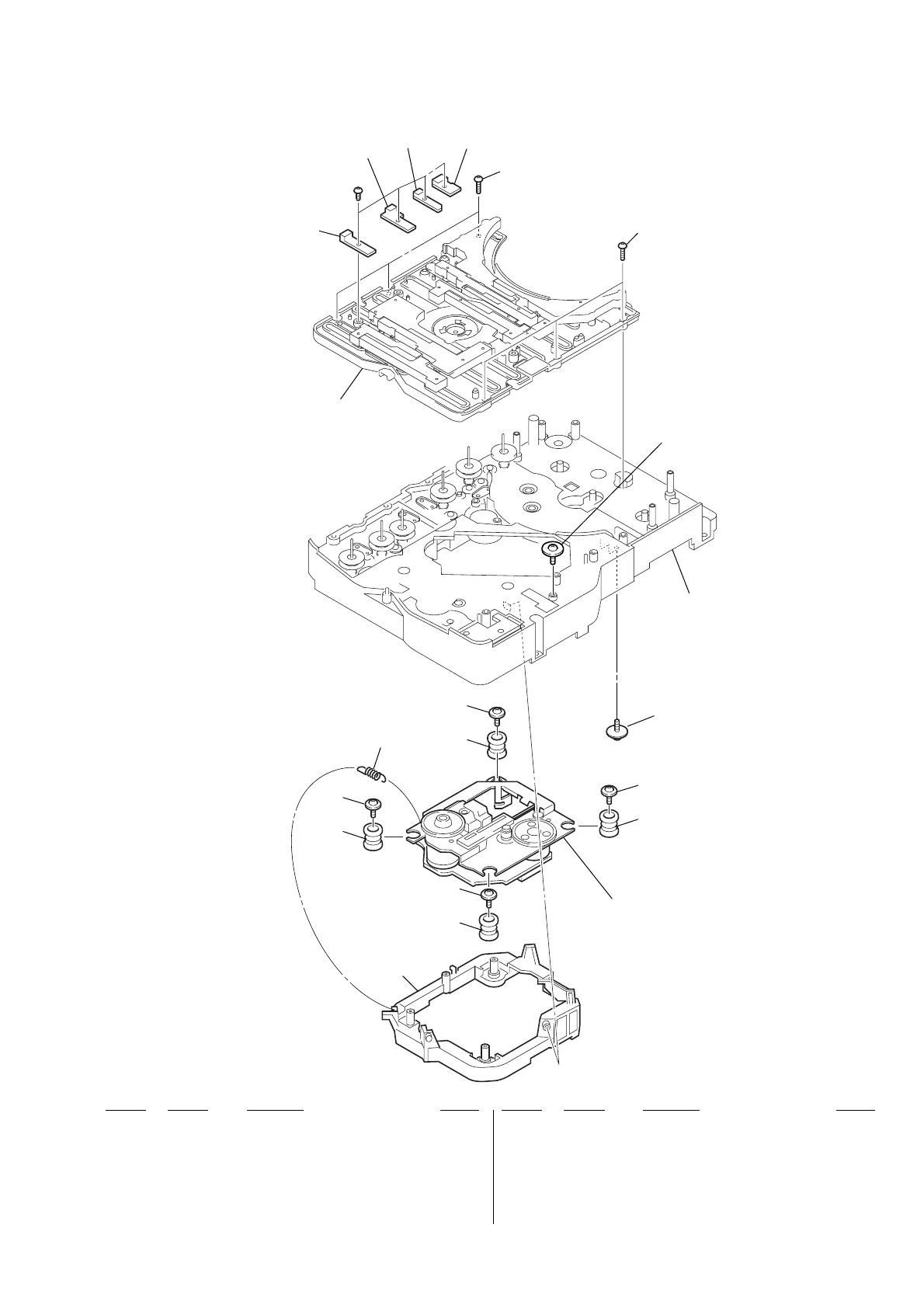

9-9. CD MECHANISM DECK SECTION-2 (CDM69BV-30CBD64NS)
551 1-686-727-12 SW (1) BOARD
552 1-686-728-12 SW (2) BOARD
553 1-686-729-12 SW (3) BOARD
554 1-686-730-12 SW (4) BOARD
555 4-951-620-01 SCREW (2.6X8), +BVTP
556 4-985-672-01 SCREW (+PTPWHM 2.6), FLOATING
557 4-227-899-01 SCREW (DIA,12), FLOATING
558 4-243-716-01 HOLDER (BU-30)
559 4-234-824-01 RUBBER, VIBRATION PROOF
560 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
261 4-244-960-02 SPRING (BU30-1), TENSION
#5 7-685-533-14 SCREW +BTP 2.6X6 TYPE2 N-S
552
553
554
555
551
555
#5
optical pick-up
section
556
557
CD mechanism deck section-3
CD mechanism deck section-
5
558
559
560
561
559
560
559
560
559
560
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
