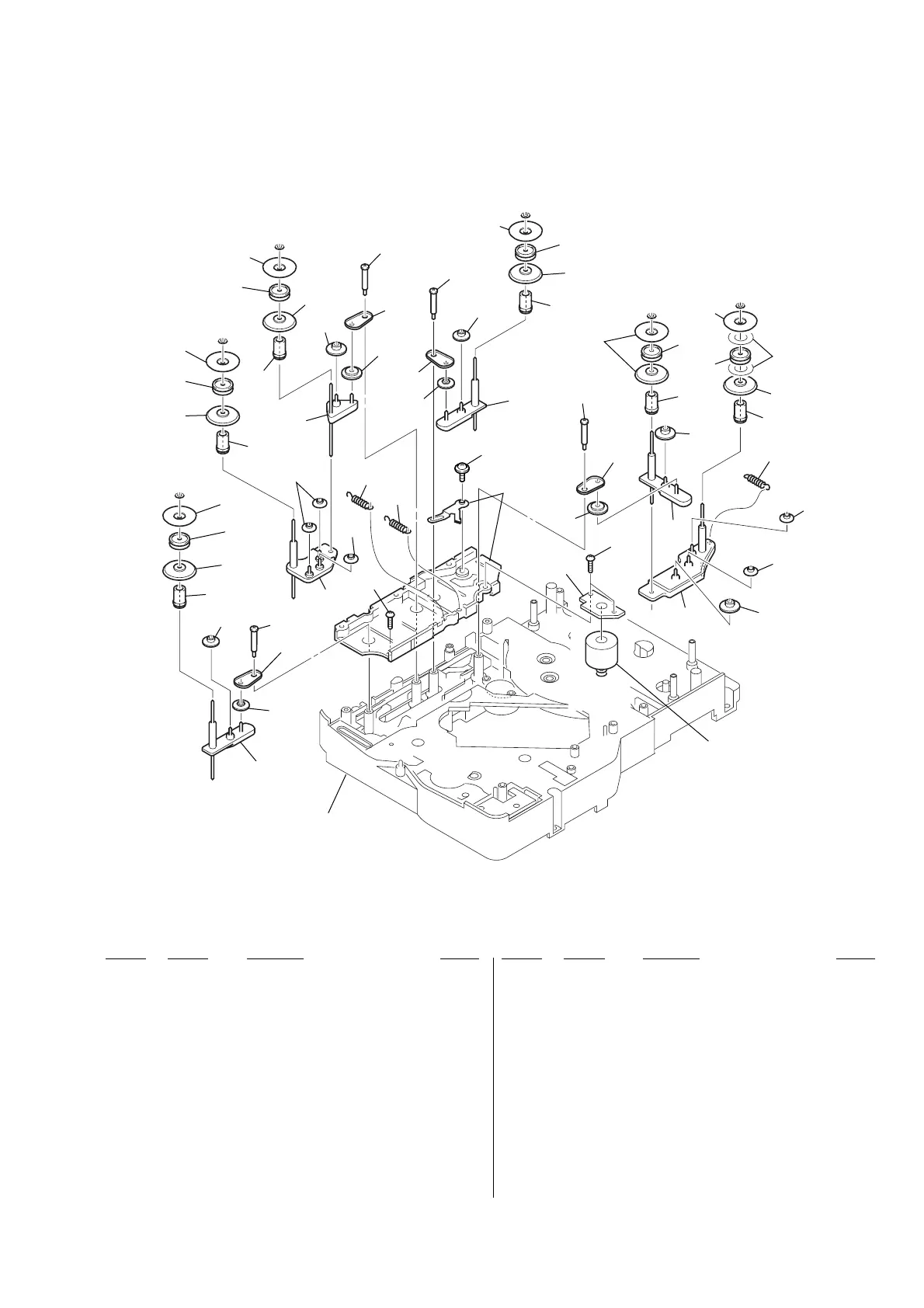

9-11. CD MECHANISM DECK SECTION-4 (CDM69BV-30CBD64NS)
653
654
657
657
657
657
656
655
658
658
657
667
#6
#6
#6
653
653
652
652
662
654
656
656
657
655
655
654
657
657
657
656
658
#6
653
652
654
669
670
671
664
661
661
655
670
656
655
658
668
651
651
663
not
supplied
#6
#6
651
652
660
666
661
661
665
675
672
M781
673
666
CD mechanism deck section-5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
651 X-4954-626-1 LEVER (ROLLER) ASSY
652 4-239-666-01 GEAR
653 4-239-668-01 LEVER (CENTER)
654 4-239-652-01 SCREW (ROLLER), STEP
655 4-239-669-01 GEAR (ROLLER COMMUNICATION)
656 4-239-667-01 GEAR (ROLLER CENTER)
657 4-239-647-01 PARASOL (MAIN)
658 4-244-032-01 ROLLER, RUBBER
660 X-4954-622-1 BASE (SLIDER 2) ASSY
661 4-239-670-01 GEAR (ROLLER 5 COMMUNICATION)
662 X-4954-624-A LEVER (SLIDER 4) ASSY
663 4-992-069-01 SCREW (+PTPWH)(M2)(DIA. 7)
664 4-240-981-01 SPRING (BASE SLIDER 5),TENSION
665 4-240-041-01 SPRING (SLIDER 2), TENSION
666 4-951-620-01 SCREW (2.6X8), +BVTP
667 4-243-916-01 ROLLER (S), RUBBER
668 4-244-035-01 ROLLER (STOCKER), RUBBER
669 4-241-209-01 SHEET, ADHESIVE
670 4-239-649-01 PARASOL (STOCKER)
671 4-239-671-01 GEAR (ROLLER 5 CENTER)
672 X-4954-627-1 BASE (SLIDER 5) ASSY
673 1-686-726-12 ROLLER MOTOR BOARD
675 4-244-162-01 SPRING (SLIDER 4),TENSION
M781 A-4735-953-A MOTOR ASSY (ROLLER)
#6 7-623-921-01 WASHER 1.7, NYLON
