Sony DP-IF5000 - 6 Exploded View

– 34 –
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
SECTION 6

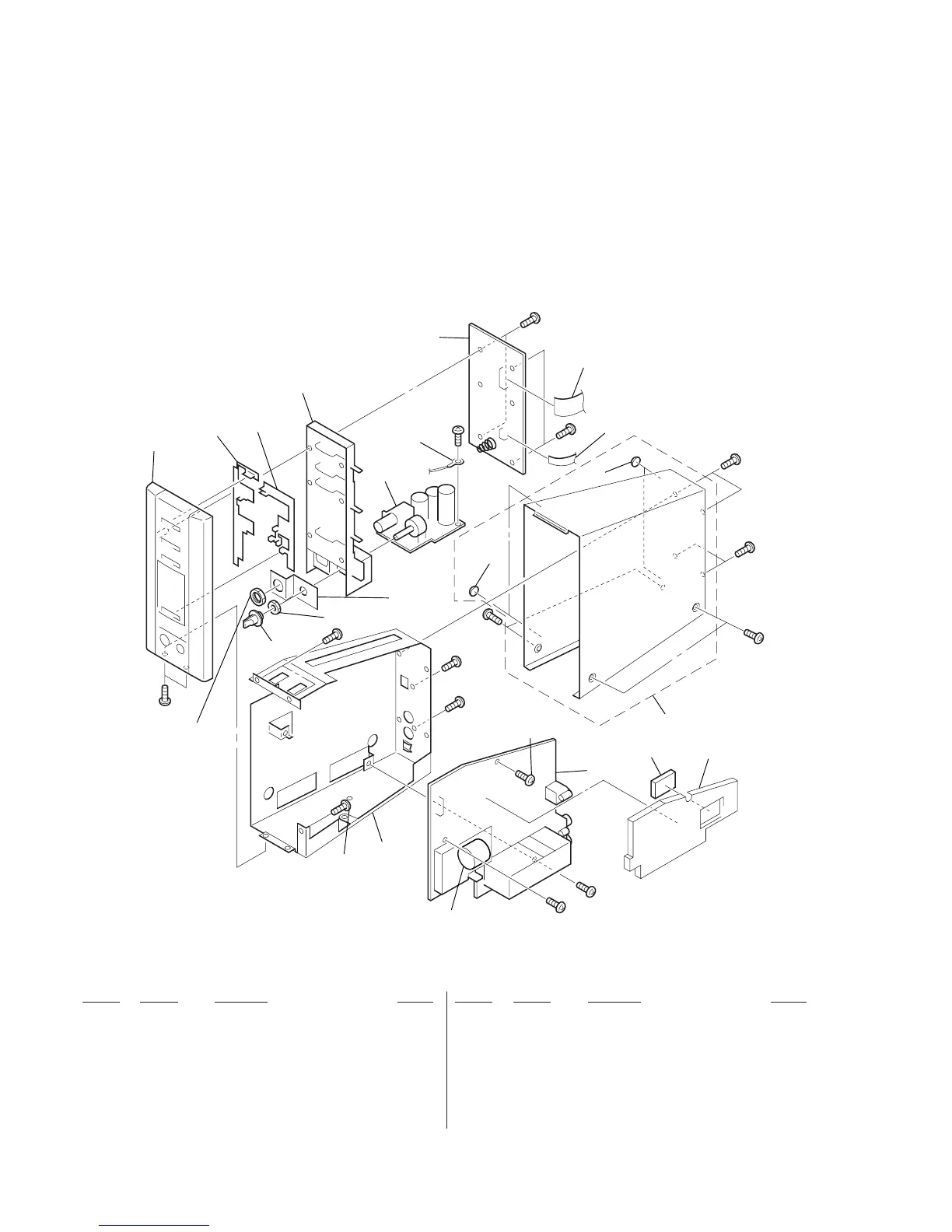

EXPLODED VIEW
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
N
N
• Hardware (# mark) list are given in the
last of this parts list.
#2
#2
#2
#2
#3
#3
#3
#3
#3
#3
#3
#3
#1
#1
#3
1
2
3
4
5
6
7
8
9
10
11
12
12
not
supplied
not
supplied
supplied with RV
supplied with JACK
13
not
supplied
not
supplied
C817
1 X-4950-547-1 PANEL ASSY, FRONT
* 2 4-213-914-01 PLATE (A), LIGHT GUIDE
* 3 4-213-921-01 PLATE (B), LIGHT GUIDE
4 4-213-828-01 KNOB (VOL)
5 4-213-912-01 PANEL, SUB
* 6 A-4542-552-A AMP BOARD, COMPLETE
* 7 A-4542-551-A LED BOARD, COMPLETE
8 1-790-200-11 WIRE, PARALLEL 12P
9 1-790-199-11 WIRE, PARALLEL 6P
* 10 A-4542-553-A TX BOARD, COMPLETE
11 X-4950-554-1 COVER ASSY
12 3-740-607-01 CUSHION
13 4-215-068-01 CUSHION (HEAT SINK)
C817 1-125-784-11 ELECT 15000uF 20% 25V
