– 5 –
SECTION 2
DISASSEMBLY

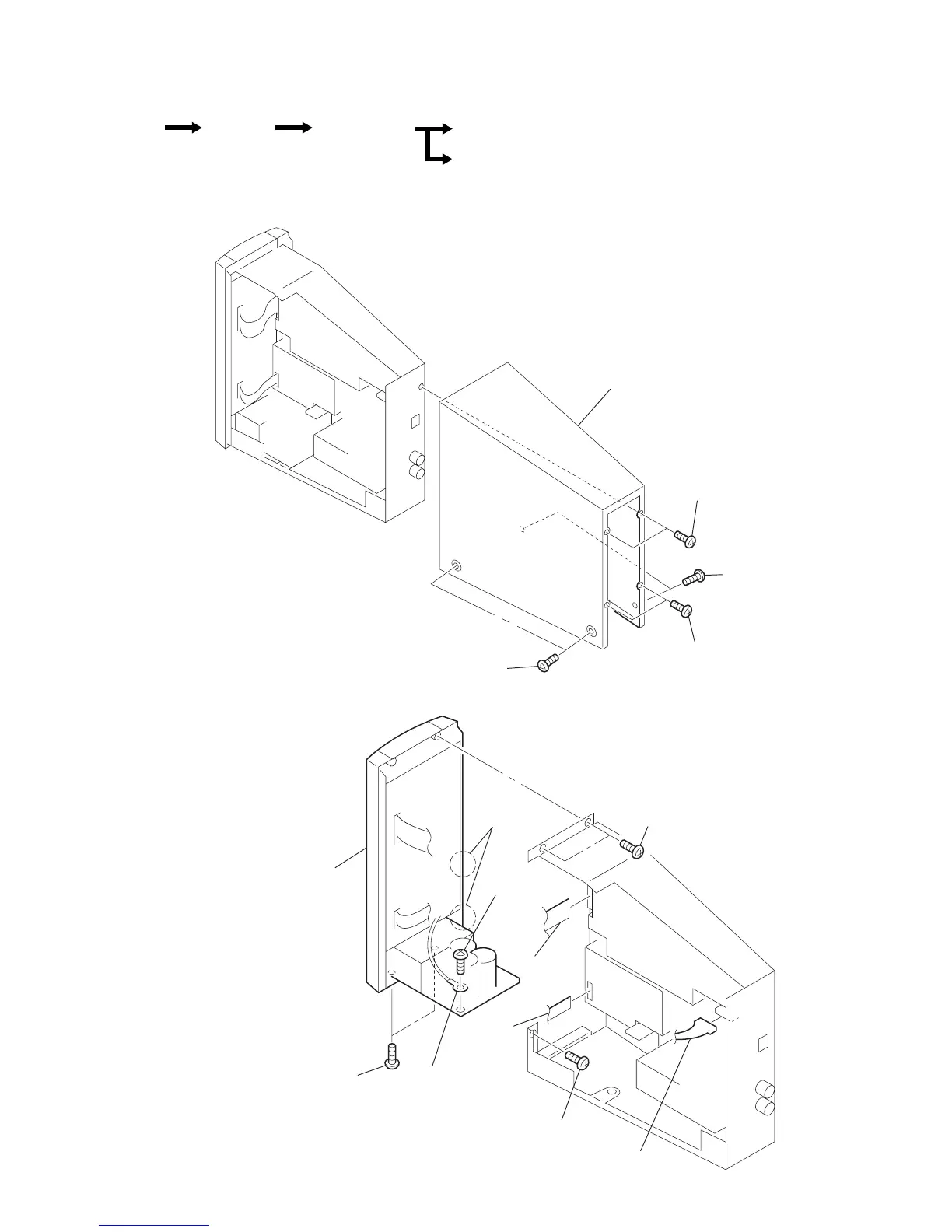

2-1. COVER ASSY
• The equipment can be removed using the following procedure.
Note : Follow the disassembly procedure in the numerical order given.
Set Cover assy Panel assy, front Panel assy, sub
TX board
2-2. PANEL ASSY, FRONT
5 cover assy
3 PTT 2.6X5
2 PTT 2.6X
5
4 PTT 2.6X5
1 PTT 2.6X5
3 lug plate
5 CN103
!º panel assy, front
6 CN901
7 P 3X6
8 P 3X6
4 CN102
9 claws
1 PTT 2.6X5
2 PTT 2.6X5
