5-1. EXPLODED VIEWS
COVER
COVER
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

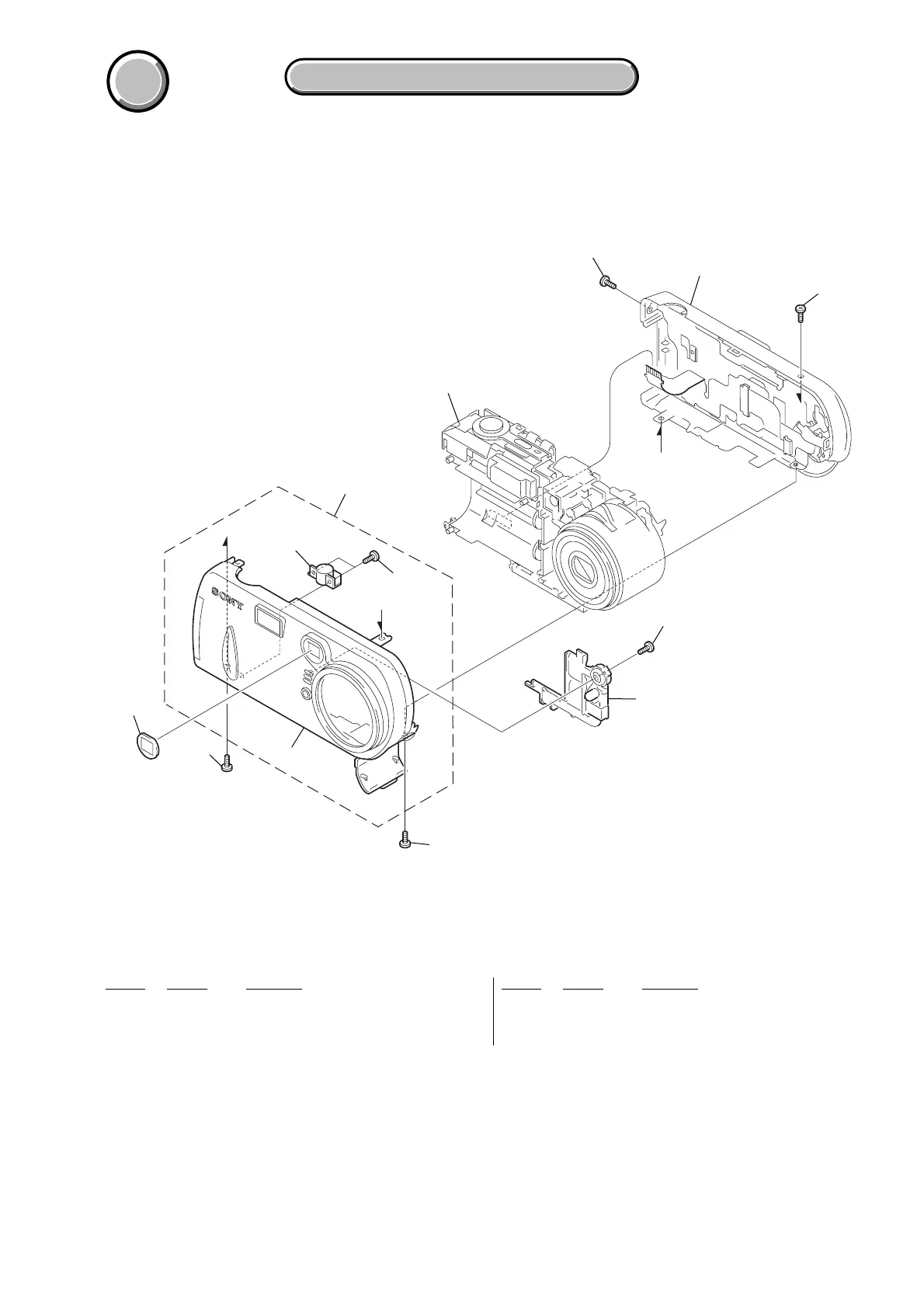

5-1-1. CABINET (FRONT) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
1 3-968-729-71 SCREW (M2), LOCK ACE, P2
2 3-082-168-01 WINDOW, OVF
3 3-080-977-01 TRIPOD
4 X-3953-159-1 CABINET (FRONT) ASSY
5 1-477-810-11 UNIT PARTS (UA-002)
6 3-080-204-21 SCREW, TAPPING, P2
ns : not supplied
A
B
A
B
ns
1
1
1
6
6
1
2
3
4
5
Cabinet (rear) block assembly
(See page 5-5)
Main block assembly
(See page 5-4)
