5-4
DSC-P72
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
COVER
COVER

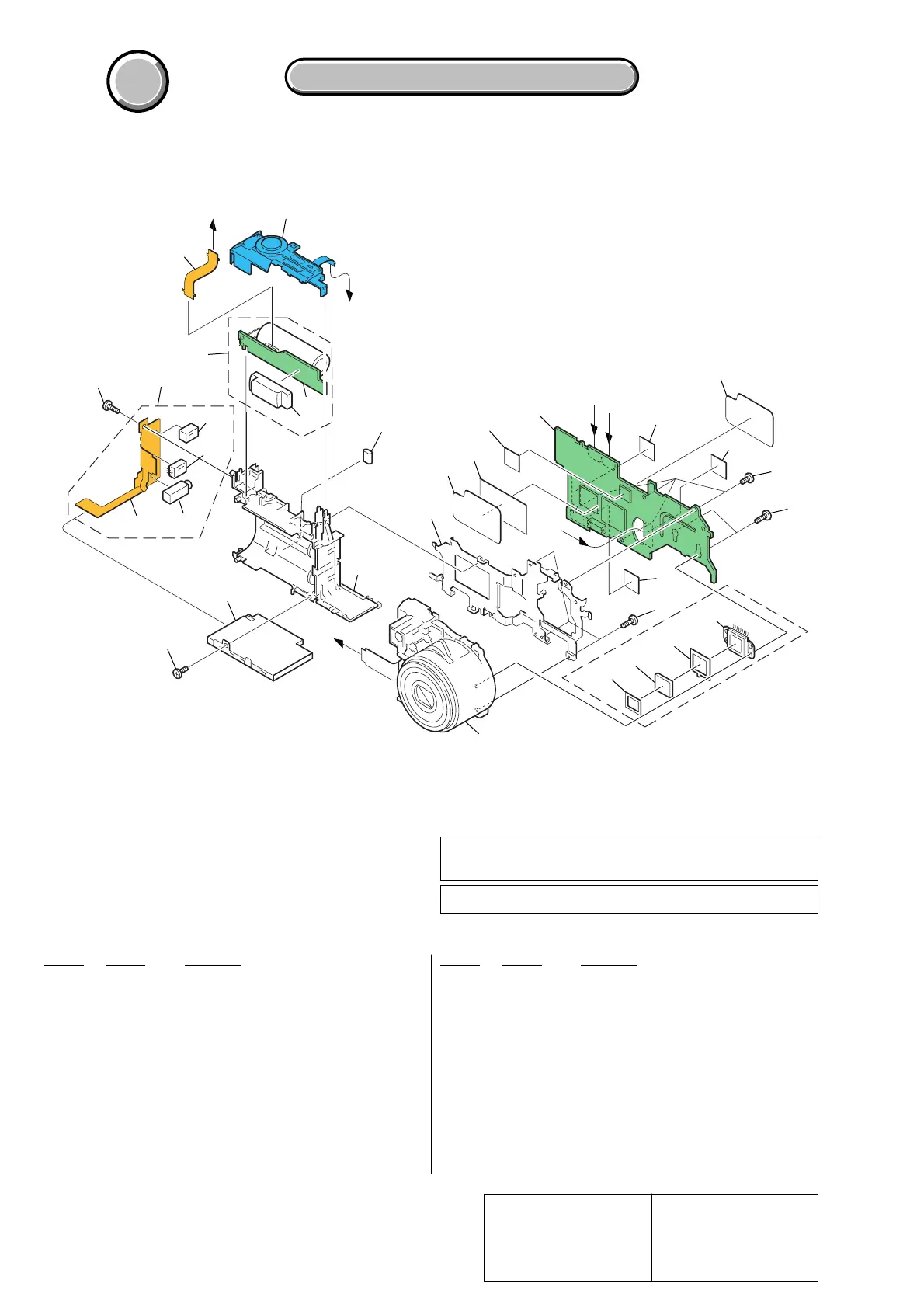

5-1-2. MAIN BLOCK SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
51 3-078-890-11 SCREW, TAPPING
52 1-815-853-21 MEMORY STICK CONNECTOR
53 3-080-204-21 SCREW, TAPPING, P2
54 1-477-859-11 JK BLOCK (JK-252)
55 A-7078-600-A ST-82 (S) BOARD, COMPLETE
56 1-687-751-11 FP-643 FLEXIBLE BOARD
57 1-477-806-11 CONTROL SWITCH BLOCK (RL-059)
58 A-7078-684-A SY-85 BOARD, COMPLETE (SERVICE)
59 3-078-889-11 SCREW (M1.7)
60 3-075-085-01 RUBBER (DQ), SEAL
61 1-758-916-11 FILTER BLOCK, OPTICAL
62 3-082-136-01 SHEET, SHIELD
63 3-081-034-01 FRAME, LENS
64 1-758-925-11 LENS, VIDEO (ED02D)
65 3-076-569-01 PLATE, LIGHT INTERCEPTION
66 3-083-057-01 CUSHION (ISB), ELECTROSTATIC
0 67 1-477-803-11 FLASH UNIT
BT901 1-756-347-11 HOLDER, BATTERY(WITH TERMINAL)
CN101 1-794-962-11 CONNECTOR, SQUARE TYPE(USB 5P)
IC351 A-7013-723-A CCD BLOCK ASSY (CCD IMAGER)
J101 1-817-331-11 DC JACK 5P (DC IN)
J102 1-569-950-31 JACK (SMALL TYPE)(A/V OUT(MONO))
ns : not supplied
A
B
C
C
61
52
51
60
64
65
62
53
51
58
63
59
53
54
ns
ns
ns
ns
ns
ns
J101
IC351
BT901
J102
CN101
ns
66
A
B
56
55
57
67
ns
(Note)
Be sure to read “Precautions upon replacing CCD imager”
on page 4-7 when changing the CCD imager.
(Note) See page 2-5 of when installing the CCD block assy.
Note :
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
