: ‘AntenniaiCable
VHF/UHF IN
TV
VHF/UHF
VHF/UHF IN
{

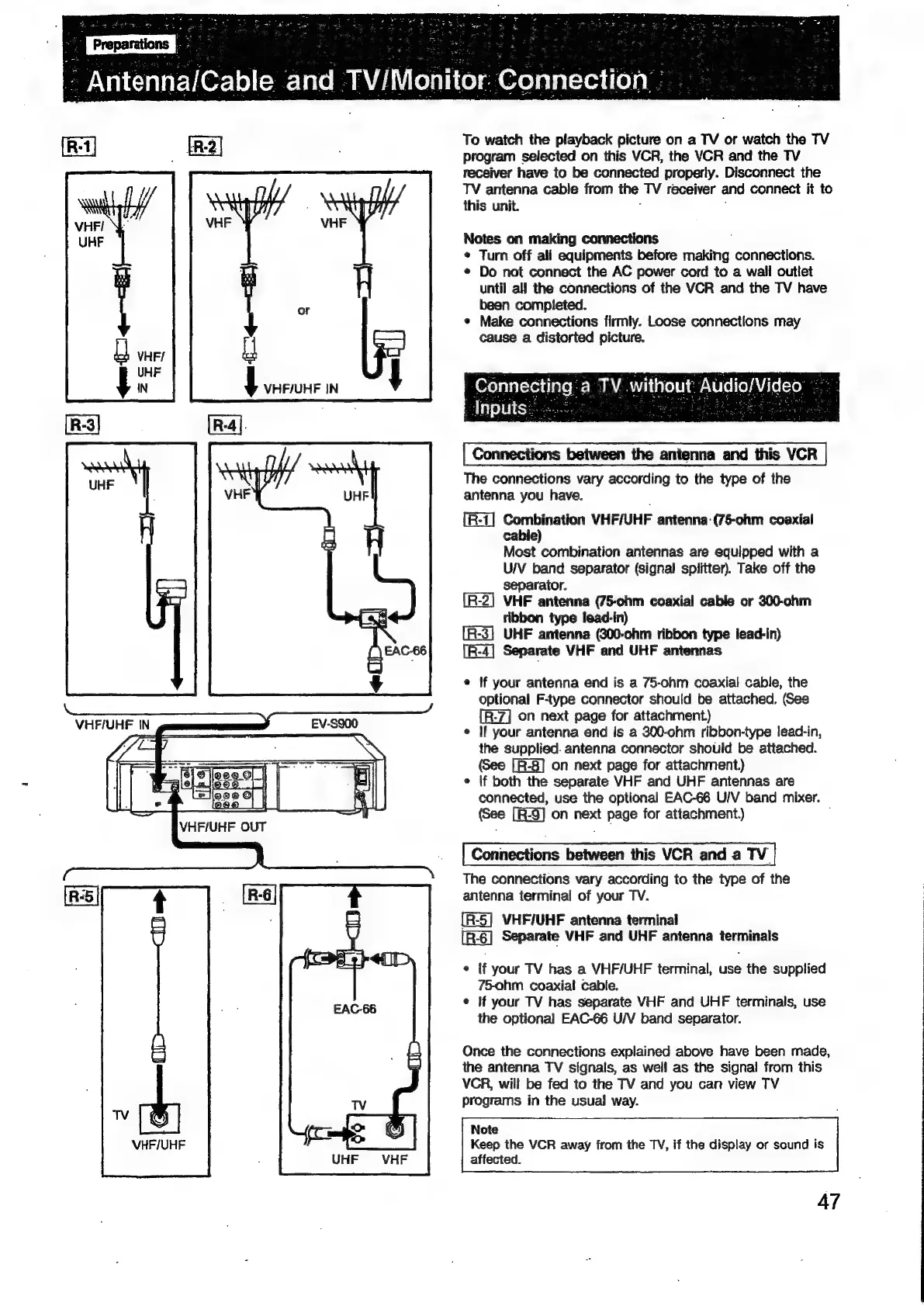

To watch the playback picture on a TV or watch the TV
program selected on this VCR, the VCR and the TV
receiver have to be connected properly. Disconnect the
TV antenna cable from the TV receiver and connect it to
this unit.
Notes on making connections
« Turn off ali equipments before making connections.
* Do not connect the AC power cord to a wall outlet
until all the connections of the VCR and the TV have
been completed.
¢ Make connections firmly. Loose connections may
cause a distorted picture.
Connecting. a aes without Audio/Video! 2
Connections between the antenna and this VCR
The connections vary according to the type of the
antenna you have.
Combination VHF/UHF antenna-(75-ohm coaxial
cable)
Most combination antennas are equipped with a
U/V band separator (signal splitter). Take off the
separator.
(R-2] VHF antenna (75-ohm coaxial cable or 300-ohm
ribbon type lead-in)
[R:3] UHF antenna (300-ohm ribbon type lead-in)
[R-4] Separate VHF and UHF antennas
e If your antenna end is a 75-ohm coaxial cable, the
optional F-type connector should be attached. (See
[R:7] on next page for attachment)
e {f your antenna end is a 300-ohm ribbon-type lead-in,
the supplied. antenna connector should be attached.
(See on next page for attachment.)
e If both the separate VHF and UHF antennas are
connected, use the optional EAC-66 U/V band mixer.
(See on next page for attachment.) j
Connections between this VCR and a TV
The connections vary according to the type of the
antenna terminal of your TV.
VHF/UHF antenna terminal
Separate VHF and UHF antenna terminals
¢ {f your TV has a VHF/UHF terminal, use the supplied
75ohm coaxial cable.
¢ If your TV has separate VHF and UHF terminals, use
the optional EAC-66 U/V band separator.
Once the connections explained above have been made,
the antenna TV signals, as well as the signal from this
VCR, will be fed to the TV and you can view TV
programs in the usual way.
Note
Keep the VCR away from the TV, if the display or sound is
affected.
