Sony EV-S900 - Location and Function of Parts and Controls

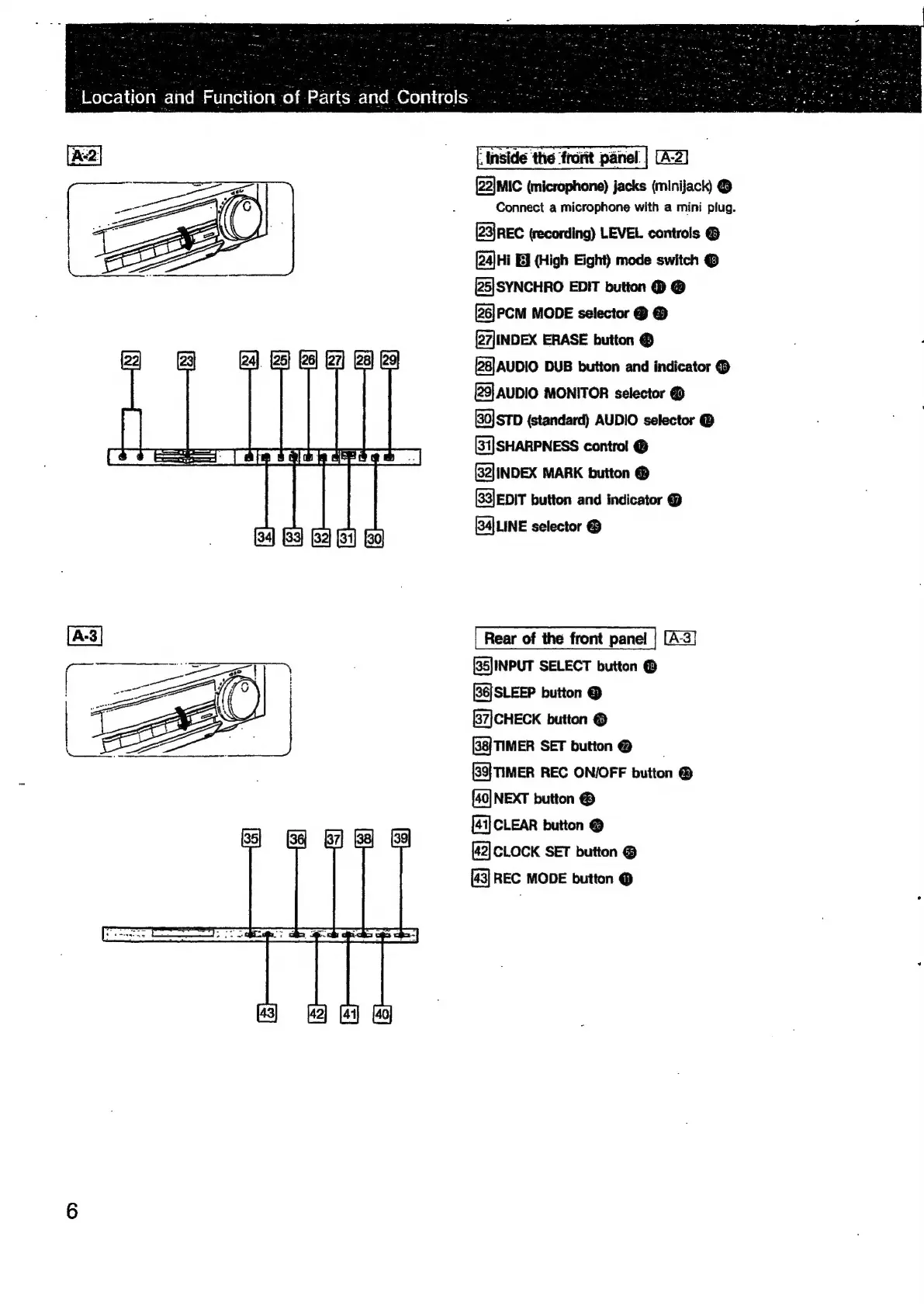

“Location and Function of Parts and Controls
inside the front panel.
(22|MIC (microphone) jacks (minijack) @
Connect a microphone with a mini plug.
[23}REC (recording) LEVEL controls @
24] Hi EJ (High Eight) mode switch @
25]SYNCHRO EDIT button @ @
(26]PCM MODE selector @ @
(27]INDEX ERASE button ®
28}AUDIO DUB button and indicator ®
29] AUDIO MONITOR selector @
(80]STD (standard) AUDIO selector @
[31]|SHARPNESS control @
(32]INDEX MARK button @
3] EDIT button and indicator @
[34] LINE selector @
Rear of the front panel
(5|INPUT SELECT button @
[S6]SLEEP button @
B7}CHECK button ©
(S8|TIMER SET button @
(S9}TIMER REC ON/OFF button ®
(40] NEXT button ®
[4a] CLEAR button @
[42] CLOCK SET button @
[43] REC MODE button @
