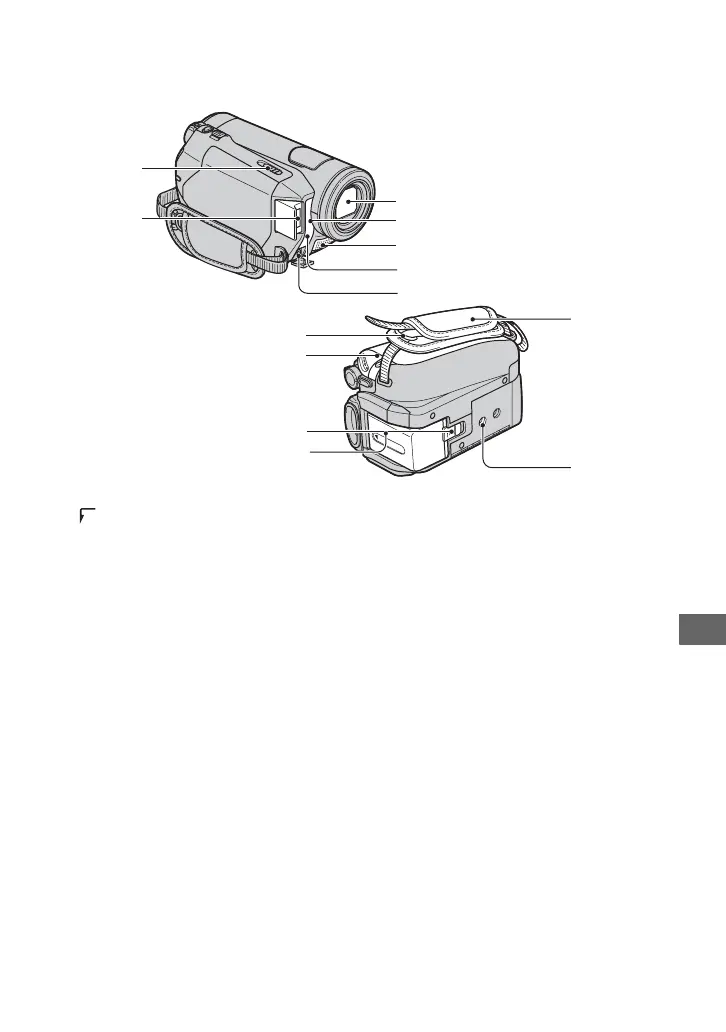

Quick Reference
A OPEN/EJECT lever (20)
B Flash
C Lens (Carl Zeiss Lens) (8)
D Remote sensor/Infrared port
Point the Remote Commander (p. 108)
towards the remote sensor to operate
your camcorder.
E Microphone
An Active Interface Shoe compatible
microphone (optional) will take
precedence when connected.
F REC lamp (Camera recording lamp)
• The REC lamp lights up in red during
recording (p. 61).
• The REC lamp flashes if the remaining tape
or battery power is low.
G HDR-HC7:
MIC (PLUG IN POWER) jack
When an external microphone
(optional) is connected, it takes
precedence over the internal
microphone (p. 107).
H Hook for the Shoulder belt
Attach the Shoulder belt (optional).
I Cassette compartment lid (20)
J BATT (battery release) lever (15)
K Battery pack (14)
L Grip belt (19)
M Tripod receptacle
Attach the tripod (optional: the length of
the screw must be less than 5.5 mm (7/
32 in.)) to the tripod receptacle using a
tripod screw.
