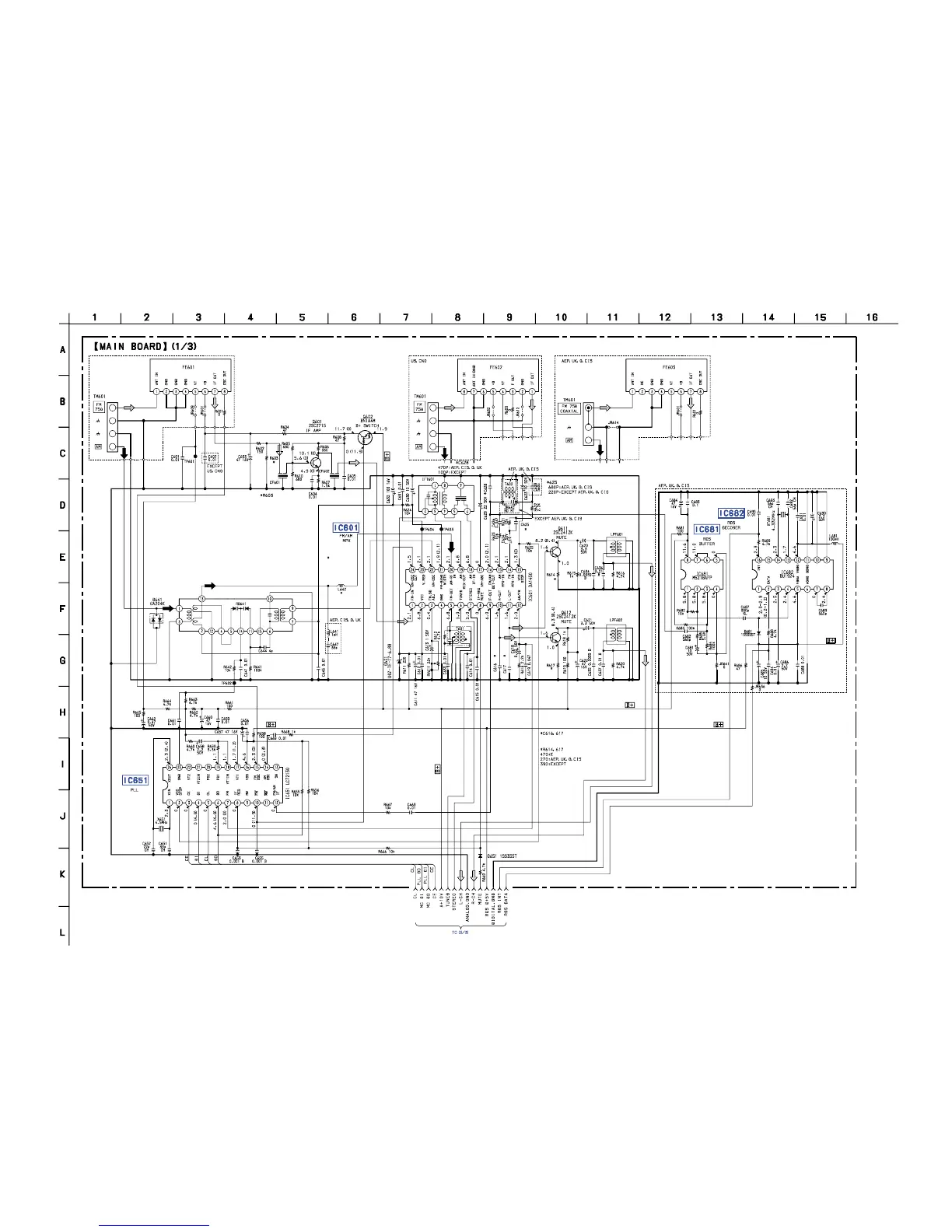

7-6. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION –
• See page 48 for IC Block Diagrams.
(Page 29)
09
DX7, DX7J MODEL
680 : BX7
330: EXCEPT BX7
L642
33uH : AEP,CIS
G, UK
0 : EXCEPT AEP,
UK, G, CIS
0.015 : BX7
0.01 : EXCEPT BX7
