Sony HCD-BX7 - Section 8 Exploded Views; Exploded Views by Section

49
CD mechanism deck
#5
#2
#3
#3
#
3
#3
#3
#3
#3
#5
#5
4
3
5
1
1
2
2
6
Front panel section
Chassis section
#3
M961
9
8
7
not supplied

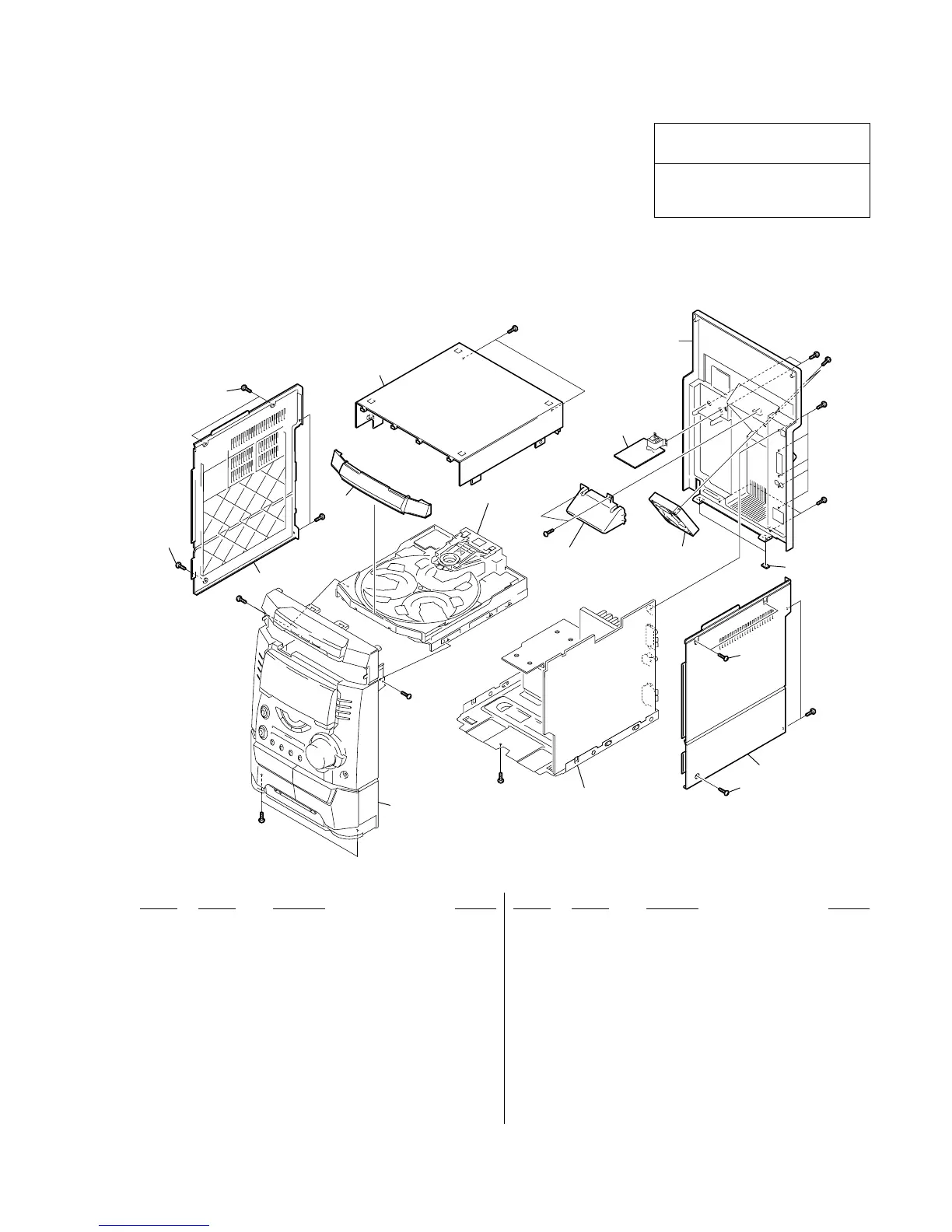

8-1. MAIN SECTION
1 3-363-099-01 SCREW(CASE 3 TP2)
2 3-363-099-41 SCREW(CASE 3 TP2)
3 4-225-038-01 SIDE PANEL L (BX7/DX7)
3 4-225-038-21 SIDE PANEL L (DX7J)
4 4-225-017-31 LOADING PANEL (DX7:TH)
4 4-225-018-11 LOADING PANEL (BX7)
4 4-225-018-21 LOADING PANEL
(DX7:SP,MY,E2,MX,AR,AUS,E3,KR)
4 4-225-018-31 LOADING PANEL (DX7:EA)
4 4-228-259-11 LOADING PANEL (DX7J)
5 4-225-039-01 SIDE PANEL R (BX7/DX7)
5 4-225-039-21 SIDE PANEL R (DX7J)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
6 4-224-550-01 CASE (TOP) (EXCEPT BX7:US,CND)
6 4-224-550-21 CASE (TOP) (BX7,US,CND)
7 A-4437-194-A SUB-TRANS BOARD,COMPLETE (BX7:US)
7 A-4428-301-A SUB-TRANS BOARD,COMPLETE
(BX7:AEP,CIS,UK,G)
7 A-4428-959-A SUB-TRANS BOARD,COMPLETE (BX7:CND)
8 4-225-041-11 BACK PANEL (BX7:,AEP,CIS,UK,G/DX7:AUS,MX)
8 4-225-041-21 BACK PANEL (DX7:EA,SP,MY,E2,AR,E3,KR)
8 4-225-041-31 BACK PANEL (BX7:US,CND)
8 4-228-592-31 BACK PANEL (DX7J)
9 4-225-252-01 CUSHION (FOOT)
M961 1-763-072-11 FAN, D.C. (BX7:US,CND/DX7/DX7J)
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND: Canadian model
AUS : Australian model
G : German model
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
KR : Korea model
MX : Mexican model
AR : Argentina model
E2 : Central and South AMERICA
E3 : Middle and Near East
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
