Sony HCD-BX7 - Printed Wiring Board - Leaf SW Section

HCD-BX7/DX7/DX7J
36
36

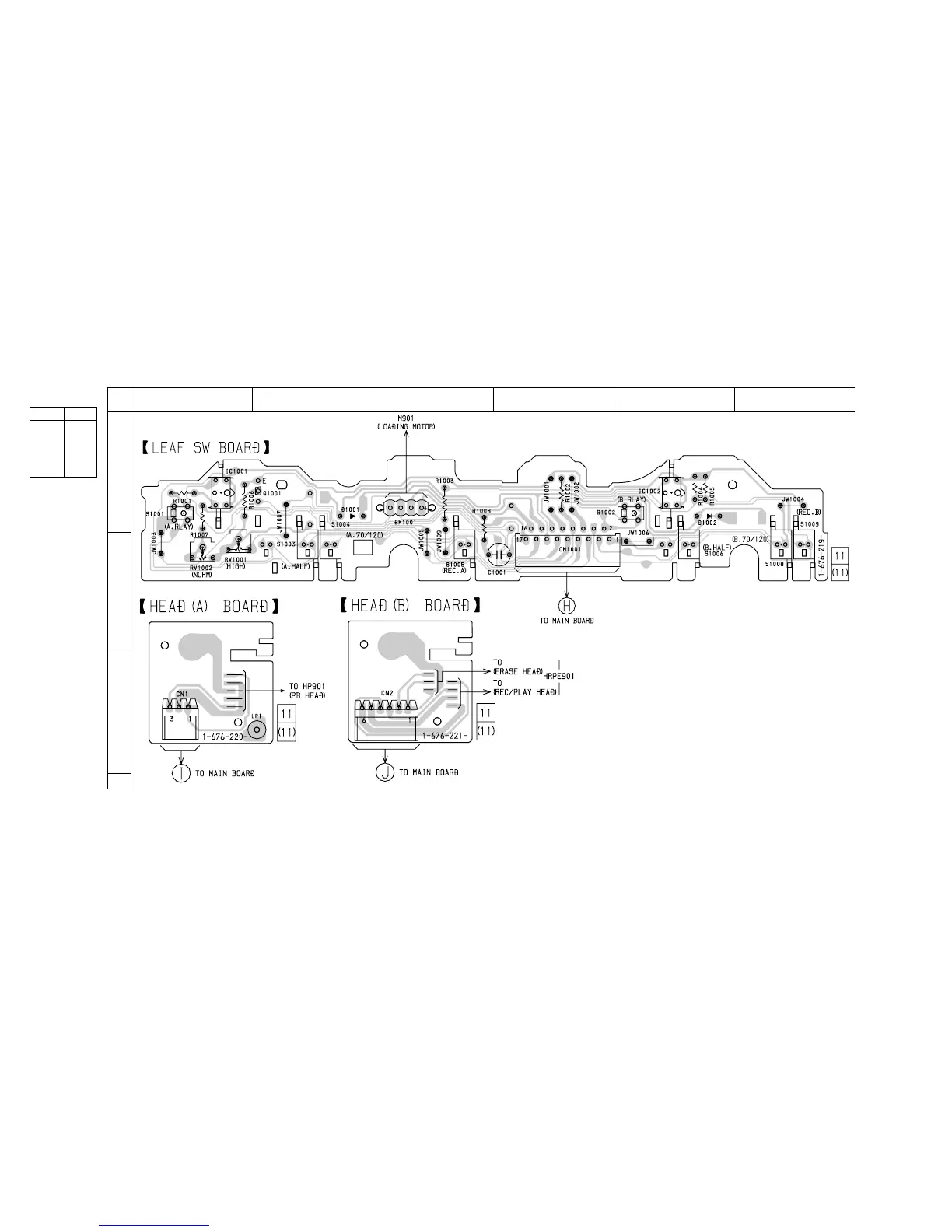

7-15. PRINTED WIRING BOARD – LEAF SW SECTION – • See page 21 for Circuit Boards Location.
Ref. No. Location
D1001 A-2
D1002 A-5
IC1001 A-1
IC1002 A-5
Q1001 A-2
• Semiconductor
Location
12
A
B
C
3456
(Page 26)
(Page 26)
(Page 26)
09
