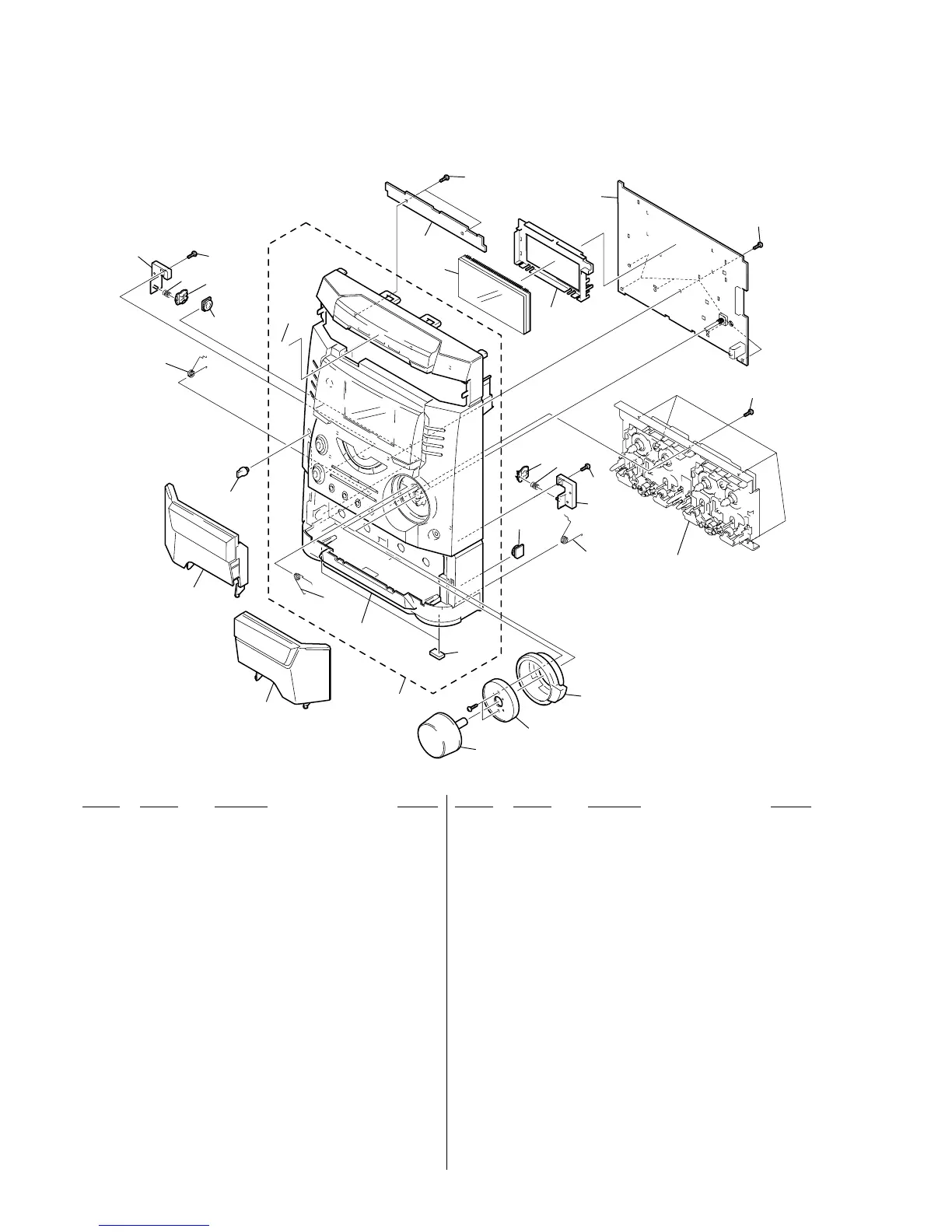

8-2. PANEL SECTION
S
51
52
53
56
69
58
57
70
71
59
59
63
64
65
66
54
55
* 67
67
67
67
61
60
60
62
* For service only
(Be sure to refer to "Service note" on page 4.)
Tape mechanism deck
FL601
68
67
not supplied
not supplied
#7
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 X-4952-418-1 TC HOLDER (L) ASSY (EXCEPT DX7:E3)
51 X-4952-792-1 TC HOLDER (L) ASSY (DX7:E3)
52 X-4952-419-1 TC HOLDER (R) ASSY (EXCEPT DX7:E3)
52 X-4952-791-1 TC HOLDER (R) ASSY (DX7:E3)
53 4-225-032-01 VOL KNOB
54 A-4428-077-A CD SWITCH BOARD,COMPLETE
(EXCEPT DX7:TH/DX7J)
54 A-4428-905-A CD SWITCH BOARD,COMPLETE (DX7:TH)
54 A-4473-045-A CD SWITCH BOARD,COMPLETE (DX7J)
55 4-962-708-71 EMBLEM (4-A), SONY (DX7:TH/DX7J)
55 4-962-708-81 EMBLEM (4-A), SONY (EXCEPT DX7:TH/DX7J)
56 4-225-033-01 FR KNOB
57 X-4952-415-1 FRONT PANEL ASSY (BX7:AEP,CIS,UK,G)
57 X-4952-552-1 FRONT PANEL ASSY (BX7:US,CND)
57 X-4952-553-1 FRONT PANEL ASSY (DX7:EA,E3)
57 X-4952-595-1 FRONT PANEL ASSY
(DX7:SP,MY,E2,MX,AR,AUS,KR)
58 4-224-562-01 BRACKET (HEART CAM L)
59 4-224-803-01 SPRING (PUSH),COMPRESSION COIL
60 4-224-104-01 DAMPER (DX7:TH)
60 4-224-104-11 DAMPER (DX7J)
60 4-224-104-21 DAMPER (EXCEPT DX7:TH/DX7J)
61 4-224-560-01 CAM(L), HEART
62 4-224-559-01 CAM(R), HEART
63 4-224-561-01 BRACKET (HEART CAM R)
64 4-225-053-01 SPRING R
65 4-224-584-01 HOLDER (FL) (DX7:TH/DX7J)
65 4-224-584-11 HOLDER (FL) (EXCEPT DX7:TH/DX7J)
66 A-4428-075-A PANEL BOARD,COMPLETE (BX7)
66 A-4428-338-A PANEL BOARD,COMPLETE (DX7:EA)
66 A-4428-342-A PANEL BOARD,COMPLETE
(DX7:SP,MY,E2,MX,AR.AUS,E3,KR)
66 A-4428-907-A PANEL BOARD,COMPLETE (DX7:TH)
66 A-4473-047-A PANEL BOARD,COMPLETE (DX7J)
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-224-578-01 KNOB (MIC)(DX7:TH/DX7J)
68 4-224-578-11 KNOB (MIC) (EXCEPT DX7:TH/DX7J)
69 4-225-052-01 SPRING L
70 4-225-252-01 CUSHION (FOOT)
71 4-225-054-01 SPRING FR
FL601 1-517-928-11 INDICATOR TUBE, FLUORESCENT
