HCD-BX9/DX9
2525

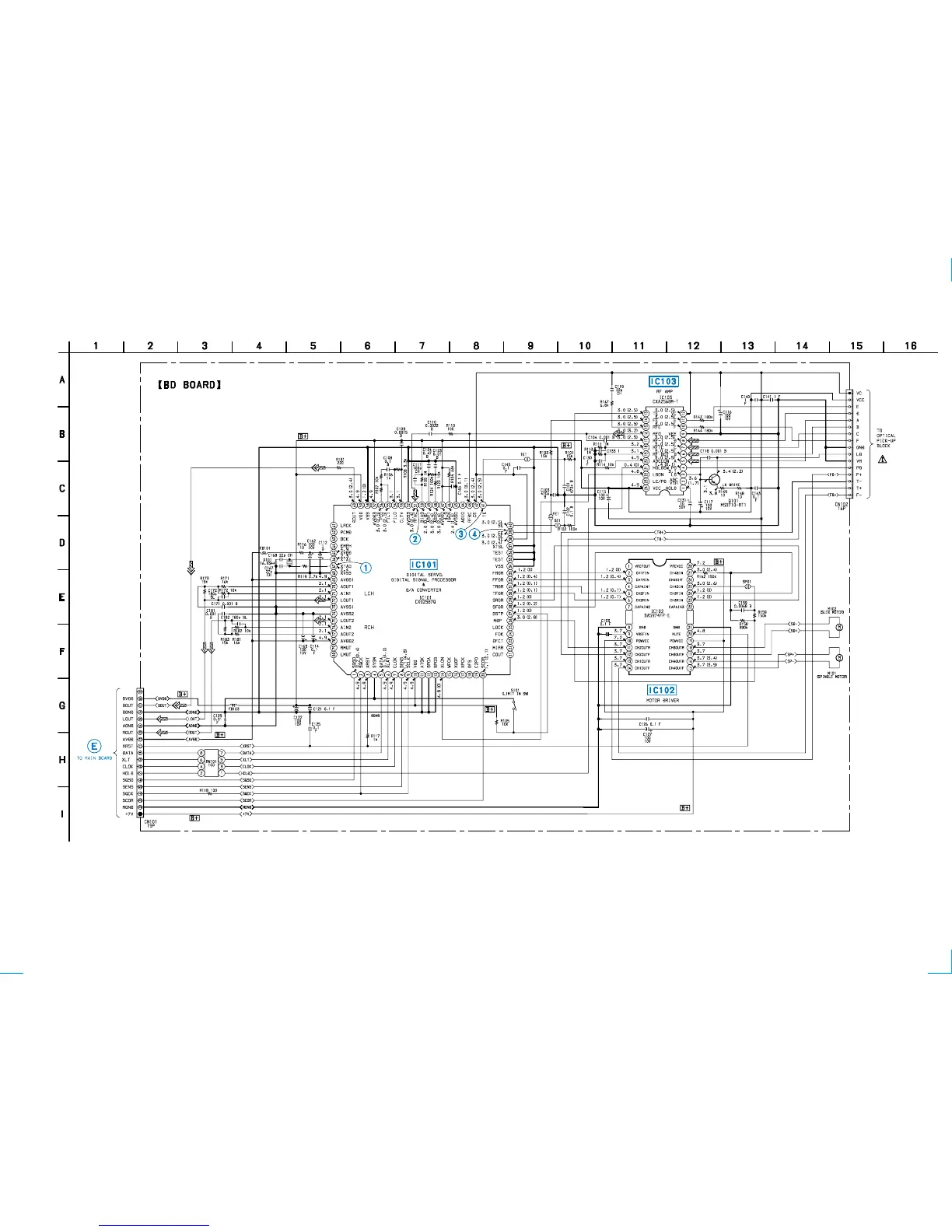

7-4. SCHEMATIC DIAGRAM – BD SECTION – • See page 21 for Wavefoms. • See page 46 for IC Block Diagrams.
(Page 29)
09
(KSM-213DAP)
