Sony HCD-BX9 - Panel Section Exploded View

50

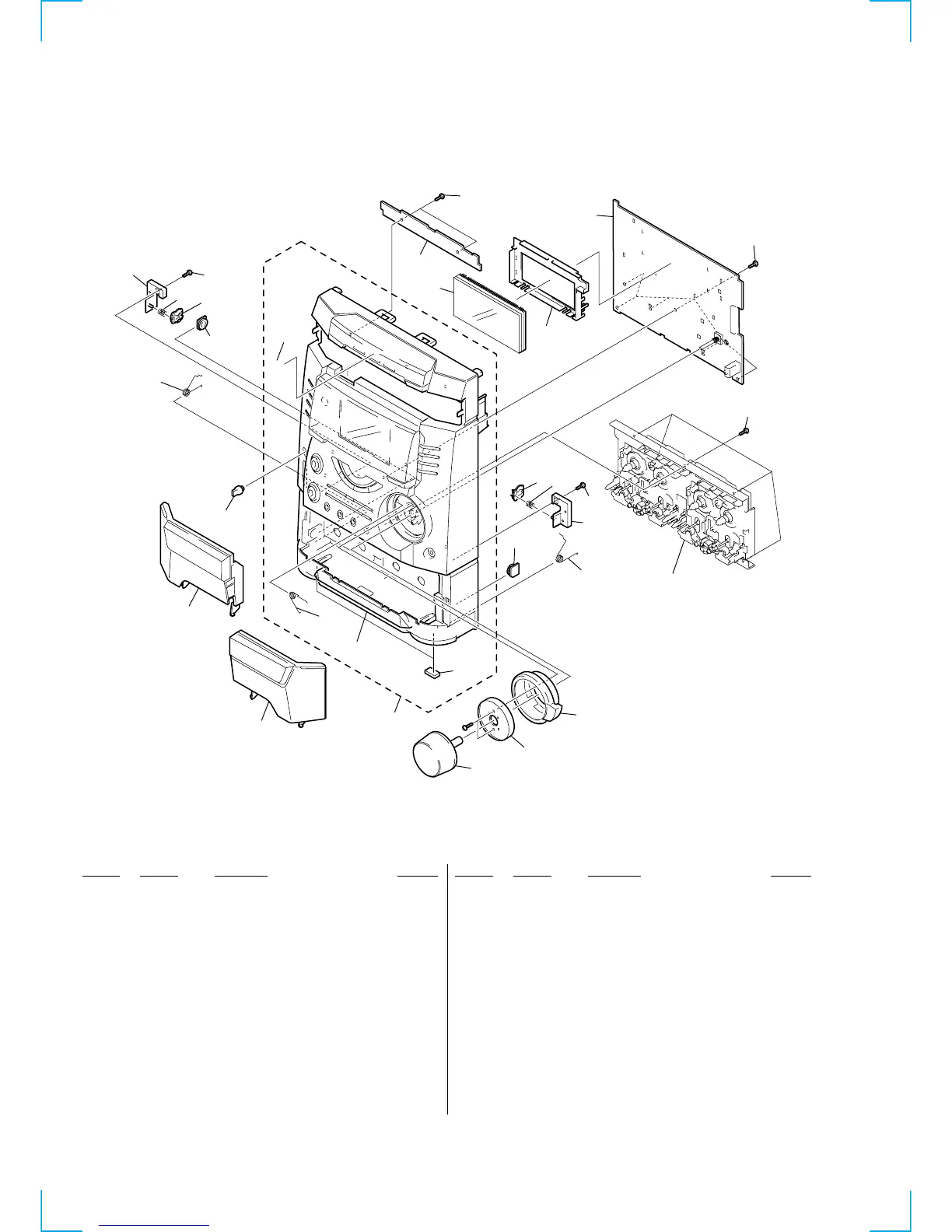

8-2. PANEL SECTION
S
51
52
53
56
69
58
57
70
71
59
59
63
64
65
66
54
55
* 67
67
67
67
61
60
60
62
* For service only
(Be sure to refer to "Service note" on page 4.)
Tape mechanism deck
FL601
68
67
not supplied
not supplied
#7
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 X-4952-418-1 TC HOLDER (L) ASSY(EXCEPT EA)
51 X-4952-792-1 TC HOLDER (L) ASSY(EA)
52 X-4952-730-1 TC HOLDER (R) ASSY(EXCEPT EA)
52 X-4952-794-1 TC HOLDER (R) ASSY(EA)
53 4-225-032-11 VOL KNOB
54 A-4428-077-A CD SWITCH BOARD, COMPLETE
55 4-962-708-81 EMBLEM (4-A), SONY
56 4-225-033-01 FR KNOB
57 X-4952-554-1 FRONT PANEL ASSY(BX9)
57 X-4952-673-1 FRONT PANEL ASSY(DX9)
58 4-224-562-01 BRACKET (HEART CAM L)
59 4-224-803-01 SPRING (PUSH),COMPRESSION COIL
60 4-224-104-21 DAMPER
61 4-224-560-01 CAM(L), HEART
62 4-224-559-01 CAM(R), HEART
63 4-224-561-01 BRACKET (HEART CAM R)
64 4-225-053-01 SPRING R
65 4-224-584-11 HOLDER (FL)
66 A-4428-075-A PANEL BOARD, COMPLETE(BX9)
66 A-4428-338-A PANEL BOARD, COMPLETE(EA)
66 A-4428-342-A PANEL BOARD, COMPLETE
(E,AR,MX,SP,MY,AUS)
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-224-578-11 KNOB(MIC)(DX9)
69 4-225-052-01 SPRING L
70 4-225-252-01 CUSHION (FOOT)
71 4-225-054-01 SPRING FR
FL601 1-517-928-11 INDICATOR TUBE, FLUORESCENT
