#3
#3
#3
#3
#5
#5
4
3
10
5
1
1
2
2
6
Front panel section
Chassis section
M961
9
8
7

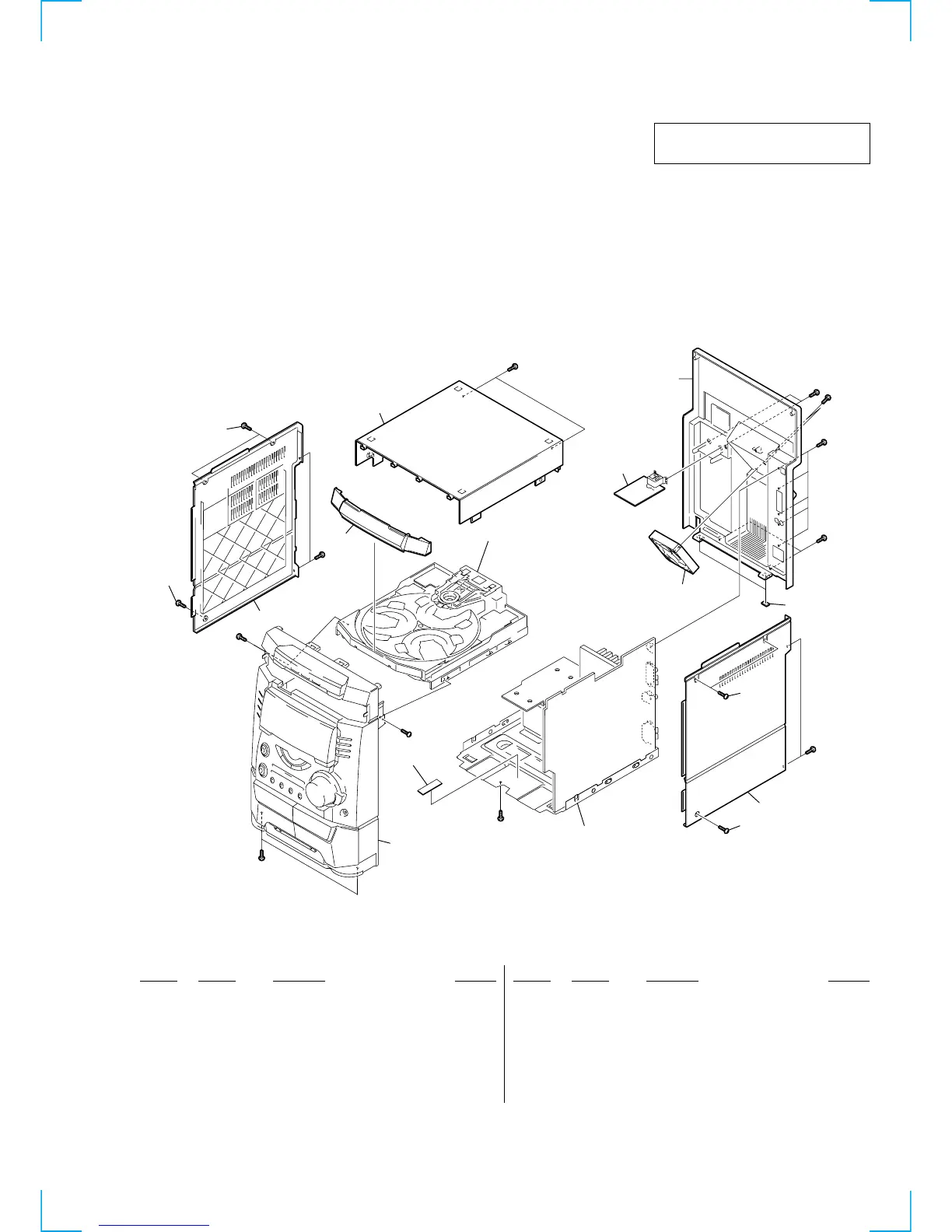

8-1. MAIN SECTION
1 3-363-099-01 SCREW(CASE 3 TP2)
2 3-363-099-41 SCREW(CASE 3 TP2)
3 4-225-038-31 SIDE PANEL L
4 X-4952-780-1 LOADING PANEL ASSY(BX9)
4 X-4952-781-1 LOADING PANEL ASSY(E,AR,MX,SP,MY,AUS)
4 X-4952-782-1 LOADING PANEL ASSY(EA)
5 4-225-039-31 SIDE PANEL R
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
6 4-224-550-01 UPPER CASE (TOP)
7 1-676-191-11 SUB-TRANS BOARD(BX9)
8 4-225-041-41 BACK PANEL(BX9,MX)
8 4-225-041-51 BACK PANEL(E,AR,SP,MY,EA,AUS)
9 4-225-252-01 CUSHION (FOOT)
10 3-831-441-11 CUSHION, SARANET
M961 1-763-072-11 FAN, D.C.
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
AED : North European model
AUS : Australian model
G : German model
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
MX : Mexican model
AR : Argentina model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
