Sony HCD-BX9 User Manual

HCD-BX9/DX9
30
30
(Page 40)
(Page 40)
(Page 26) (Page 26)
(Page 40)
G
TO
SUB TRANS
BOARD
NO504
13
(
)
EP502

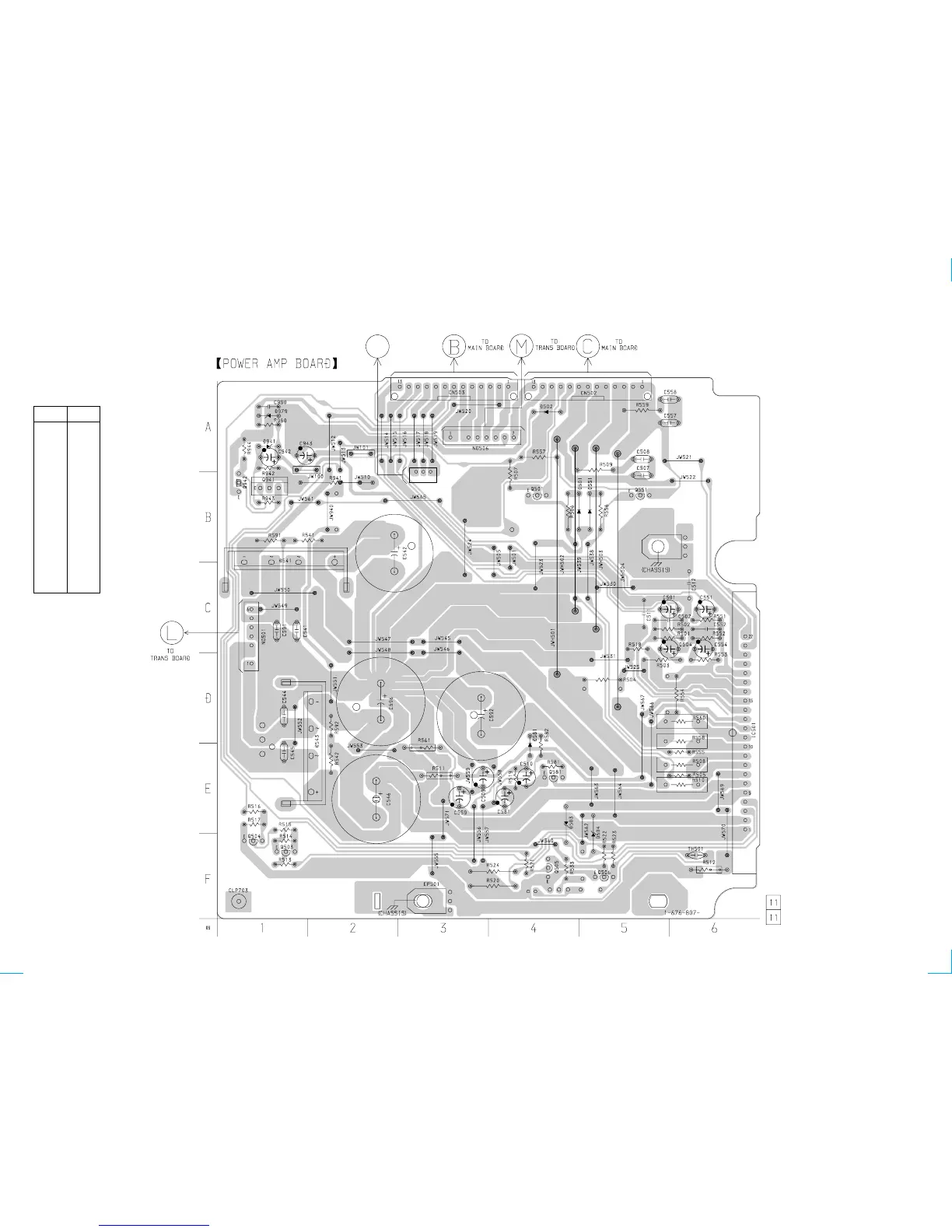

7-9. PRINTED WIRING BOARD – POWER AMP SECTION – (BX9 MODEL) • See page 21 for Circuit Boards Location.
Ref. No. Location
D501 B-4
D502 A-4
D503 E-4
D504 E-5
D541 B-1
D543 E-2
D551 B-4
D581 D-4
D941 A-1
D979 A-1
IC501 D-6
Q501 B-4
Q503 F-1
Q504 F-1
Q505 F-4
Q506 F-5
Q551 B-5
Q581 E-4
Q941 B-1
Q942 B-1
• Semiconductor
Location

Sony HCD-BX9 Specifications

General

CD Player	Yes
Cassette Player	Yes
Frequency Response	20 Hz - 20 kHz
Functions	CD, Cassette
Supported Disc Types	CD, CD-R, CD-RW
Type	Mini Hi-Fi System
