Sony HCD-BX9 - Printed Wiring Board - Main Section

HCD-BX9/DX9
26
26
12
A
B
C
D
E
F
G
3456789
(Page 24)
(Page 34)
TO LEAF SW BOARD
(Page 36)
(Page 36)
(Page 30, 32) (Page 30, 32)
TO DRIVER BOARD
(Page 38)
DX9 MODEL
BX9 MODEL
BX9 MODEL
BX9 MODEL
DX9
MODEL
(Page 36)
JR917
09
DX9 MODEL
DX9
MODEL
JR928
DX9
MODEL
BX9
MODEL
DX9
MODEL
FE601: DX9
FE603: BX9
DX9 MODEL
BX9 MODEL
BX9 MODEL
M961
BX9 MODEL
DX9 MODEL
DX9 MODEL

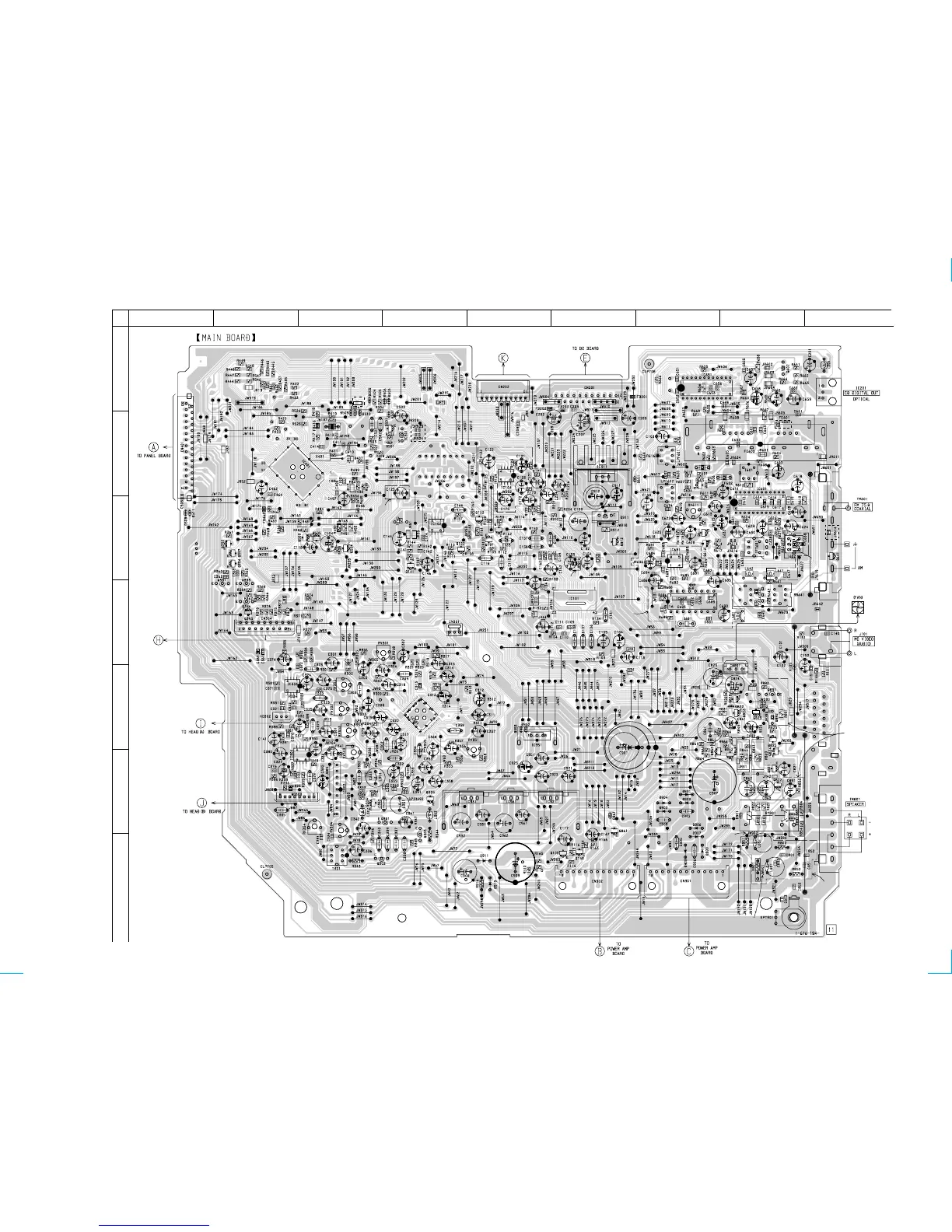

7-5. PRINTED WIRING BOARD – MAIN SECTION – • See page 21 for Circuit Boards Location.
