Sony HCD-BX9 - Main Board Exploded View

51

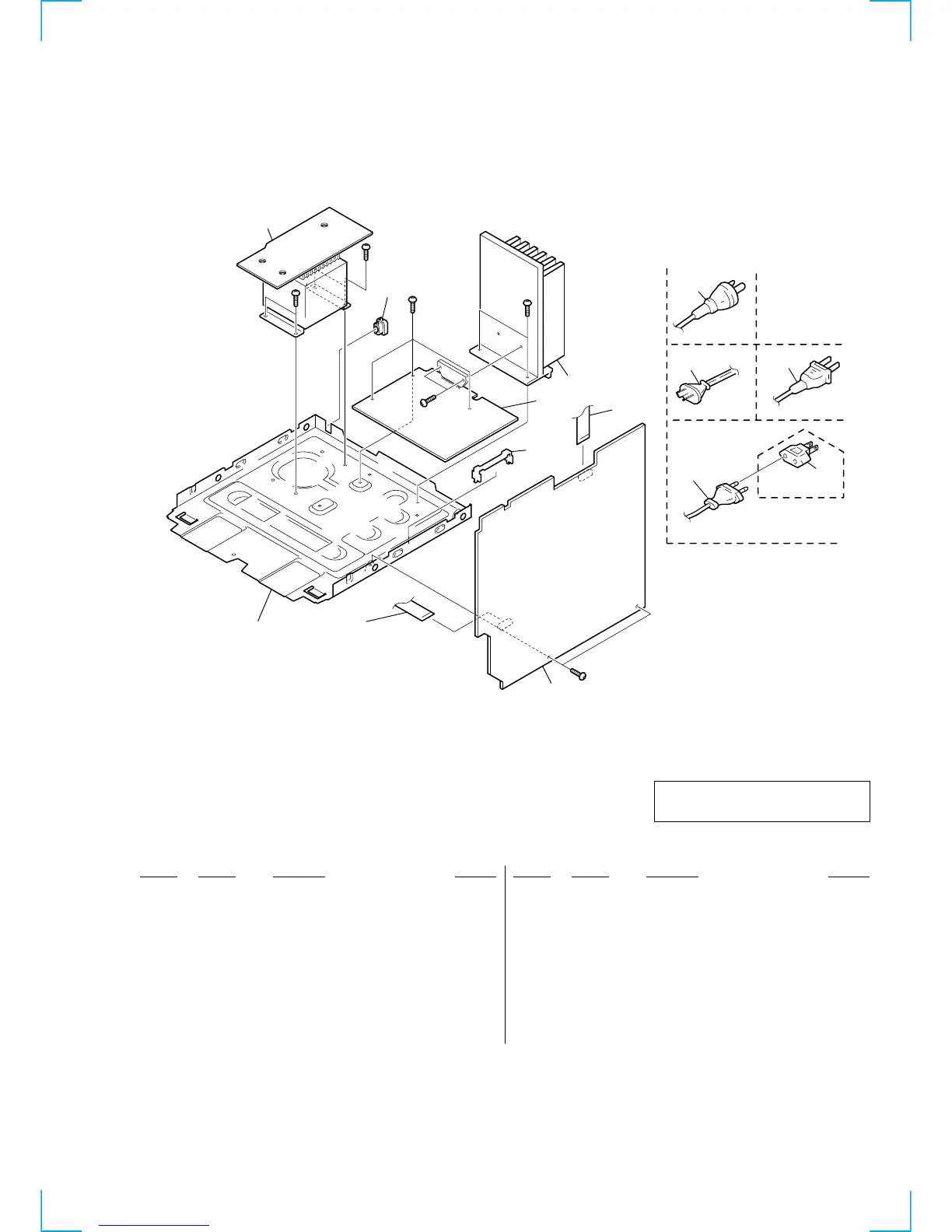

8-3. MAIN BOARD SECTION
MX
AUS
BX9,E,SP,MY,EA
AR
#3
#3
#4
#6
#2
#6
109
108
108
103
107
106
101
102
104
105
not supplied
not supplied
108
108
E,EA,MY,SP
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
102 A-4428-507-A MAIN BOARD, COMPLETE (BX9)
102 A-4428-512-A MAIN BOARD, COMPLETE (SP,MY)
102 A-4473-080-A MAIN BOARD, COMPLETE (EA)
102 A-4473-087-A MAIN BOARD, COMPLETE (E)
102 A-4473-090-A MAIN BOARD, COMPLETE (AUS)
102 A-4473-093-A MAIN BOARD, COMPLETE (AR,MX)
* 103 4-988-533-01 HOLDER, PWB
104 1-773-122-11 WIRE (FLAT TYPE) (19 CORE)
105 1-676-808-11 TRANS BOARD
106 3-703-244-00 BUSHING (FBS001), CORD(EXCEPT E,MX)
106 4-966-266-01 BUSHING (S) (FBS002), CORD(E,MX)
107 A-4428-503-A POWER AMP BOARD, COMPLETE(BX9)
107 A-4428-509-A POWER AMP BOARD, COMPLETE(DX9)
0108 1-696-847-11 CORD, POWER(AUS)
0108 1-777-071-21 CORD, POWER(BX9)
0108 1-777-071-51 CORD, POWER(E,SP,MY,EA)
0108 1-782-315-11 CORD, POWER(MX)
0108 1-783-941-11 CORD, POWER(AR)
0109 1-785-504-11 ADAPTOR, CONVERSION(E,SP,MY,EA)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
