Sony HCD-BX9 - Panel Board Removal; Sub-Trans and Trans Board Removal

9
qs Two screws
(+BVTT 4
× 8)
3 Two screws
(+BVTP 3
× 8)
6 Six screws
(+BVTP 3
× 10
)
5 Two screws
(+BVTP 3
× 10)
8 Panel, back
qa Two screws (+BVTT 4 × 8)
qf Trans board
4 Sub-trans
board
qd Trans
1 Connector (CN975)
9 Connector (CN975)
0 Connector (CN977)
7 Connector (CN891)
2 Connector (CN974)

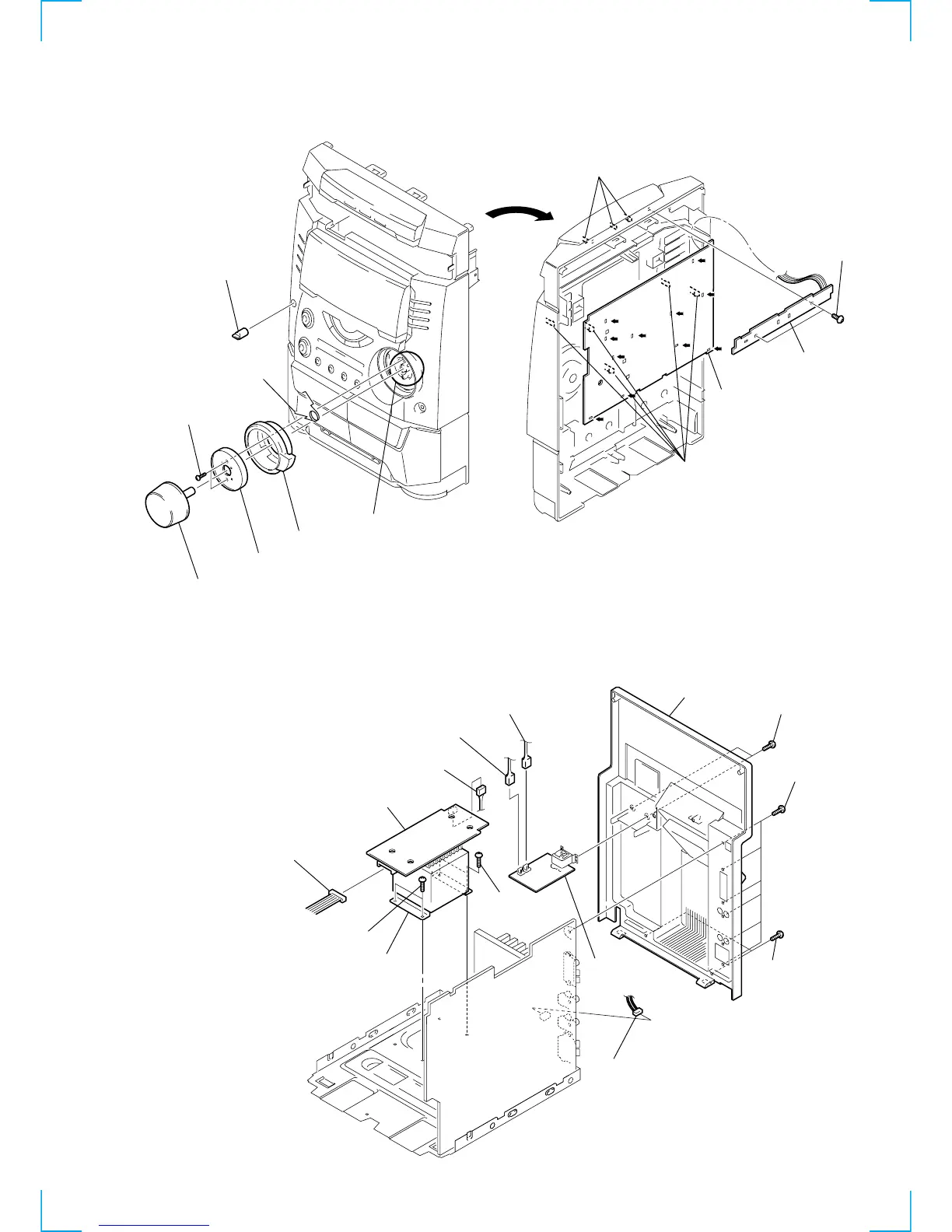

3-5. PANEL BOARD
3-6. SUB-TRANS BOARD AND TRANS BOARD
qs Cut the eleven melted-connection points with a cutting plier.
Note: When attching the panel board,
refer to "Service Note" on page 4.
qf Panel board
qa CD Switch boar
d
1 Knob (Volume)
8
5
FR knob
4 Bracket (FR)
qd Five claws
0 Three claws
9 Two screws
(+BVTP 2.6
× 8)
3 Two bosses & four pins
6 Spring
2 Two screws
(+BVTP 2.6
× 8)
7 Knob(MIC)
