Sony HCD-CPX1 - 3-2. CASE

HCD-CPX1
11

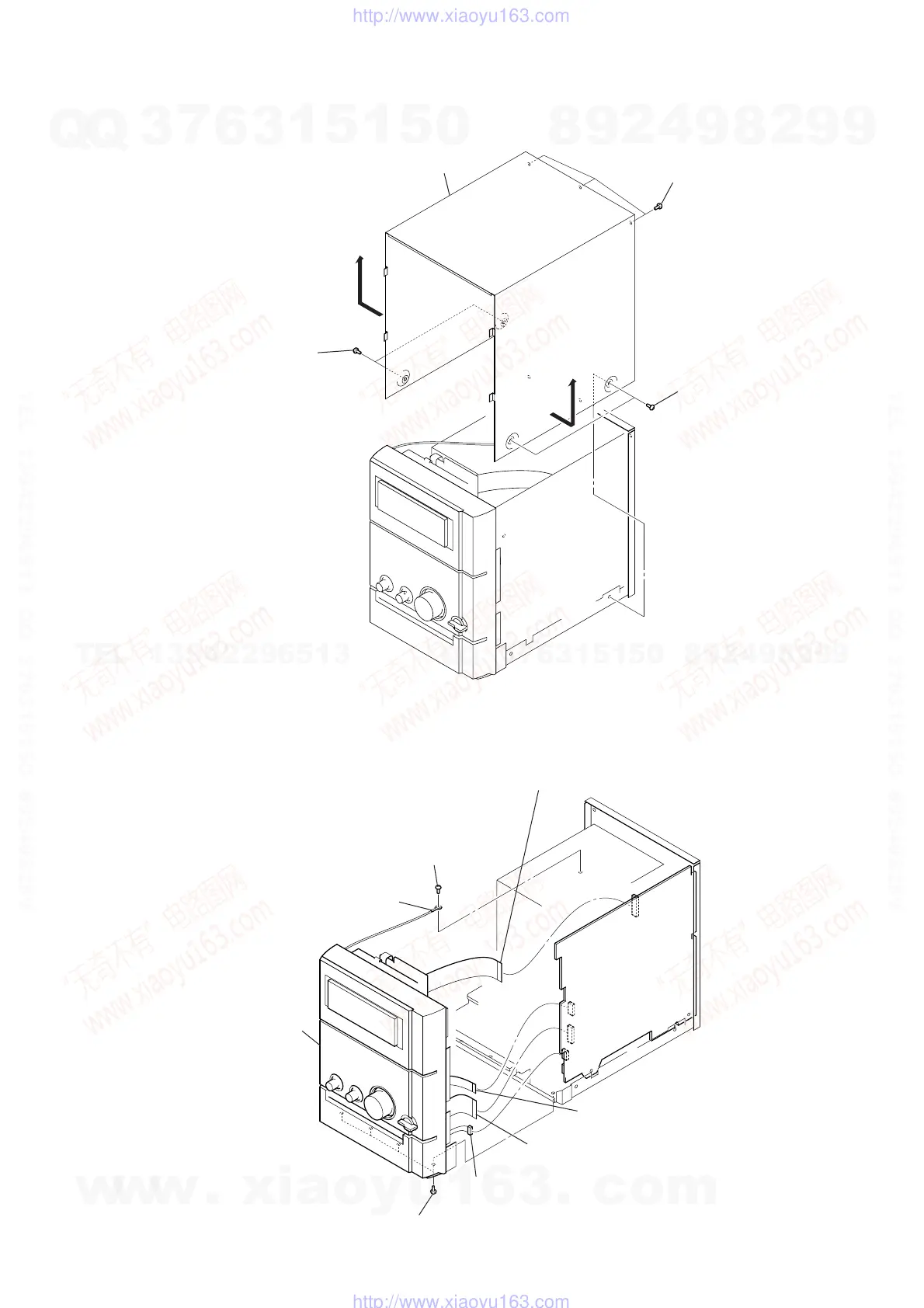

3-3. FRONT PANEL SECTION
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
1 two case screws
3
3
4 case
2 three screws
(BVTP3
× 6)
1 two case screws
1 screw
(BVTP3
× 6)
2 ground wire lead
6 front panel section
5 four screws
(BVTP3
× 6)
4 connector
(CN102)
3 wire (flat type) (19 core)
(CN402)
3 wire (flat type) (9 core
)
(CN403)
3 wire (flat type) (19 core)
(CN221)
