54
HCD-CPX1

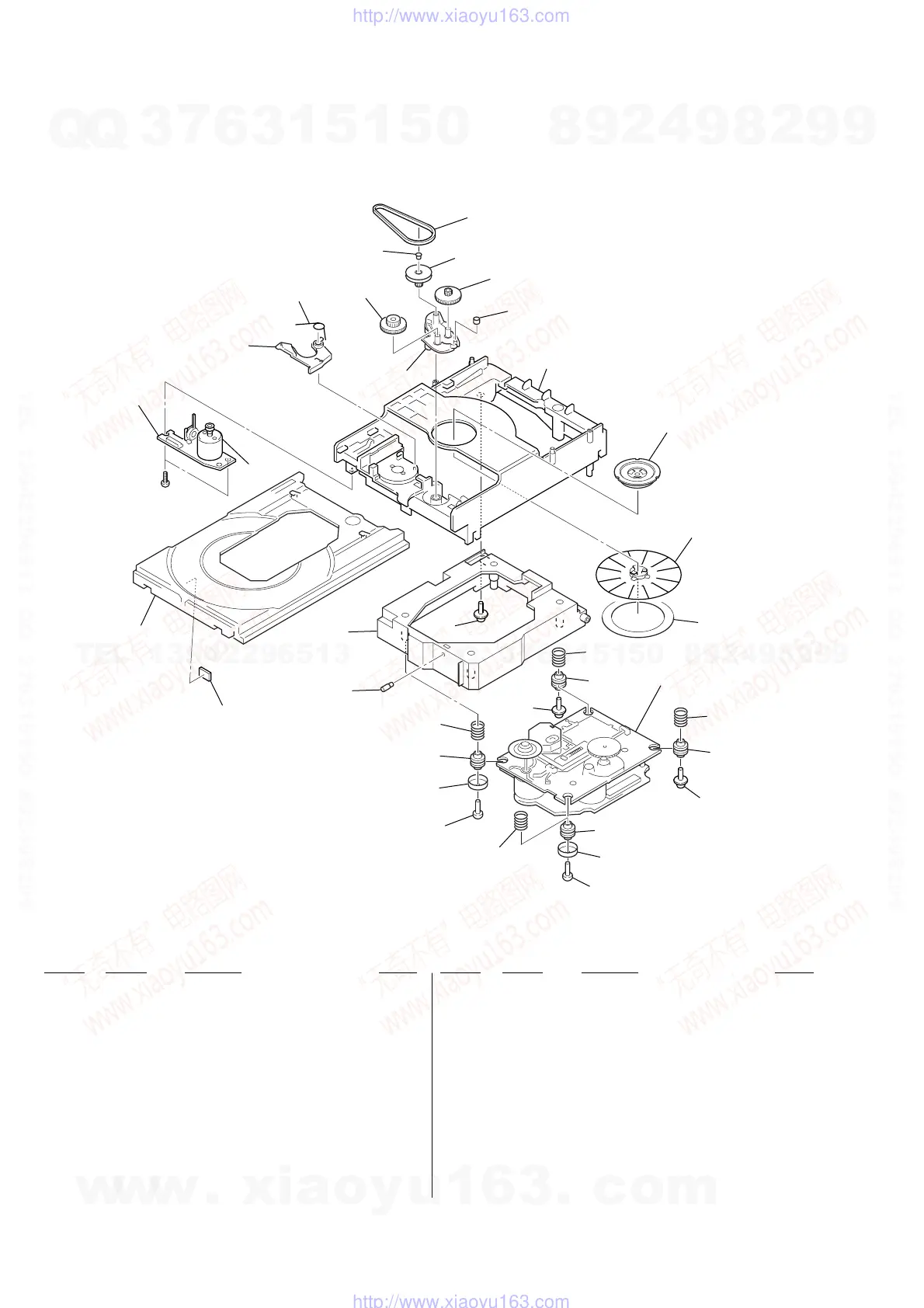

7-8. CD MECHANISM DECK SECTION
(CDM55A-K6BD44S)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
501 4-925-315-31 DAMPER
502 4-224-894-22 TRAY (CDM55D)
503 1-674-336-12 LOADING BOARD
504 4-220-229-02 LEVER (SW)
505 4-220-239-01 SPRING, TORSION
506 4-220-233-01 CAM (CDM55)
507 4-220-238-01 GEAR (B)
508 4-227-598-01 SPACER (55)
509 4-221-816-01 BELT (CDM55)
510 4-220-234-01 PULLEY (LDG)
511 4-220-237-01 GEAR (A)
512 4-221-815-11 ROLLER
513 A-4735-082-A MAGNET ASSY
514 4-231-777-02 SHEET (KH2)
515 4-218-252-31 SCREW (+PTPWH M2.6), FLOATING
516 4-229-358-01 SHAFT (BU21)
517 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
518 4-244-962-01 HOLDER (C213)
519 4-244-959-01 SPRING (T213), COMPRESSION
520 4-227-549-11 INSULATOR
521 4-231-151-01 STOPPER (BU)
522 4-218-253-31 SCREW (M2.6), +BTTP
M201 A-4735-337-A MOTOR (LD) ASSY (LOADING)
#5 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
517
518
516
519
520
521
522
519
514
520
515
519
520
515
519
520
521
522
BU-K6BD44S
505
504
507
509
510
511
512
506
502
503
508
501
513
M201
#5
not supplied
not supplied
