55
HCD-CPX1

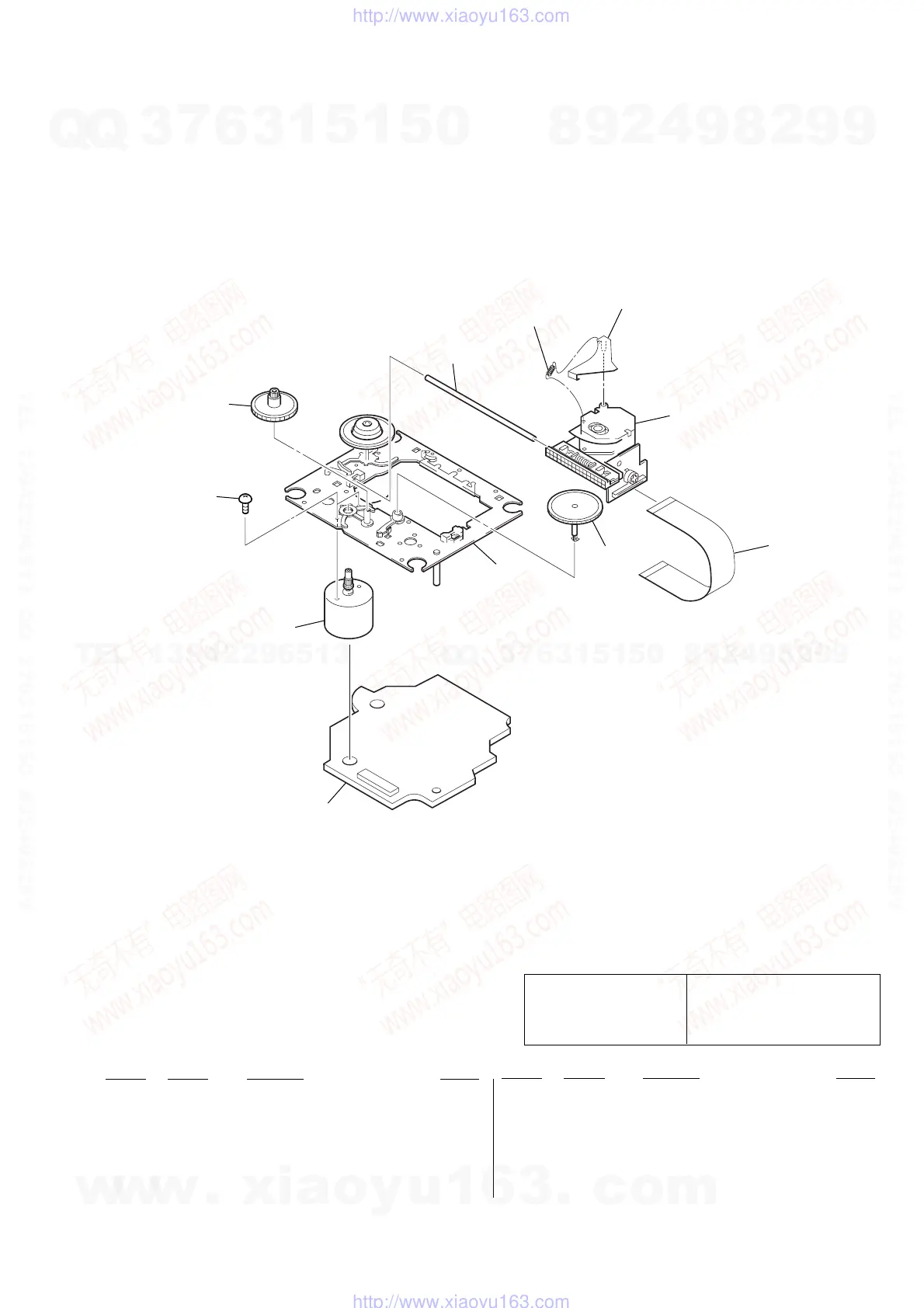

7-9. BASE UNIT SECTION
(BU-K6BD44S)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
551 A-4731-164-A BD BOARD, COMPLETE
552 3-713-786-51 SCREW (M2X3)
553 2-627-003-01 GEAR (B) (RP)
554 2-626-908-51 SHAFT, SLED
555 2-646-702-01 SPRING, EXTENSION
556 2-646-697-02 SHUTTER (F), LENS
0557 8-820-020-11 OPTICAL PICK-UP KSS-213D/Z-RP
558 1-792-024-11 WIRE (FLAT TYPE) (16 CORE)
559 2-625-188-02 GEAR (A)
M101 X-2161-802-1 CHASSIS ASSY (DCP), T.T (SPINDLE)
M102 X-2625-769-1 GEAR ASSY (MB) (RP), MOTOR (SLED)
552
553
551
M102
M101
554
555
559
557
558
556
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
