Sony HCD-CPX1 - Loading Board; Cam (CDM55)

HCD-CPX1
14

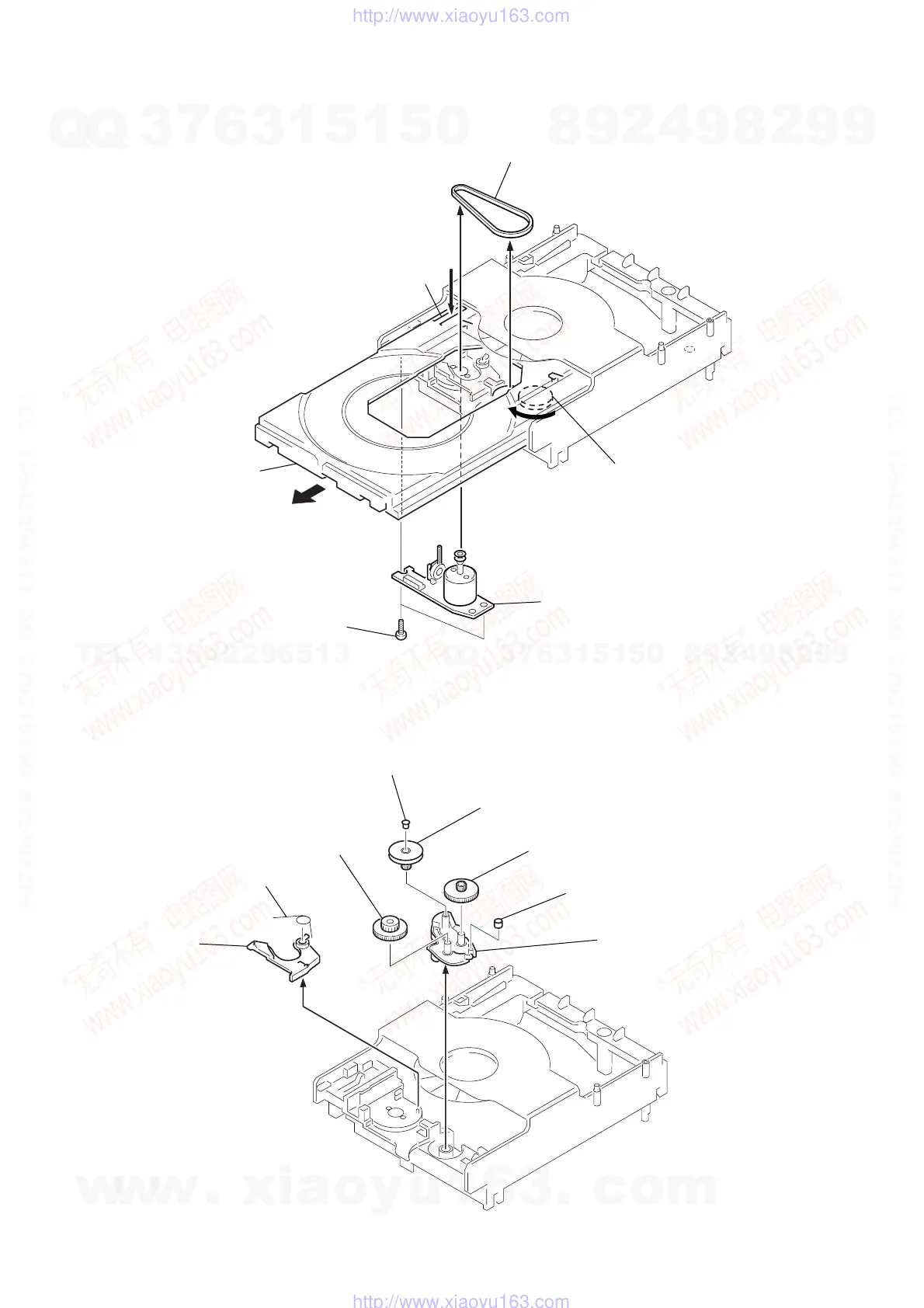

3-8. LOADING BOARD
3-9. CAM (CDM55)
2 belt (CDM55)
B
3 Pull the tray (CDM55D) pushing B .
4 two screws
(BTP2.6
× 8)
5 loading board
1 Rotate the gear(A) in
the direction of arrow
A .
A
2 lever (SW)
1 torsion spring
6 gear (A)
3 spacer (55)
4 pulley (LDG)
5 gear (B)
7 roller
8 cam (CDM55
)
