— 97 —

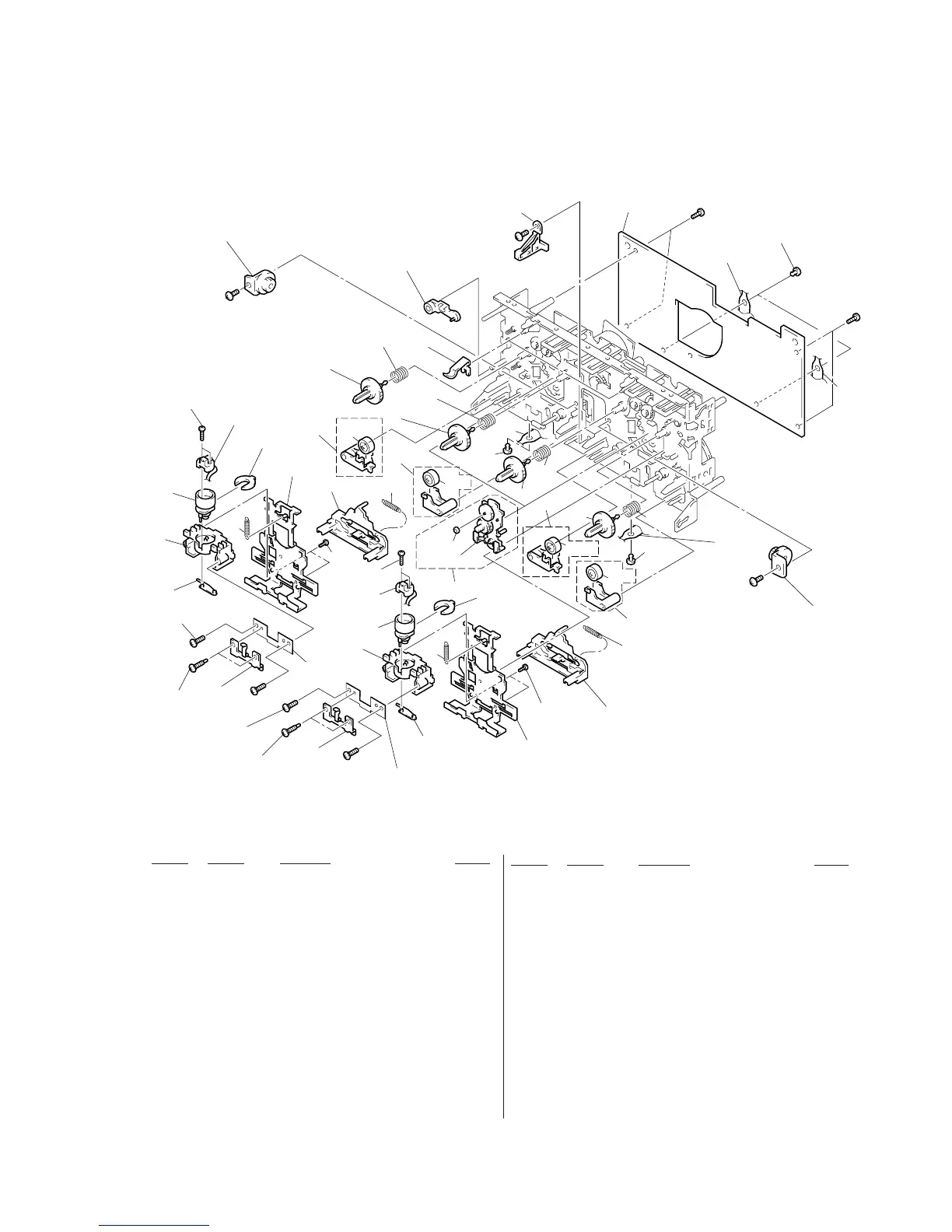

8-5. TC MECHANISM SECTION 1 (TCM-220WR2)
251 3-908-560-01 SPRING, AZIMUTH ADJUSTMENT
252 3-919-684-01 SCREW, AZIMUTH ADJUSTMENT
* 253 X-3373-113-1 SLIDER (HEAD) ASSY
254 3-908-556-01 SPRING, HEAD TOGGLE
255 3-908-558-02 FITTING BLOCK, HEAD
256 3-908-557-02 ROTARY BLOCK, HEAD
* 257 3-908-559-01 STOPPER, AZIMUTH
258 3-908-555-01 SLIDER (REV SLIDER)
259 3-917-143-11 SPRING, TENSION
260 3-388-848-01 SCREW (P2X6)(B TIGHT)
261 3-939-371-01 SPRING (1), TENSION
262 X-3369-909-1 PINCH LEVER (REV) ASSY
263 X-3369-908-1 PINCH LEVER (FWD) ASSY
264 3-908-613-01 GEAR (S), REEL
265 3-917-141-01 SPRING, COMPRESSION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
266 X-3371-305-1 REEL (T) ASSY
267 3-669-465-01 WASHER (1.5), STOPPER
268 X-3370-173-1 TU ASSY
269 3-939-862-01 CLIP
* 271 A-2007-131-A AUDIO BOARD, COMPLETE
272 3-930-972-01 DETENT, HALF
273 3-917-142-01 SPRING, COMPRESSION
274 3-355-808-02 PINCH ROLLER
275 3-938-863-01 STOPPER
276 3-354-963-01 DAMPER
* 277 4-980-439-01 FULCRUM, HOLDER
HP101 1-500-093-11 HEAD, MAGNETIC (PLAYBACK)
HRPE1011-500-094-11 HEAD, MAGNETIC (REC/PB/ERASE)
271
(including
p
A)
269
#12
253
257
#12
275
#13
277
276
#13
272
265
264
256
262
265
274
274
258
263
261
262
264
263
not supplied
not supplied
257
256
255
not supplied
251
254
252
251
252
#11
#11
not supplied
260
258
#13
259
254
253
276
261
HRPE101
(including
r
B)
269
273
266
255
260
not supplied
259
274
r
B
r
B
r
A
268
HRPE101
(including
r
A)
not
supplied
not supplied
269
266
273
267
274
r
A
To Next Page
