Sony HCD-D90AV - DISASSEMBLY PROCEDURES; LOADING PANEL AND FRONT PANEL DISASSEMBLY

— 8 —
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

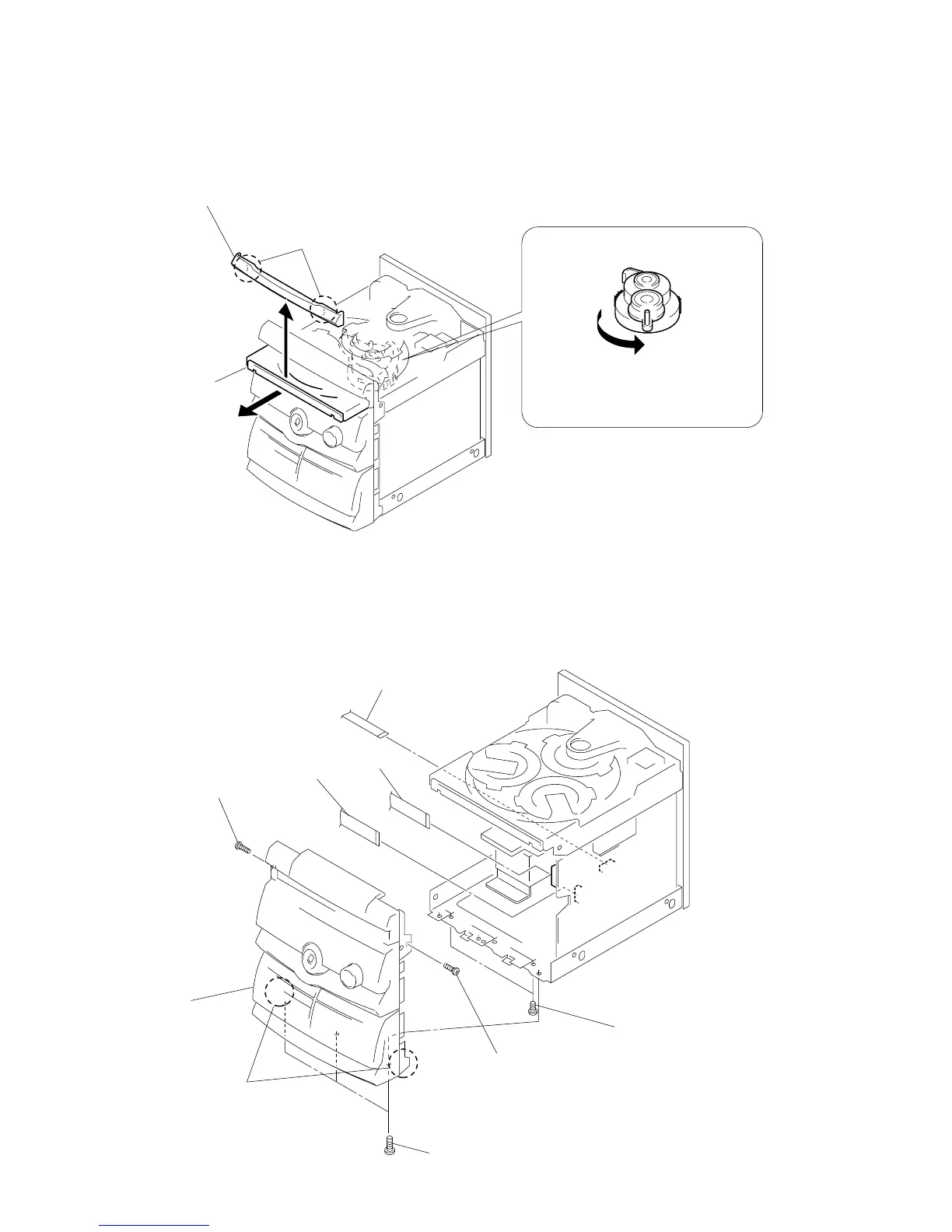

3-1. LOADING PANEL
1 Turn the cam to the direction
of arrow.
2 Pull-out the disc tray.
3 Loading panel
3-2. FRONT PANEL
1 Remove the connectors.
(Main board : CN401, CN402, CN701)
2 Two screws (+BVTT3x6)
3 Three screws (+BVTT3x6)
4 Screw (+BVTP3x10)
5 Screw (+BVTP3x10)
6 Claws
7 Front panel
assembly
CN401
CN701
CN402
Claws
