Sony HCD-D90AV - CD Mechanism Section 2 (CDM38 L-5 BD29 AL)

— 100 —

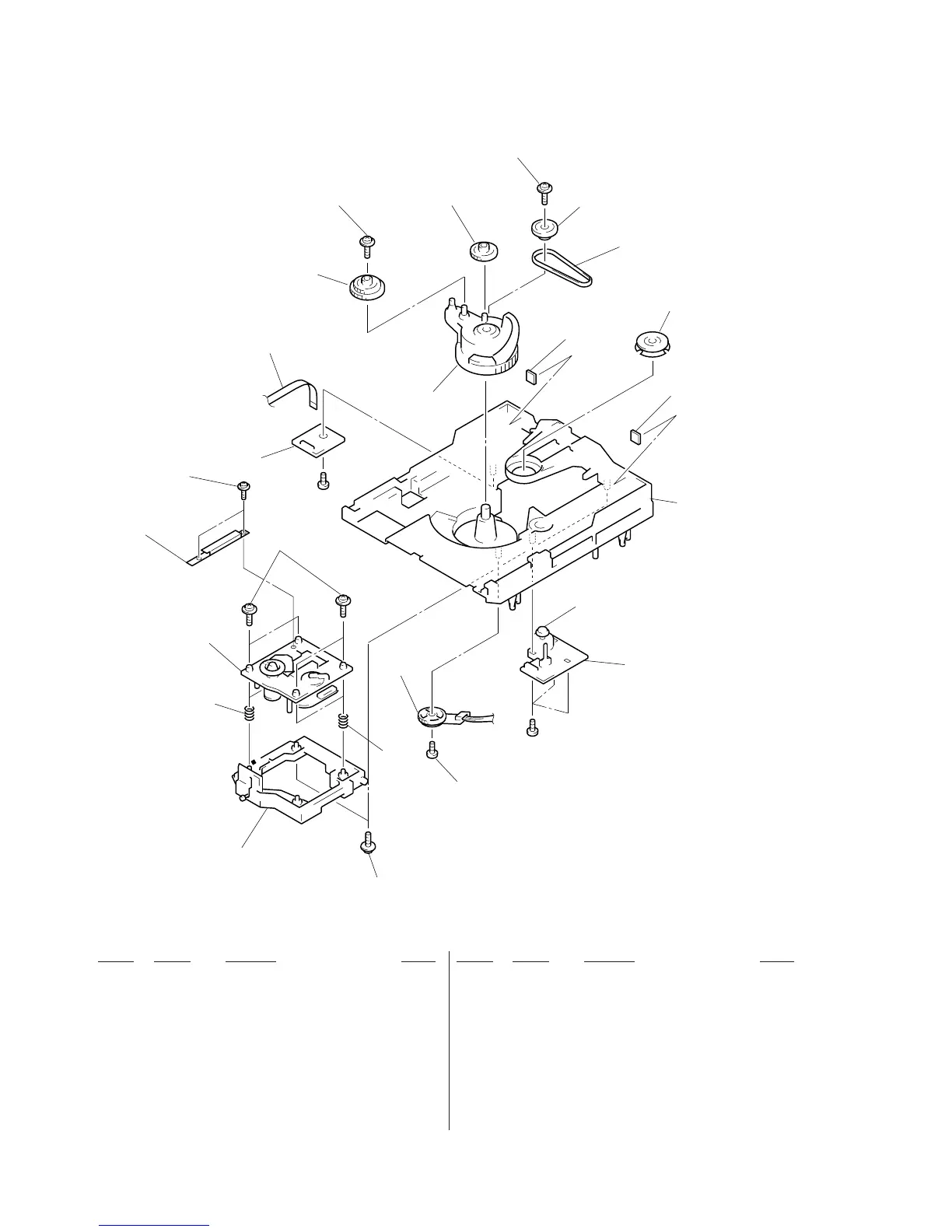

8-8. CD MECHANISM SECTION 2 (CDM38L-5BD29AL)
401 4-917-583-71 BRACKET, YOKE
402 4-977-954-01 PULLEY (SL)
403 4-977-953-01 GEAR (SL-A)
404 4-977-955-01 GEAR (SL-B)
405 4-977-942-01 BELT (SL) (1.4)
406 X-4946-667-1 CAM ASSY, BU
407 1-452-538-11 MAGNET
408 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)
* 409 1-658-575-11 CONNECTOR BOARD
* 410 X-4946-668-1 CHASSIS (CDM) ASSY
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
411 4-985-672-01 SCREW (+PTPWH M2.6X6), FLOATING
* 412 1-658-578-11 MOTOR (SLIDE) BOARD
413 4-958-593-01 SPRING (BU), COMPRESSION
414 4-951-620-41 SCREW (2.6), +BVTP
* 415 X-4946-666-1 HOLDER (BU) ASSY
416 4-985-672-01 SCREW (SLIDER), STEP
417 4-989-492-01 SLIDER (38)
M801 A-4672-004-A MOTOR ASSY (SLIDE)
S811 1-473-335-11 ENCODER, ROTARY (BU, TRAY ADDRESS DET)
407
406
not supplied
not supplied
410
BU-5BD29AL
S811
#1
404
408
#1
M801
412
401
401
402
403
405
411
413
415
401
414
413
416
417
409
