Ref. No. Part No. Description Remark
351 4-917-583-21 BRACKET, YOKE
352 4-977-945-01 TRAY (TURN)
353 X-4946-665-1 SHAFT ASSY, WORM
354 4-977-943-01 BELT (TURN) (1.2)
355 4-977-956-01 WHEEL, WORM
* 356 1-658-577-11 MOTOR (TURN) BOARD
357 X-4924-457-1 ROLLER ASSY
Ref. No. Part No. Description Remark
358 4-977-941-01 BEARING (WORM)
* 359 1-658-576-11 SENSOR BOARD
360 4-934-376-01 SHAFT (ROLLER)
361 4-981-187-01 COLLAR (WORM)
362 4-977-944-01 TRAY (SLIDE)
M701 A-4672-004-A MOTOR ASSY (TURN)

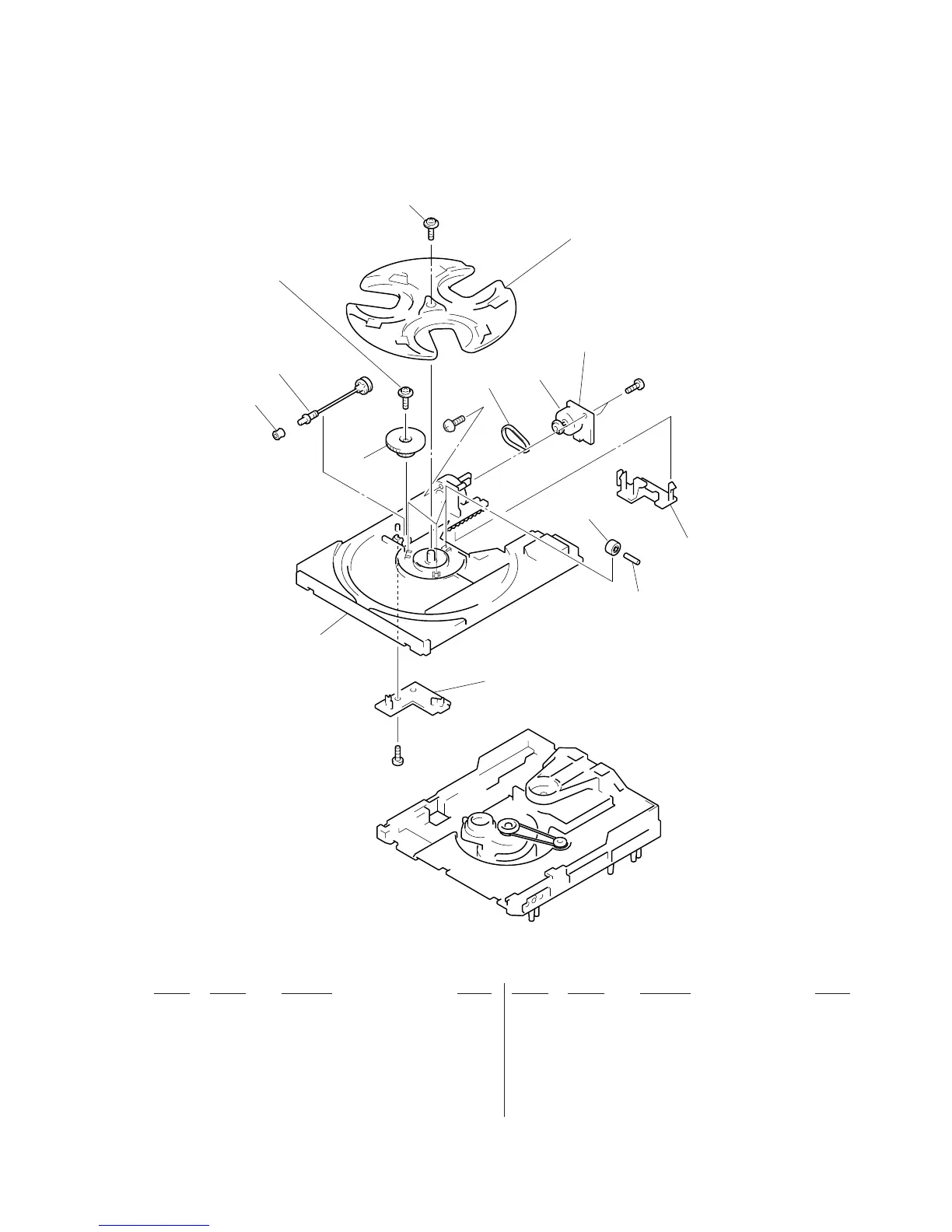

8-7. CD MECHANISM SECTION 1 (CDM38L-5BD29AL)
M701
#1
354
#6
353
355
357
359
#1
360
358
361
352
356
362
351
351
