Sony HCD-D90AV - MECHANICAL ASSEMBLY DISASSEMBLY; TC MECHANISM DECK AND OTHER BOARDS DISASSEMBLY

— 9 —

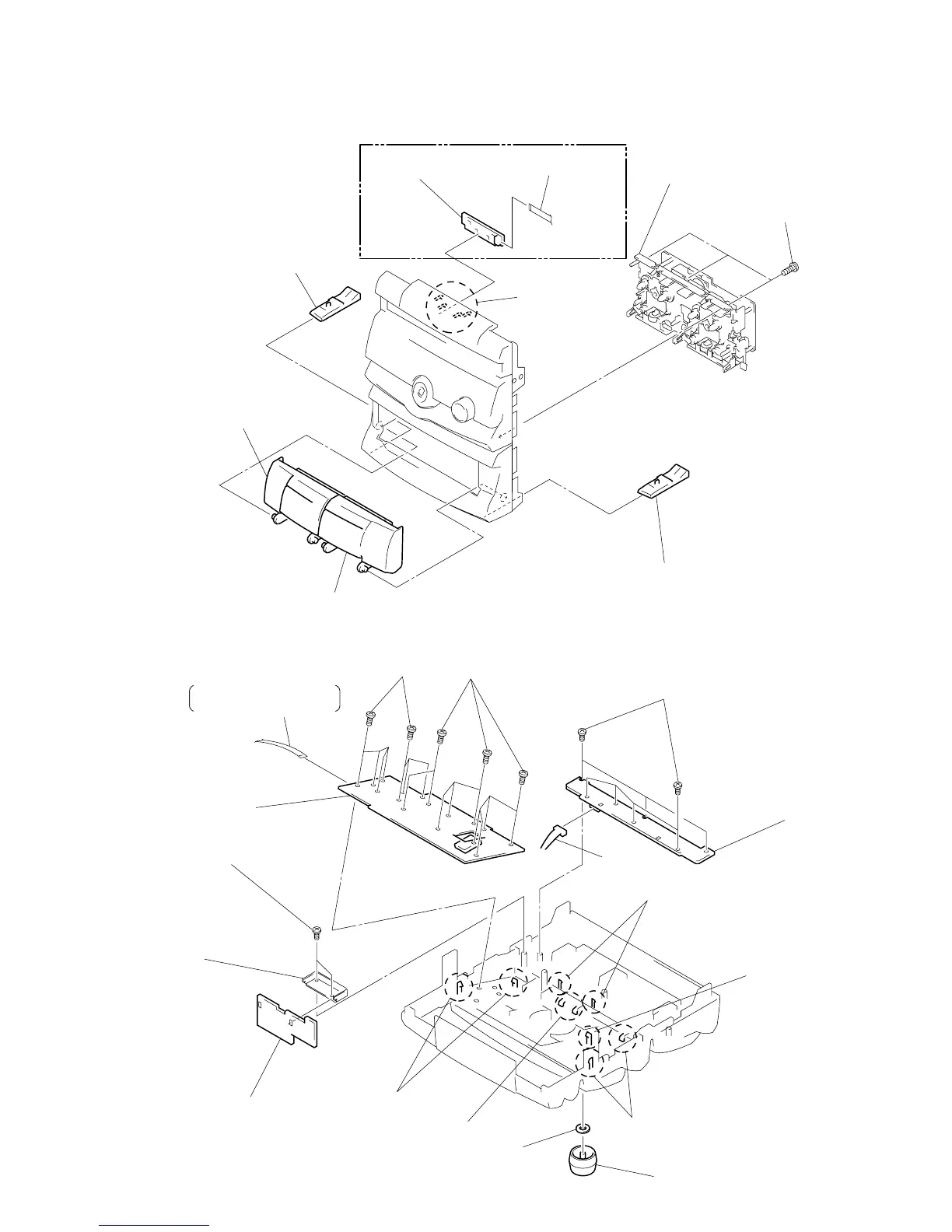

3-3. TC MECHANISM DECK AND DECO BOARD (Except US, CND)
1 Push the buttons (EJECT) 4 and 5 .
1 Two screws
(+BVTP2.6x8)
2 Bracket (HP)
3 HP/MIC board
4 Knob (Vol)
5 Nut
6 Flat type wire
8 core : US, CND
10 core : Except : US, CND
7 Seven screws
(+BVTP2.6x8)
8 Nine screws
(+BVTP2.6x8)
9 Claws
0 Claws
!¡ Claws
!™ Claw
!£ Display board
!¢ Seven screws
(+BVTP2.6x8)
!∞ Claws
!§ TC SW board
!¶ Connector
(CN607)
3-4. HP/MIC BOARD, DISPLAY BOARD AND TC SW BOARD
7 Cassette lid (B) assembly
4 Button (EJECT)
2 Three screws
(+BVTP2.6x8)
3 TC mechanism deck
8 DECO board
5 Button (EJECT)
6 Cassette lid (A)
assembly
Except US, CND
9 Flat type wire (5 core)
Claws
• Abbreviation
CND: Canadian model
