Sony HCD-EP404 - 7 Exploded Views; Cabinet Section

31
HCD-EP404
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• The mechanical parts with no reference number
in the exploded views are not supplied.
SECTION 7
EXPLODED VIEWS
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

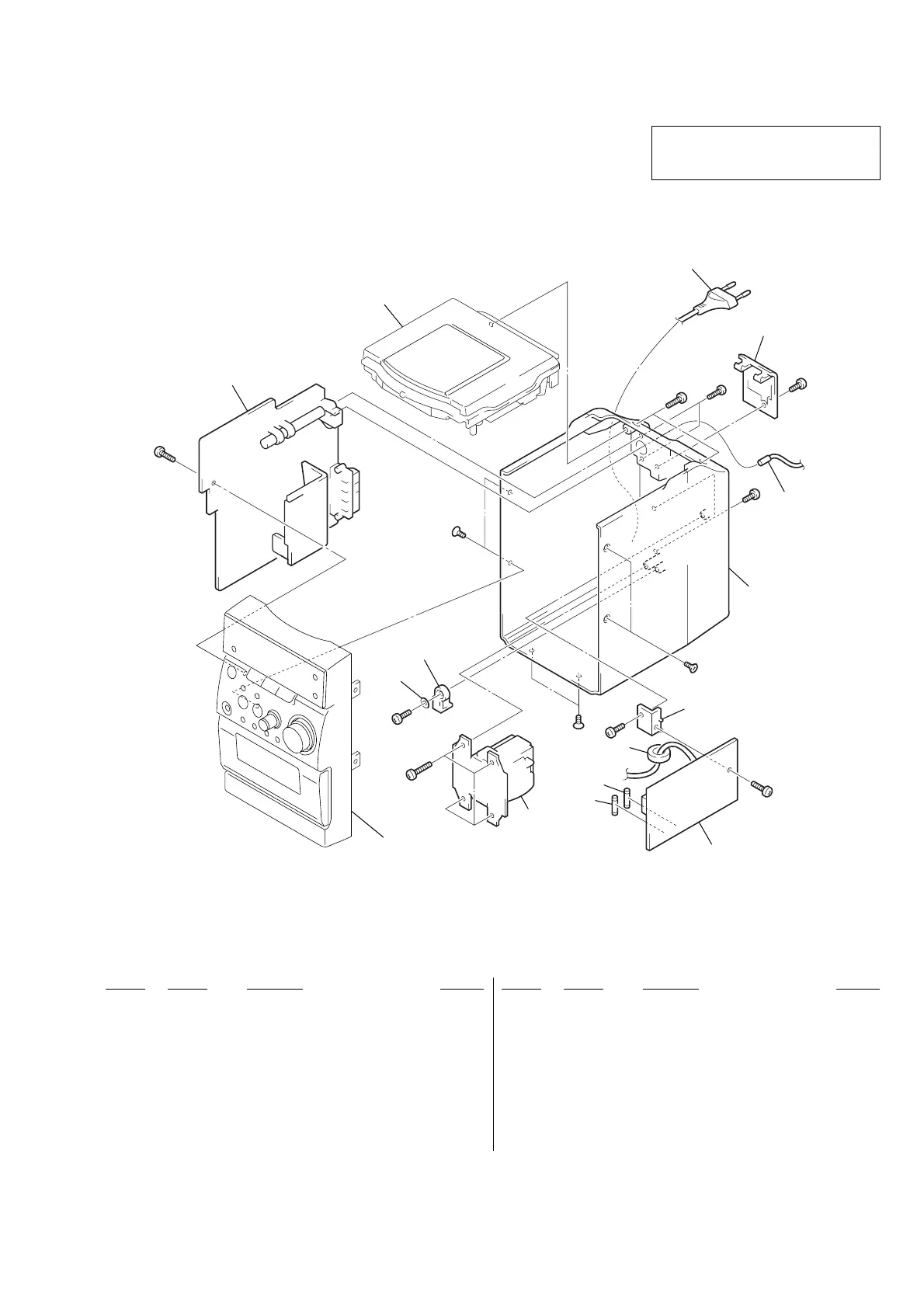

7-1. Cabinet Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
12
5
1
2
8
7
6
#1
#1
#4
#2
#
2
#2
#2
#3
#5
Front panel section
F202
T201
F201
CD cabinet section
#3
#3
#1
3
not
supplied
not
supplied
1 3-451-162-00 WASHER
2 4-235-952-01 AC CORD HOLDER
3 1-500-712-11 CORE, FERRITE
5 A-4729-695-A MAIN BOARD, COMPLETE
0 6 1-555-750-00 CORD, POWER (AEP)
0 6 1-696-535-11 CORD, POWER (UK)
7 4-235-974-01 CAB, ANTENNA COVER
8 1-823-170-11 CORD (WITH CONNECTOR) (FM ANT)
12 A-4729-696-A POWER BOARD, COMPLETE
0 F201 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4AL/250V
0 F202 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2AL/250V
0 T201 1-437-513-11 TRANSFORMER, POWER -
#1 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
#2 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT
#3 7-682-246-04 SCREW +K 3X5
#4 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S
#5 7-685-648-14 SCREW +BVTP 3X12 TYPE2 SLIT
