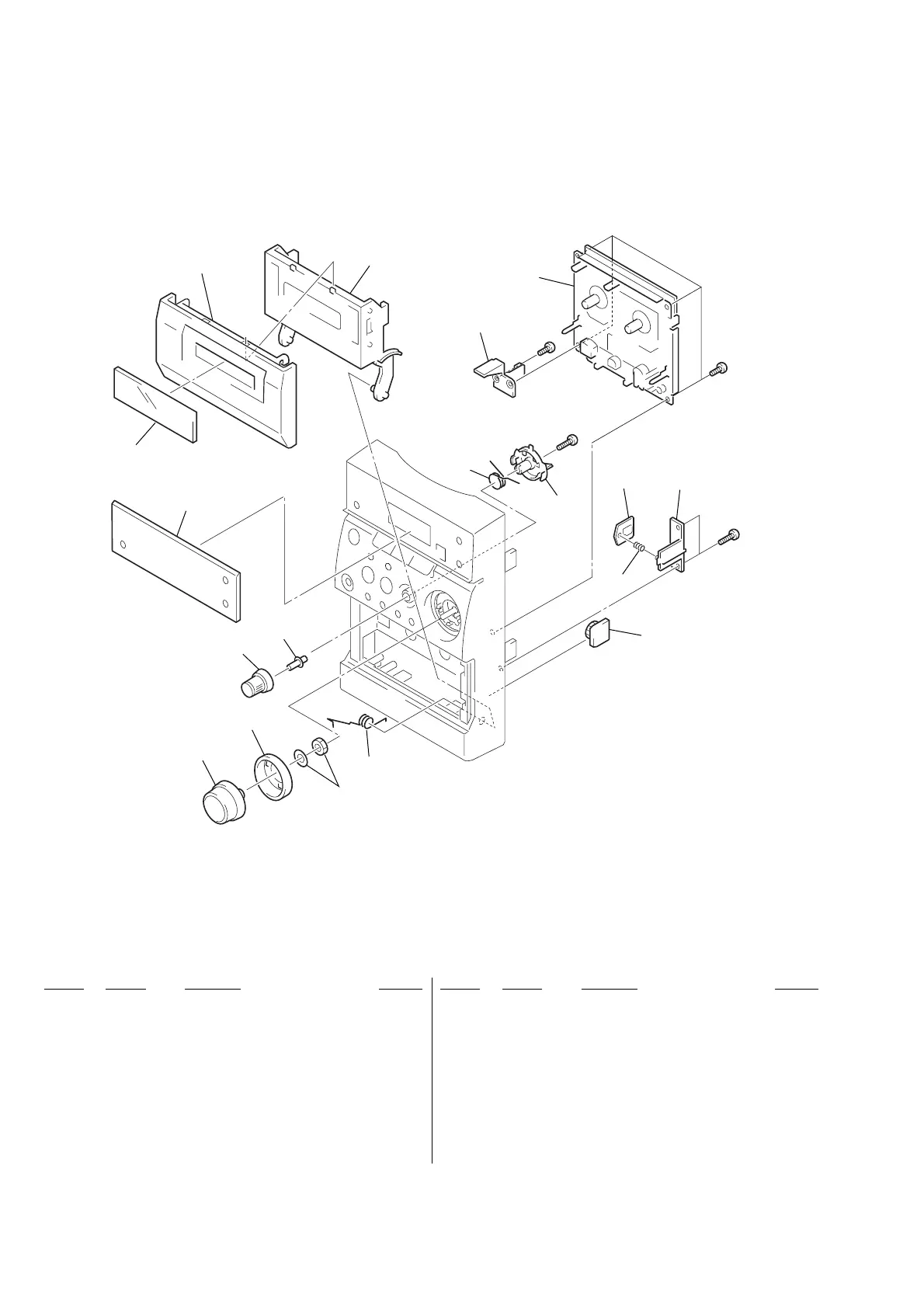

7-2. Front Panel Section -1
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 4-241-113-01 VOL.ROTARY KNOB
53 4-241-112-01 VOL.DECORATION RING
54 4-241-380-01 DISPLAY WINDOW
55 4-236-899-01 DAMPER
56 4-240-240-01 CASS LID WINDOW
57 4-241-383-01 CASS LID
58 4-236-901-01 CASS LID BKT
59 4-236-904-01 CASS LID SPRING
60 4-236-915-01 MAIN PWB MOUNTING BKT (A)
62 4-236-906-01 CASS LID LATCH
63 4-236-905-01 CASS LATCH SPRING
64 4-236-907-01 CASS LID LATCH HOLDER
65 1-796-543-11 DECK, MECH (CFL4318)
73 4-240-261-01 TUNING SWING KNOB
75 4-240-276-01 TUNING KNOB SPRING
76 4-240-258-01 TUNING SWING LEVER
#1 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
#2 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT
#12 7-685-854-04 SCREW +BVTT 2X8 (S)
54
55
64
63
62
56
57
58
59
73
75
76
60
65
51
53
#2
#2
#1
#12
not
supplied
including X303
Ver 1.1 2002.07
