Sony HCD-EP404 - CD Cabinet Section

34
HCD-EP404

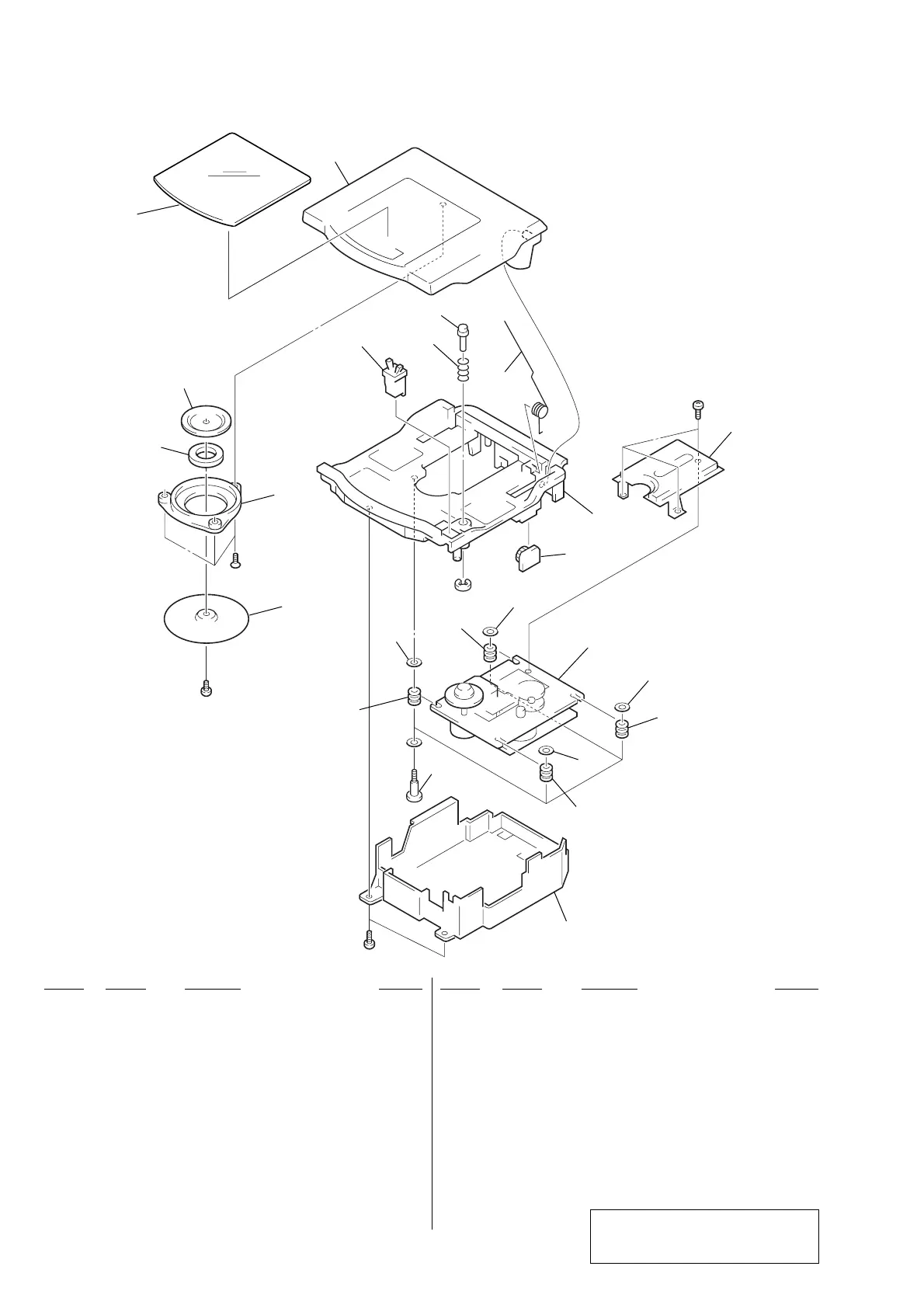

7-4. CD Cabinet Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 4-240-255-01 CD COVER HOUSING
152 4-236-280-01 RUBBER, VIBRATION PROOF (PINK)
153 4-235-991-01 PULLEY SCREW
* 154 3-509-138-00 CLAMP, SPRING
156 4-235-948-01 DISC HOLDER BKT
157 1-471-144-11 MAGNET
158 4-241-109-01 CD LID (T2)
159 4-241-386-01 CD LID WINDOW
160 4-235-970-01 NSX1 PUSH ROD
161 4-235-990-01 CD EJECT SPRING
162 4-235-982-01 CD LID SPRING
163 4-236-899-01 DAMPER
164 4-240-244-01 CD TRAY
165 4-235-949-01 PU COVER
0 166 1-796-189-11 MECH, CD
167 4-236-281-01 RUBBER, VIBRATION PROOF (ORG)
168 4-235-971-01 PLASTIC COVER
169 4-236-860-01 METAL COVER
SW600 1-692-960-21 SWITCH, PUSH (1 KEY) (Z PUSH OPEN/CLOSE)
#6 7-685-504-19 SCREW +BTP 2X6 TYPE2 N-S
#7 7-623-916-21 FIBER WASHER 3.3,SMALL
#8 7-685-233-19 SCREW +KTP 2.6X6 TYPE2NON-SLIT
#9 7-624-106-04 STOP RING 3.0, TYPE -E
#10 7-685-646-14 SCREW +BVTP 3X8 TYPE2 SLIT
151
152
152
153
167
167
154
154
154
154
169
156
157
164
158
159
160
161
162
165
166
163
#7
#10
#9
#8
#6
#6
SW600
168
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
