Sony HCD-EP404 - Front Panel Section -2

33
HCD-EP404
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

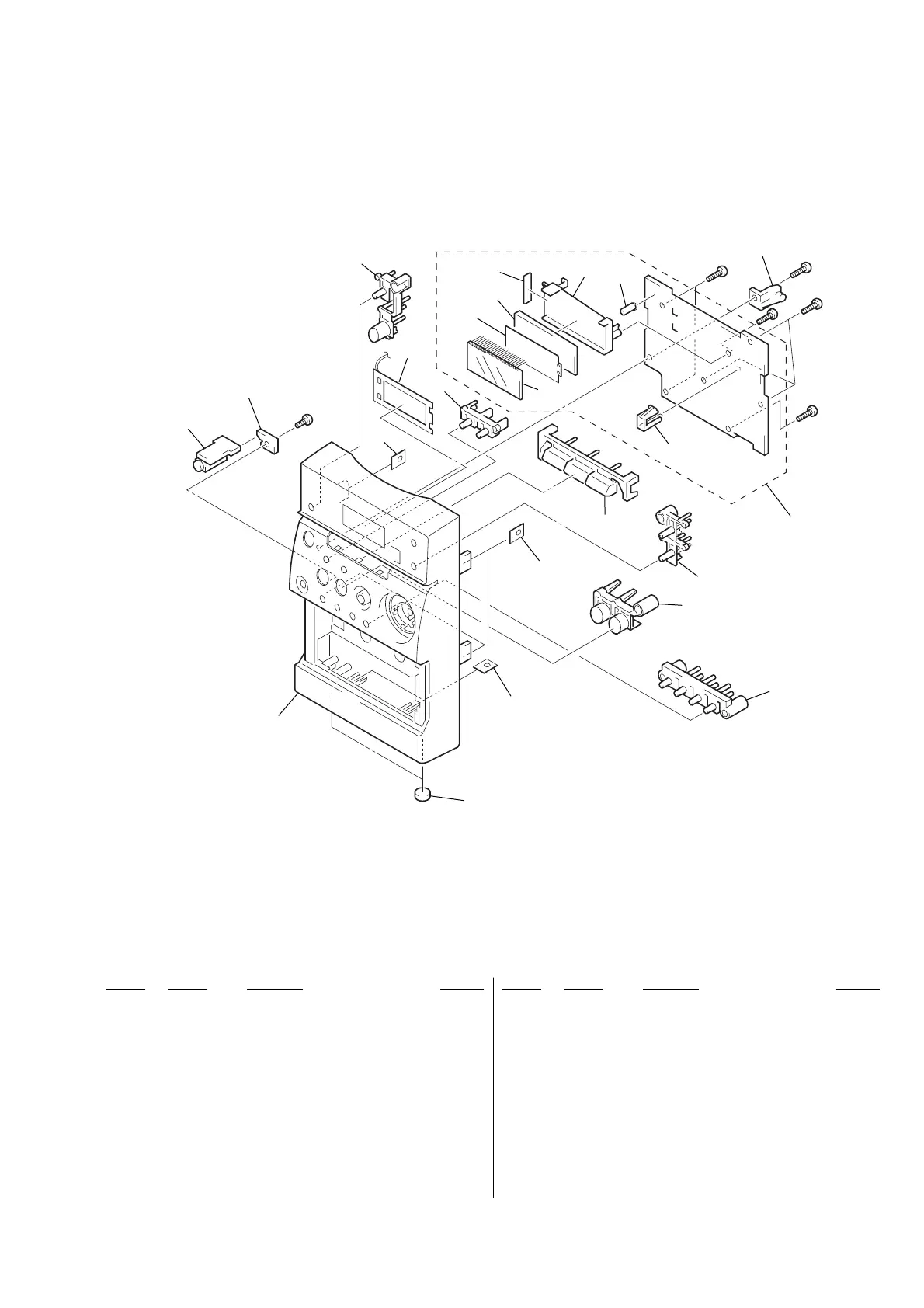

7-3. Front Panel Section -2
115
102
115
115
114
116
120
119
104
105
117
113
108
103
111
124
121
123
122
101
#4
#
4
#4
#4
#4
#11
not supplied
not
supplied
CN301
101 4-235-995-01 RUBBER FOOT
102 4-241-382-01 FRONT PANEL
103 A-4729-694-A HEADPHONE BOARD, COMPLETE
104 4-241-291-01 LCD SHIELDING PAPER
105 4-241-115-01 RECORD/PAUSE KNOB
108 4-241-381-01 PLAY/STOP KNOB
111 A-4729-697-A DISPLAY BOARD, COMPLETE
113 4-240-269-01 BASS/MENU KNOB
114 4-240-271-01 PRESET UP/DOWN KNOB
115 4-235-994-01 PANEL FIXING PLATE
116 4-240-268-01 DISPLAY/POWER KNOB
117 4-240-272-01 FUNCTION KNOB
119 4-240-227-01 LCD DEFUSE SHEET
120 4-240-243-01 LCD LIGHT GUIDE
121 4-240-254-01 LCD BACKLIGHT HOLDER
122 4-246-252-01 REMOTE SENSOR HOLDER
123 4-240-253-01 TIMER LED HOLDER
124 4-236-916-01 MAIN PWB MOUNTING BKT (B)
CN301 1-804-496-11 DISPLAY PANEL, LIQUID CRYSTAL
#4 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S
#11 7-685-135-19 SCREW (+ PTPWH) (2.6X10)
