Sony HCD-EX100 - Printed Wiring Board - REG Section

HCD-EX100
26 26

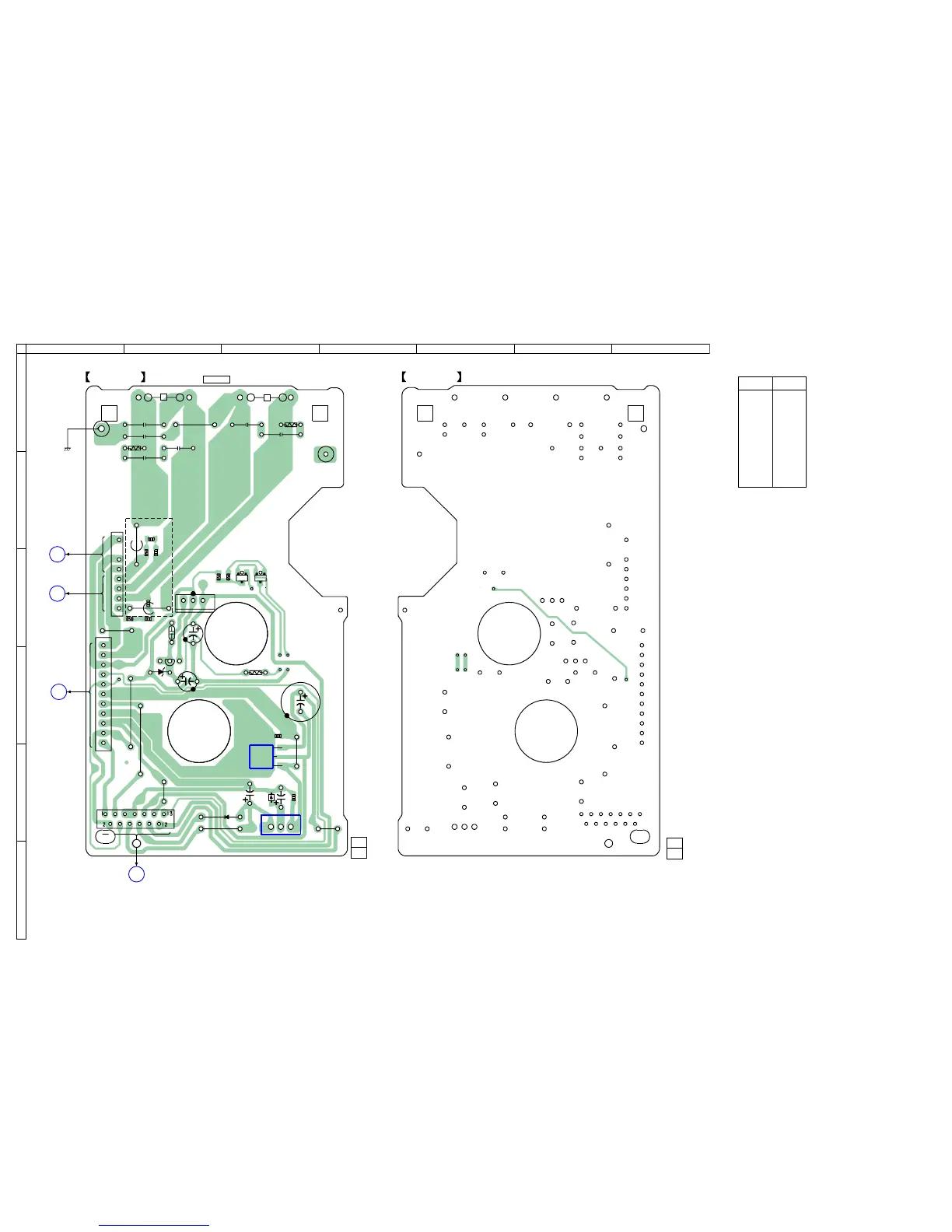

5-11. PRINTED WIRING BOARD – REG SECTION –
• See page 14 for Circuit Boards Location.
REG BOARD (SIDE A)
REG BOARD (SIDE B)
11
(11)
1-682-075-
11
(11)
1-682-075-
E
AMP
BOARD
CN810
(Page 22)
AMP
BOARD
CN802
(Page 22)
F
POWER
BOARD
CN903
(Page 28)
G
C
MAIN BOARD
CN702
(Page 18)
(CHASSIS)
2
3 4 5 6 7
A
1
B
C
D
E
F
D933
Q963
E
E
Q964
IC931
R893
R894
R962
R961
C900
C899
C933
C935
C898
C897
AEP,UK,CH
1
7
1
11
FB891
C892
R892
CLP802
TP801
FB892
C891
JW916
C896
C894
Q961
JW910
JW914
C963
TM801
SPEAKER
L
+
–
R
+
–
JW915
3 2 1
CN901
Q962
S
G
D
B C E
JW912
C962
JW913
C961
C893
CN904
C895
CN902
JW917
D961
JW911
R891
IC932
C934
D934
3
2
1
C936
C937
R963
Ref. No. Location
• Semiconductor
Location
D933 E-3
D934 E-2
D961 D-2
IC931 E-3
IC932 E-3
Q961 C-2
Q962 D-2
Q963 C-3
Q964 C-3
