Sony HCD-EX100 - Chassis Section

37
HCD-EX100

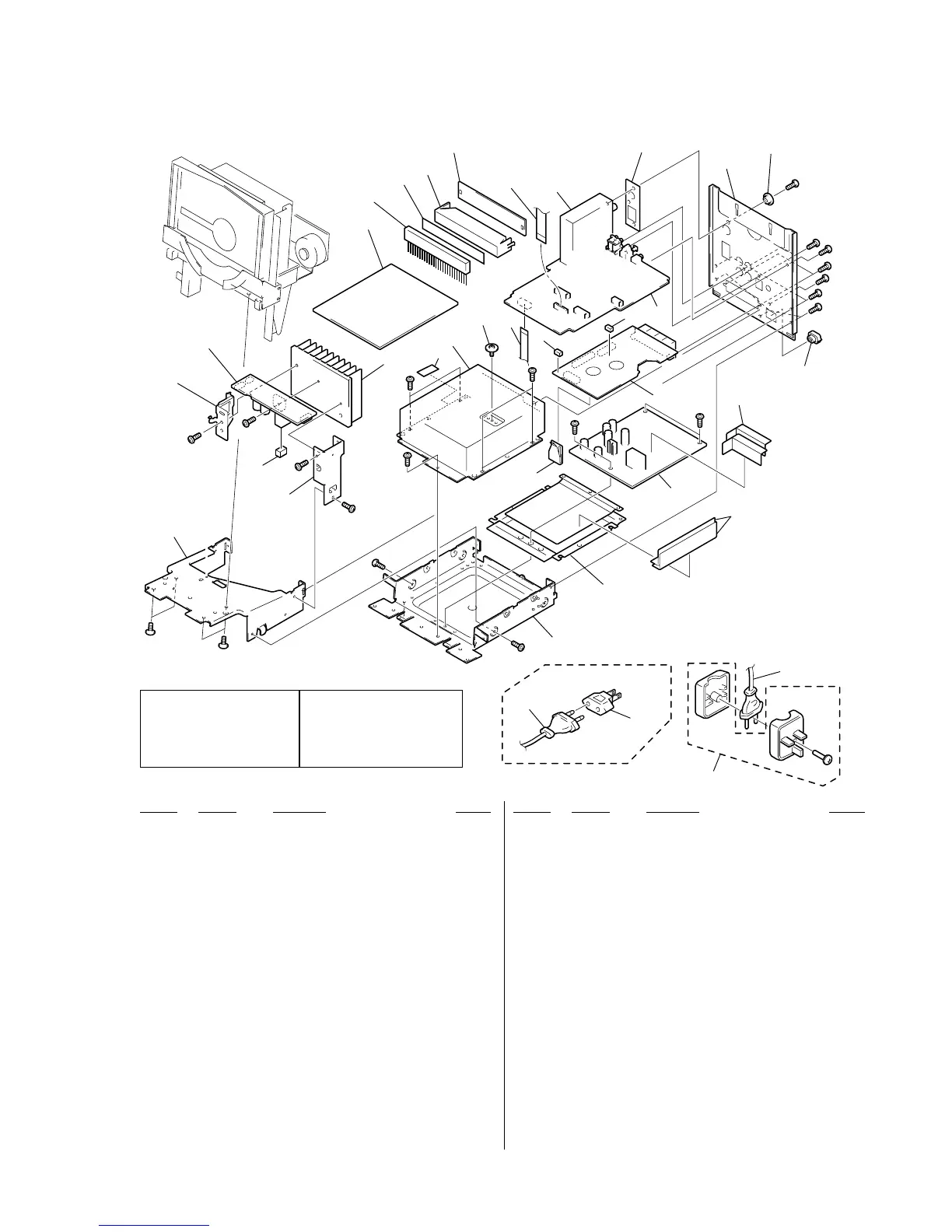

6-2. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
#1
#1
#1
#1
#1
#1
#1
#3
#3
#3
#3
#3
#3
#3
#1
#1
#1
#1
#1
#3
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
54
55
57
58
64
61
62
56
70
67
69
68
51
63
51
59
53
71
65
66
60
60
LCD701
52
70
51 3-314-903-01 CUSHION
52 4-234-982-01 HOUSE, LAMP
53 A-4725-965-A AMP BOARD, COMPLETE (US,CND)
53 A-4725-973-A AMP BOARD, COMPLETE (AEP,UK)
53 A-4725-977-A AMP BOARD, COMPLETE (HK,KR,SP)
53 A-4726-858-A AMP BOARD, COMPLETE (CH)
54 A-4725-964-A POWER BOARD, COMPLETE (US,CND)
54 A-4725-972-A POWER BOARD, COMPLETE (AEP,UK)
54 A-4725-976-A POWER BOARD, COMPLETE (HK,KR,SP)
54 A-4726-857-A POWER BOARD, COMPLETE (CH)
55 A-4725-969-A REG BOARD, COMPLETE (US,CND)
55 A-4725-974-A REG BOARD, COMPLETE (AEP,UK)
55 A-4725-978-A REG BOARD, COMPLETE (HK,KR,SP)
55 A-4726-859-A REG BOARD, COMPLETE (CH)
56 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
* 57 3-703-244-00 BUSHING (2104), CORD
58 4-222-730-01 PANEL, BACK
59 A-4725-962-A MAIN BOARD, COMPLETE (US,CND)
59 A-4725-971-A MAIN BOARD, COMPLETE (AEP,UK)
59 A-4725-975-A MAIN BOARD, COMPLETE (HK,KR,SP)
59 A-4726-856-A MAIN BOARD, COMPLETE (CH)
0 60 1-757-316-11 CORD, POWER (AEP,HK,SP,UK)
0 60 1-769-079-11 CORD, POWER (KR)
0 60 1-782-464-21 CORD, POWER (CH)
0 60 1-783-531-31 CORD, POWER (US,CND)
61 1-682-074-11 LED BOARD
62 1-791-698-11 WIRE (FLAT TYPE) (16 CORE)
63 1-769-973-11 WIRE (FLAT TYPE) (13 CORE)
64 1-693-407-13 TUNER (US,CND)
64 1-693-408-12 TUNER (AEP,UK,HK,CH,KR,SP)
0 65 1-569-008-21 ADAPTOR, CONVERSION (HK,SP)
0 66 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK,UK)
* 67 4-028-047-01 HEAT SINK, CLIP TYPE
68 4-224-741-01 INSULATED PLATE (POWER.2)
69 4-224-740-01 INSULATED PLATE (POWER.1)
* 70 3-344-749-01 RETAINER (B)
71 3-561-427-11 CUSHION
LCD701 1-804-474-11 DISPLAY PANEL, LIQUID CRYSTAL
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
