HCD-EX100
SECTION 6
EXPLODED VIEWS

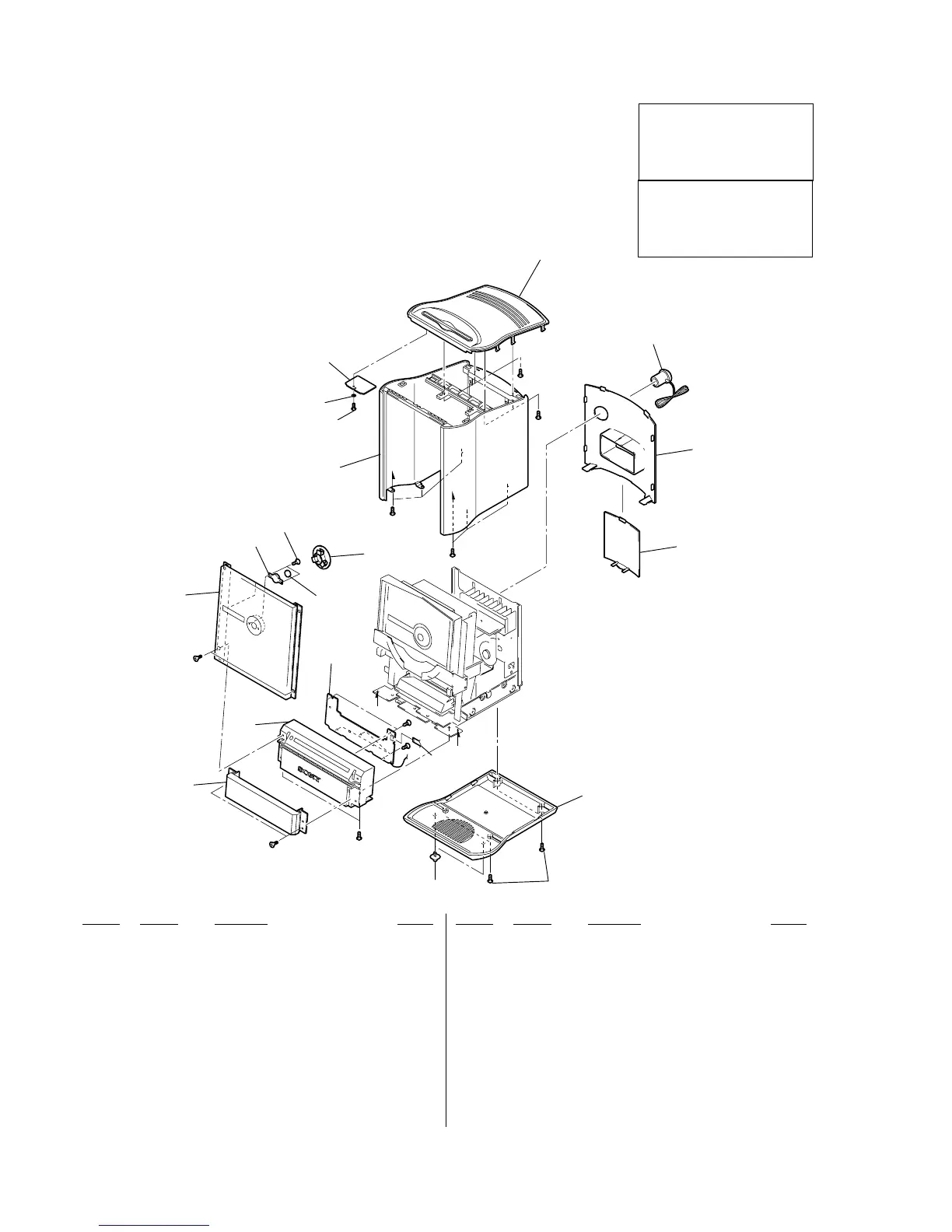

6-1. FRONT PANEL AND CASE SECTION
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)
Â
Parts color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
SP : Singapore model
KR : Korea model
CH : Chinese model
HK : Hong Kong model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
B
A
B
A
1
3
6
8
7
9
10
11
12
5
7
4
2
16
15
14
#1
#1
not supplied
not supplied
#5
#5
#1
#1
#5
#5
#2
#2
13
1 X-4953-872-1 WINDOW (GRASS LOWER) ASSY
2 X-4954-149-2 PANEL ASSY, FRONT (US,CND,CH,HK,KR,SP)
2 X-4954-402-1 PANEL ASSY, FRONT (AEP,UK)
3 X-4953-871-1 WINDOW ASSY-U, GLASS (EXCEPT AEP)
3 X-4953-873-1 WINDOW (GLASS UPPER) ASSY (AEP)
4 4-234-985-01 YOKE (RG)
5 4-222-703-01 MAGNET
6 4-222-709-01 YOKE (ST)
7 3-927-664-01 SCREW (2X3)
8 4-234-965-01 CASE (US,CND)
8 4-234-965-11 CASE (AEP,CH,HK,KR,SP,UK)
9 1-682-076-11 EJECT BOARD
10 X-4954-403-1 COVER (TOP) ASSY (US,CND)
11 1-754-208-11 ANTENNA, FM (US,CND)
11 1-754-209-11 ANTENNA, FM (AEP,UK,CH,HK,KR,SP)
12 4-234-976-01 COVER (BACK) (US,CND)
12 4-234-976-11 COVER (BACK) (AEP,CH,HK,KR,SP,UK)
13 4-234-977-01 COVER (PIN JACK) (US,CND)
13 4-234-977-11 COVER (PIN JACK)(AEP,CH,HK,KR,SP,UK)
14 4-234-981-01 FOOT
15 1-769-889-11 WIRE (FLAT TYPE) (7 CORE)
16 1-682-069-11 PANEL BOARD
