HCD-FLX5D/FLX7D
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 1-684-692-11 VIDEO BOARD
352 1-792-099-11 WIRE (FLAT TYPE) (17 CORE)
353 1-590-218-11 WIRE (FLAT TYPE) (11 CORE)
354 A-4730-184-A TRANS BOARD, COMPLETE (FLX5D: TH)
354 A-4730-186-A TRANS BOARD, COMPLETE (FLX5D: KR)
354 A-4730-190-A TRANS BOARD, COMPLETE
(FLX5D: E2, E3, E15, EA, SP, MY, PH/FLX7D)
354 A-4730-203-A TRANS BOARD, COMPLETE (FLX5D: AUS)
355 4-900-386-01 SCREW
358 1-693-603-31 TUNER (FM/AM) (EXCEPT FLX5D: KR)
358 1-693-605-11 TUNER (FM/AM) (FLX5D: KR)
359 A-4730-194-A SUB TRANS BOARD, COMPLETE (FLX5D: KR)
359 A-4730-199-A SUB TRANS BOARD, COMPLETE
(FLX5D: E2, E3, E15, EA, SP, MY, PH/FLX7D)
359 A-4730-206-A SUB TRANS BOARD, COMPLETE (FLX5D: AUS)
359 A-4730-220-A SUB TRANS BOARD, COMPLETE (FLX5D: TH)
0F913 1-533-472-12 FUSE, GLASS TUBE (DIA. 5) (5A/250V)
(FLX5D: E2, E3, E15, EA, SP, MY, PH/FLX7D)
0F914 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0F915 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0F916 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0F917 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0F918 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/250V)
0F919 1-533-472-12 FUSE, GLASS TUBE (DIA. 5) (5A/250V)
0T911 1-437-800-21 TRANSFORMER, POWER
(EXCEPT FLX5D: EA/FLX7D: EA)
0T911 1-437-801-21 TRANSFORMER, POWER
(FLX5D: EA/FLX7D: EA)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

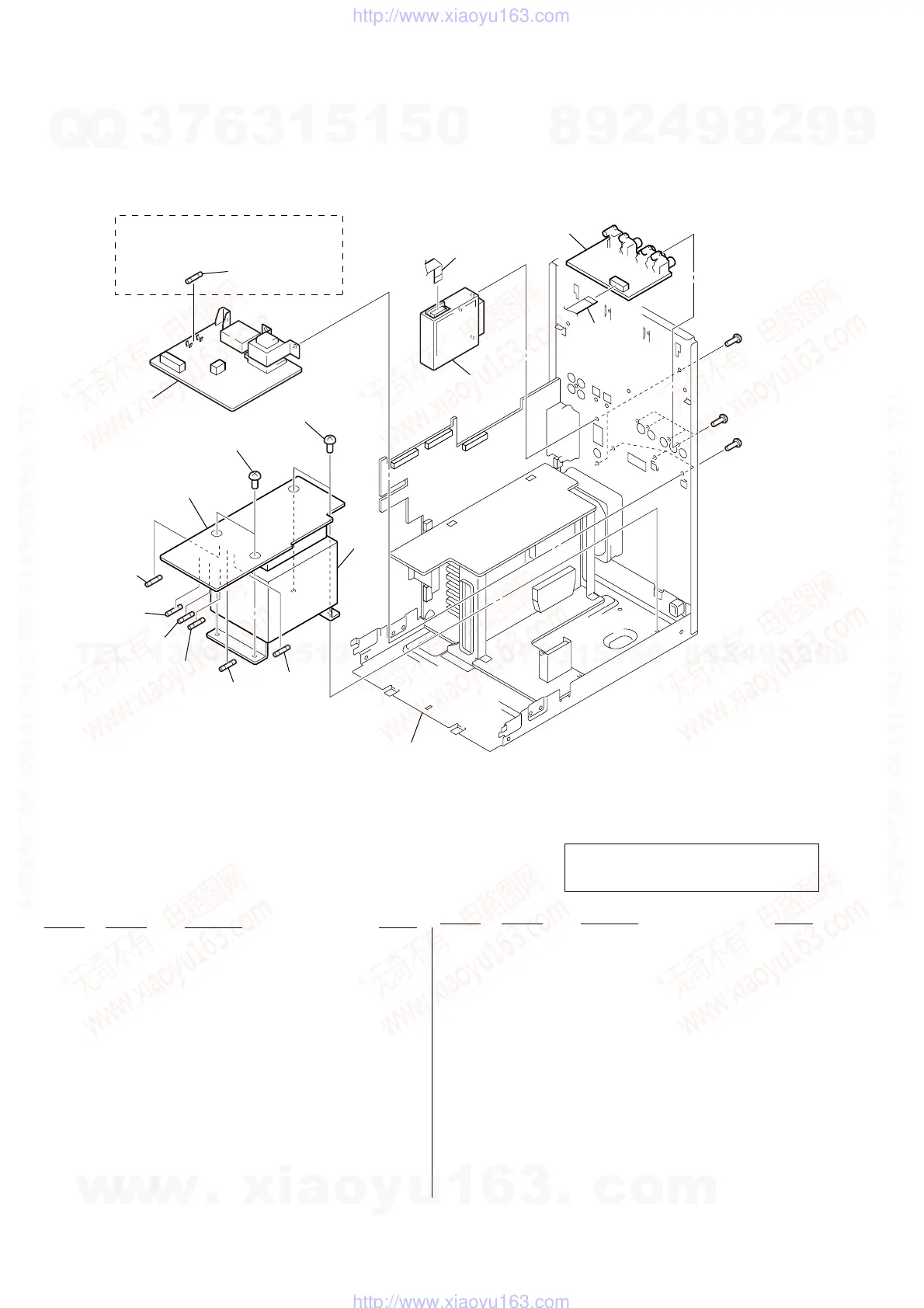

8-7. POWER TANSFORMER SECTION
354
355
355
359
358
352
351
353
CENTER SW AMP/FRONT REAR AMP boards section
T911
F919
F918
F915
F917
F916
F914
F913
#1
#1
#1
(FLX5D: E2, E3, E15, EA, SP, MY, PH/
FLX7D)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
