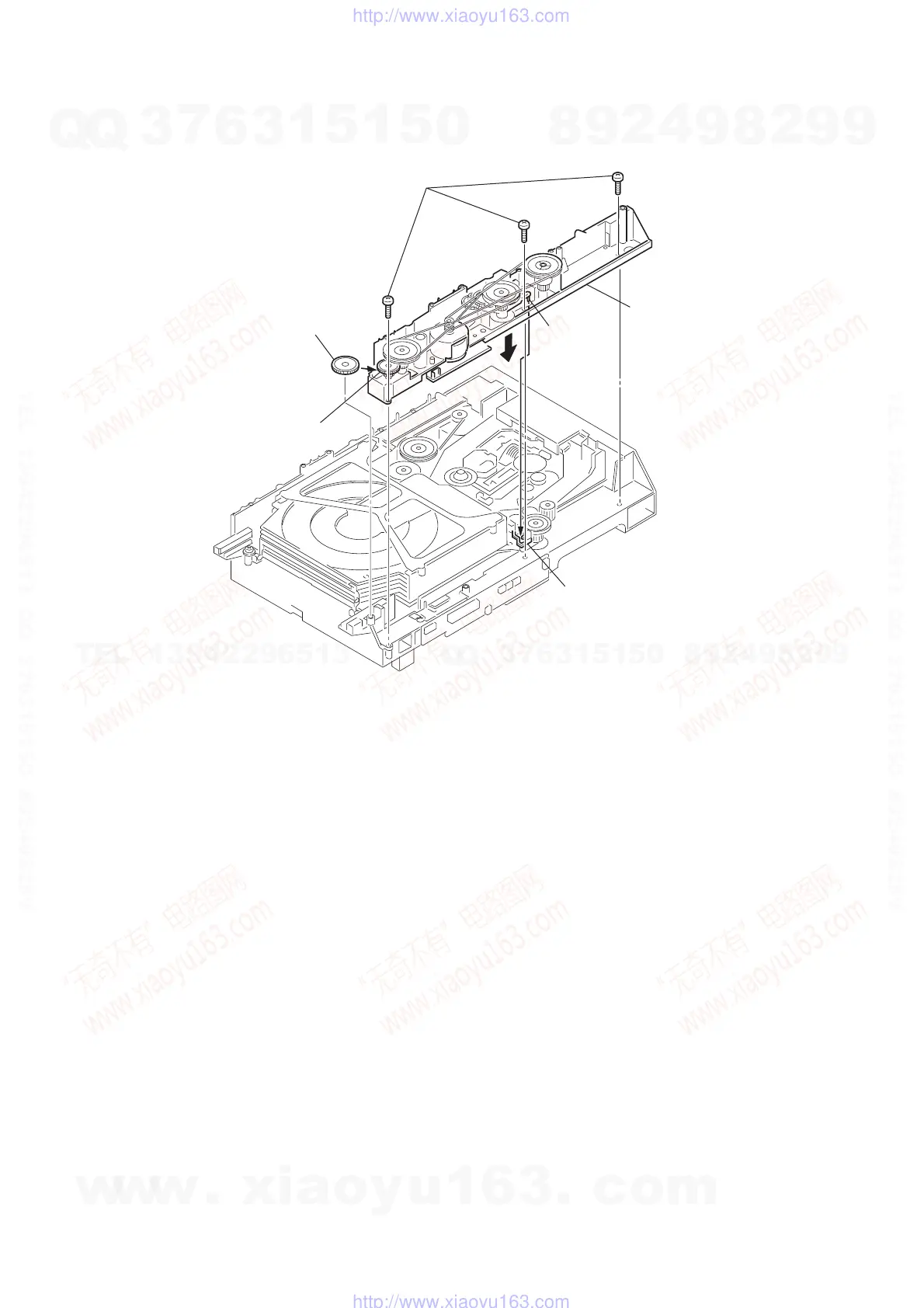

3 three screws
(BVTP M2.6)
2 Insert the gear (eject)
under the gear (LD
deceleration).
1 Insert the portion A of
chassis (mold B) section
into the portion B of
slider (selection).
gear (LD deceleration)
portion A
portion B of
slider (selection)
4-5. CHASSIS (MOLD B) SECTION INSTALLATION
