17
HCD-FLX5D/FLX7D

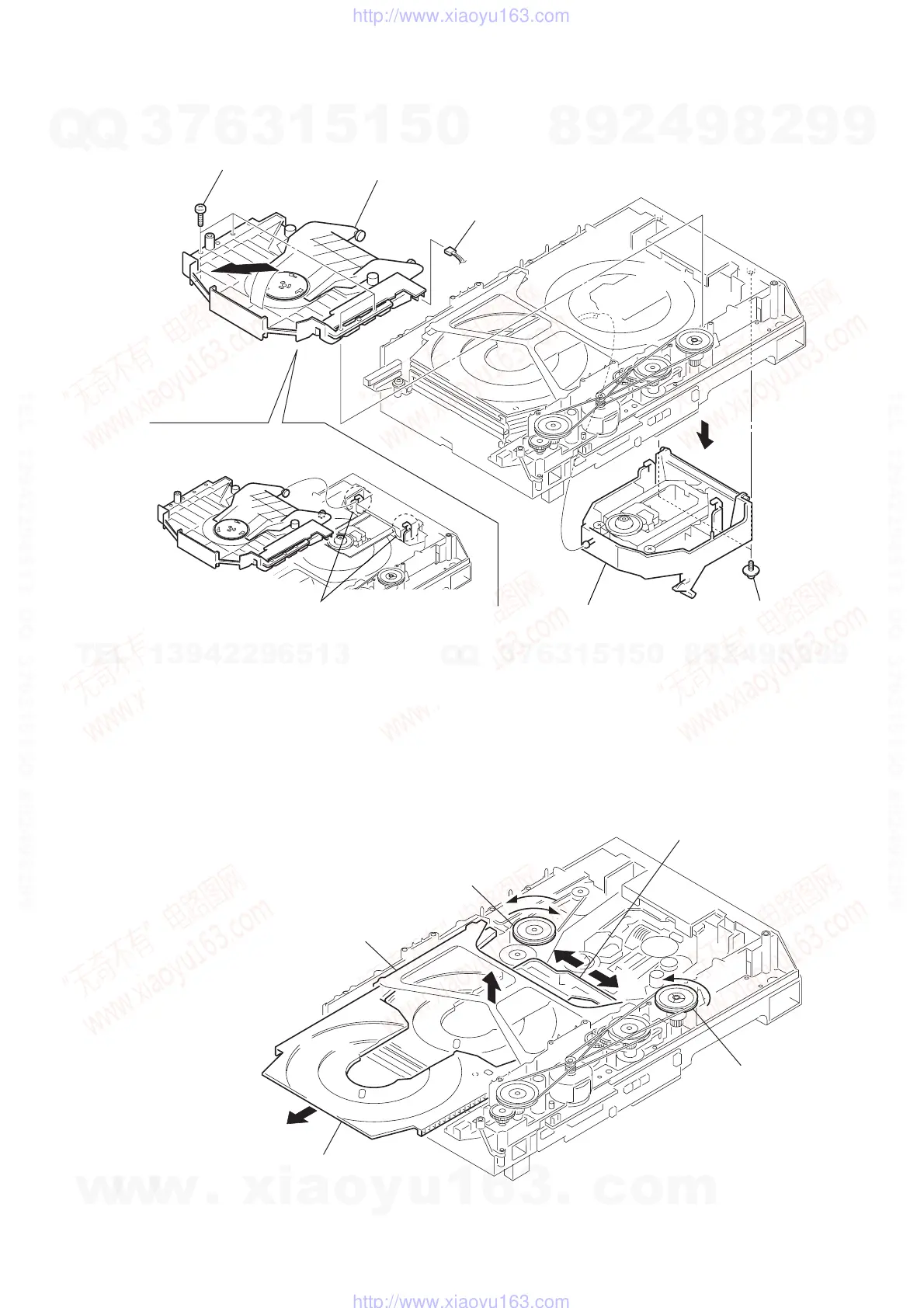

3-11. BASE UNIT (DVBU14)
6
base unit
(DVBU14)
5
two screws
(PTPWH M2.6
1
connector
(CN710)
4
magnet assy
3
two hooks
2
four screws
(BTTP M2.6)
3-12. TRAY (SUB)
A
B
pully (LD)
stocker section
tray (sub)
slider (selection)
pully (mode)
1
Rotating the pulley (LD), shift the slider (selection) in the arrow
A
direction.
2
Rotating the pulley (mode) in the arrow direction, adjust the tray (sub) to be removed.
3
Rotating the pulley (LD), shift the slider (selection) in the arrow
B
direction.
4
Rotating the pulley (mode) in the arrow direction, remove the tray (sub) to be removed.
