Sony HCD-FLX5D - SUB TRANS Board; Back Panel Section

19
HCD-FLX5D/FLX7D

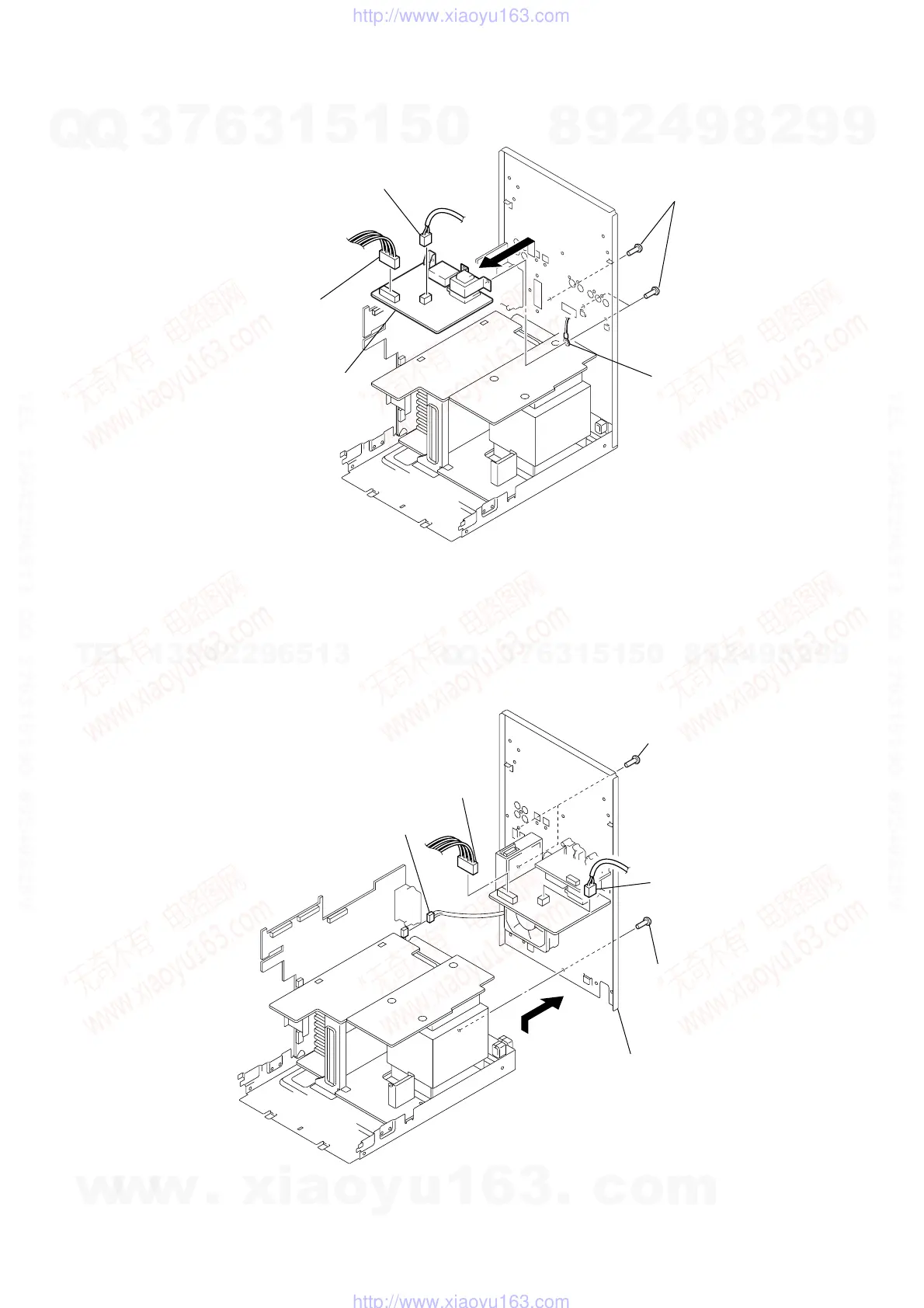

3-15. SUB TRANS BOARD
2 three screw
s
(BVTP3 × 8)
1 connector
(CN902)
1 connector
(CN901)
5 SUB TRANS board
4 ground termina
l
3
3-16. BACK PANEL SECTION
2 two screws
(BVTP3 × 8)
1 connector
(CN902)
4 connector
(CN809)
5 back panel section
2 screw (BVTP3 × 8
)
1 connector
(CN901)
3
