HCD-GN800

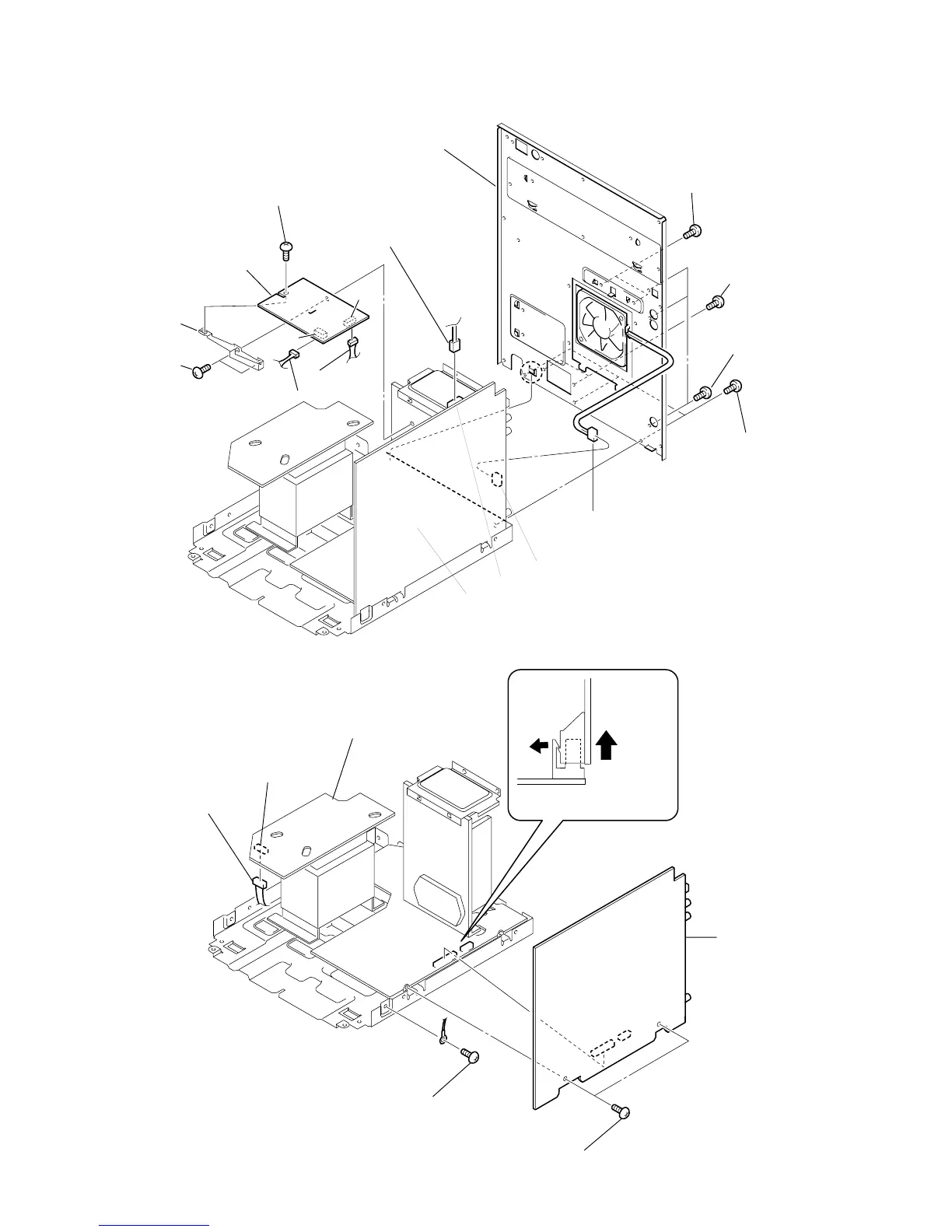

3-9. SUBWOOFER BOARD, REAR PANEL
3-10. MAIN BOARD
3 Three screws
(+BVTP3 x 10
)
2 Two screws
(+BVTP3 x 10
)
1 Two screws
(+BVTT3 x 6)
4 Three screws
(+BVTP3 x 10)
5 Connector
CN851
MAIN board
qd Rear panel
with fan
0 Screw
(+BVTP3 x 10)
6 Connector
8 Connector
CN303
CN305
7 Connector
qs SUBWOOFER board
qa Bracket (IC)
9 Two screws
(+BVTP3 x 16)
CN1803
3 Two screws
(+BVTP3 x 10)
2 Screw
(+BVTP3 x 10)
1 Connector
6 MAIN boar
d
MAIN board
(CN901, 902)
POWER AMP board
(CN503, 504)
5
4
CN998
TRAN board
